Oil Pressure Gauge: Testing and Inspection
Test D: Oil Pressure Reads Inaccurately.:

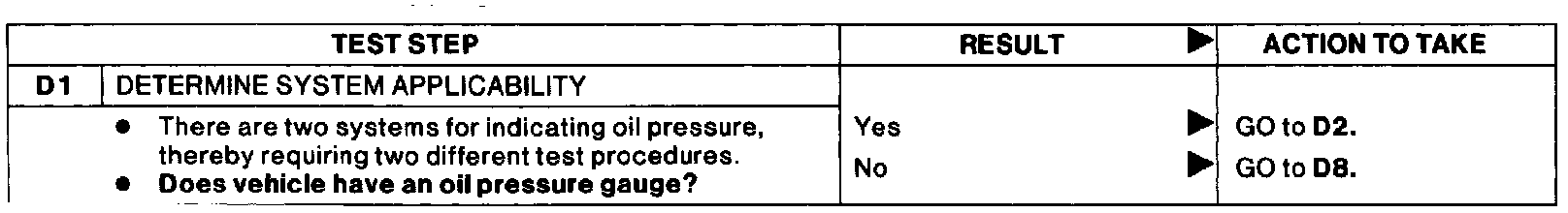

Test D1
Test D: Oil Pressure Reads Inaccurately.:

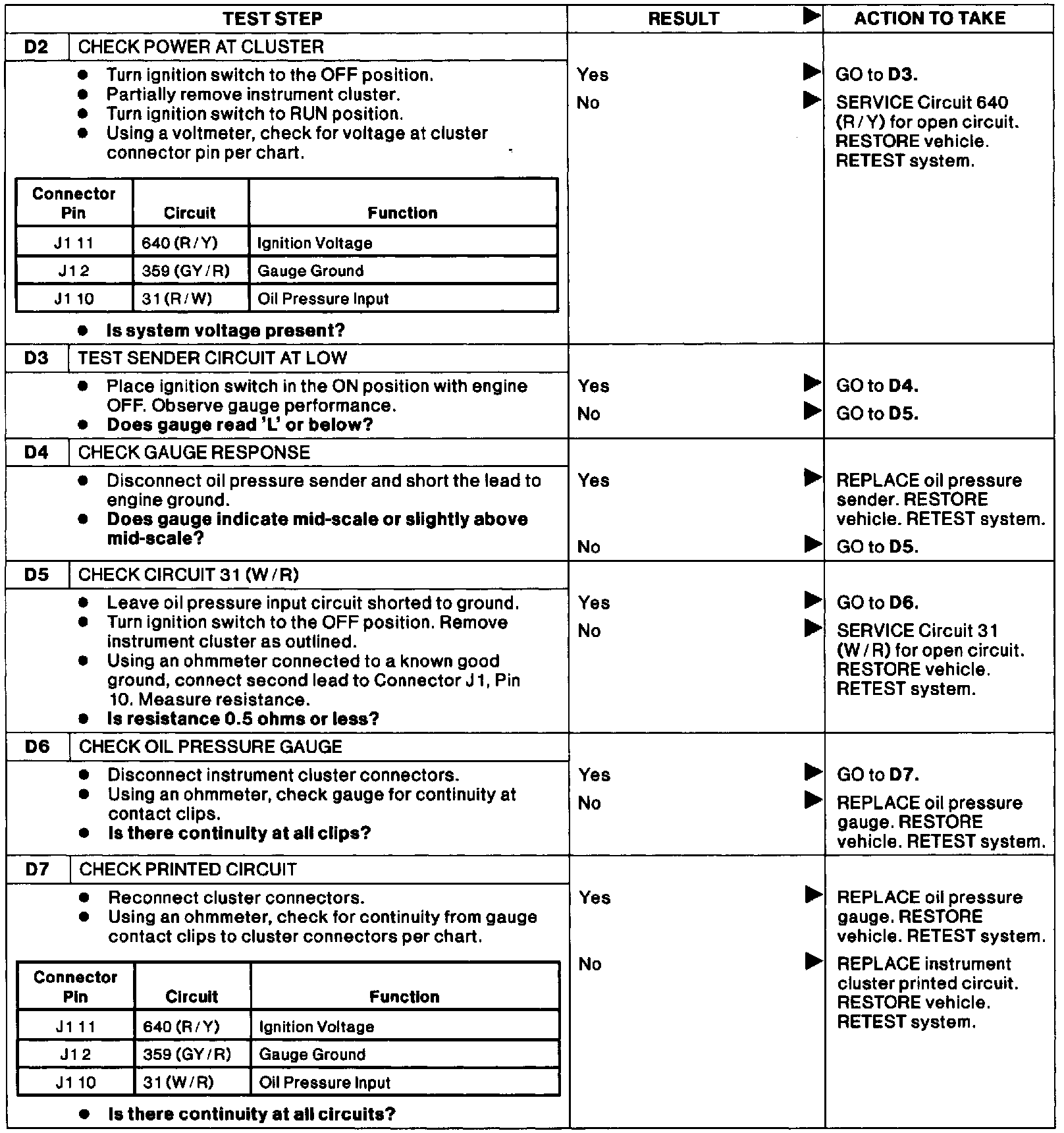

Test D2-D7
Test D: Oil Pressure Reads Inaccurately.:

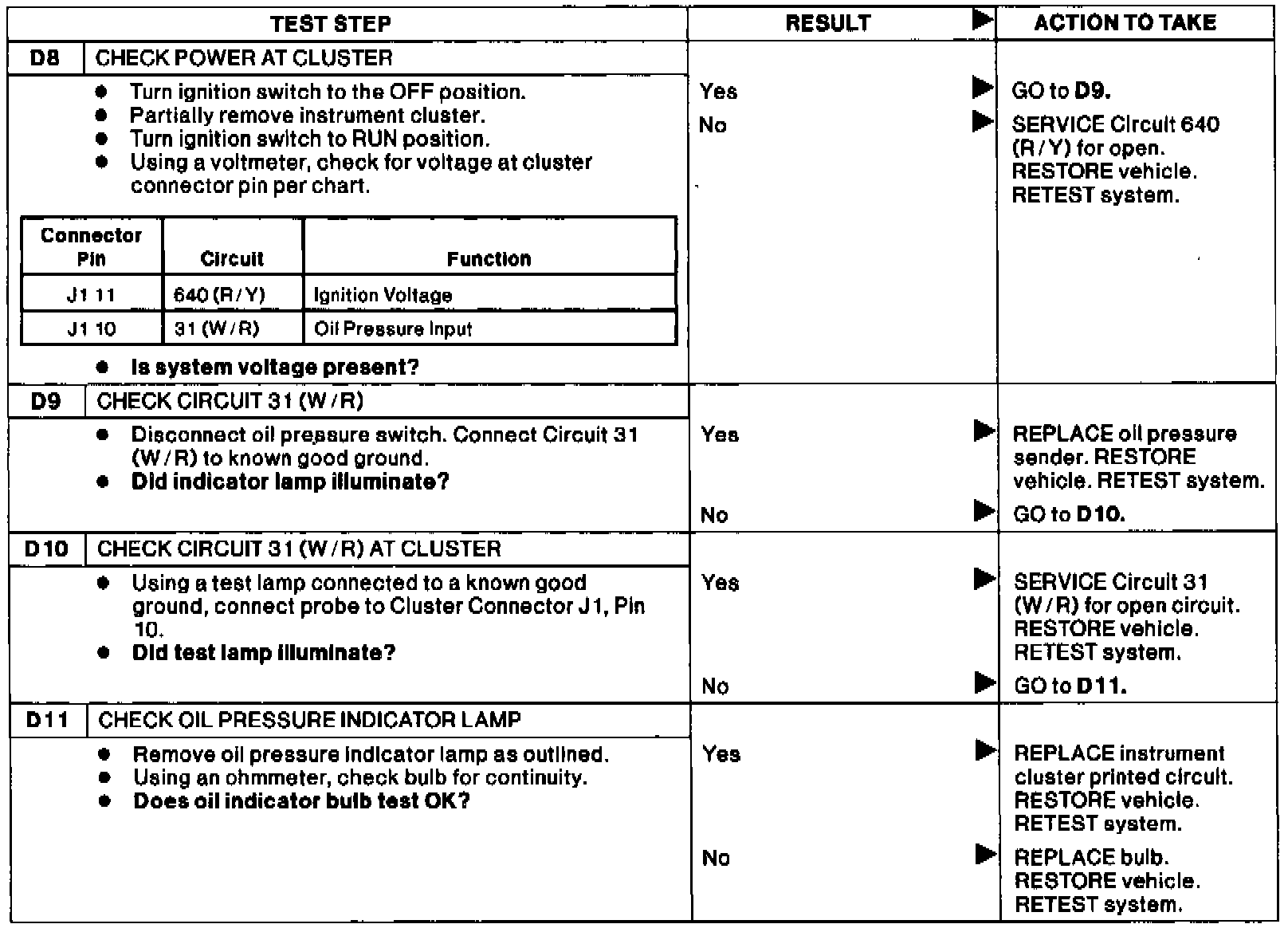

Test D8-D11
