Temperature Gauge: Testing and Inspection

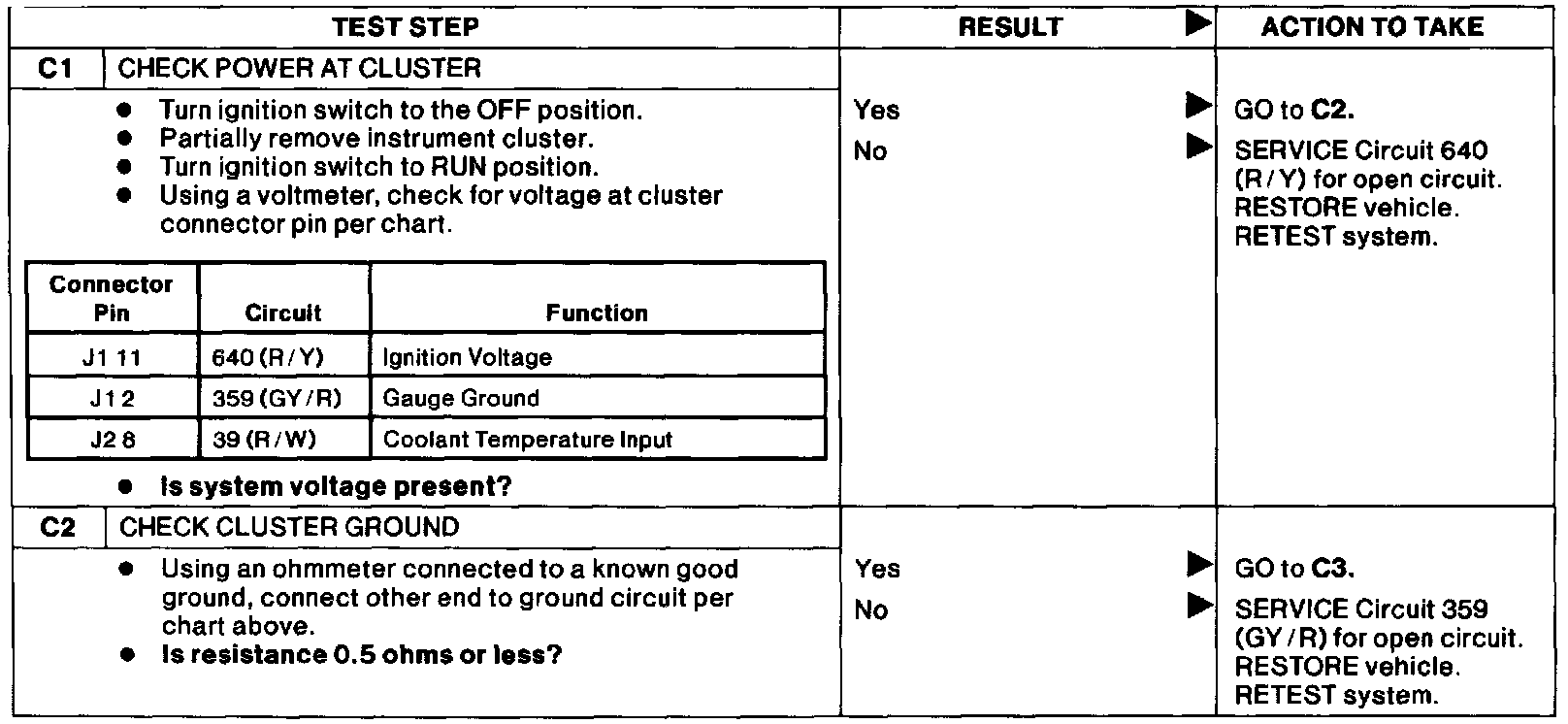

Test C: Coolant Temperature Always Reads Inaccurately.:
Test C1-C2

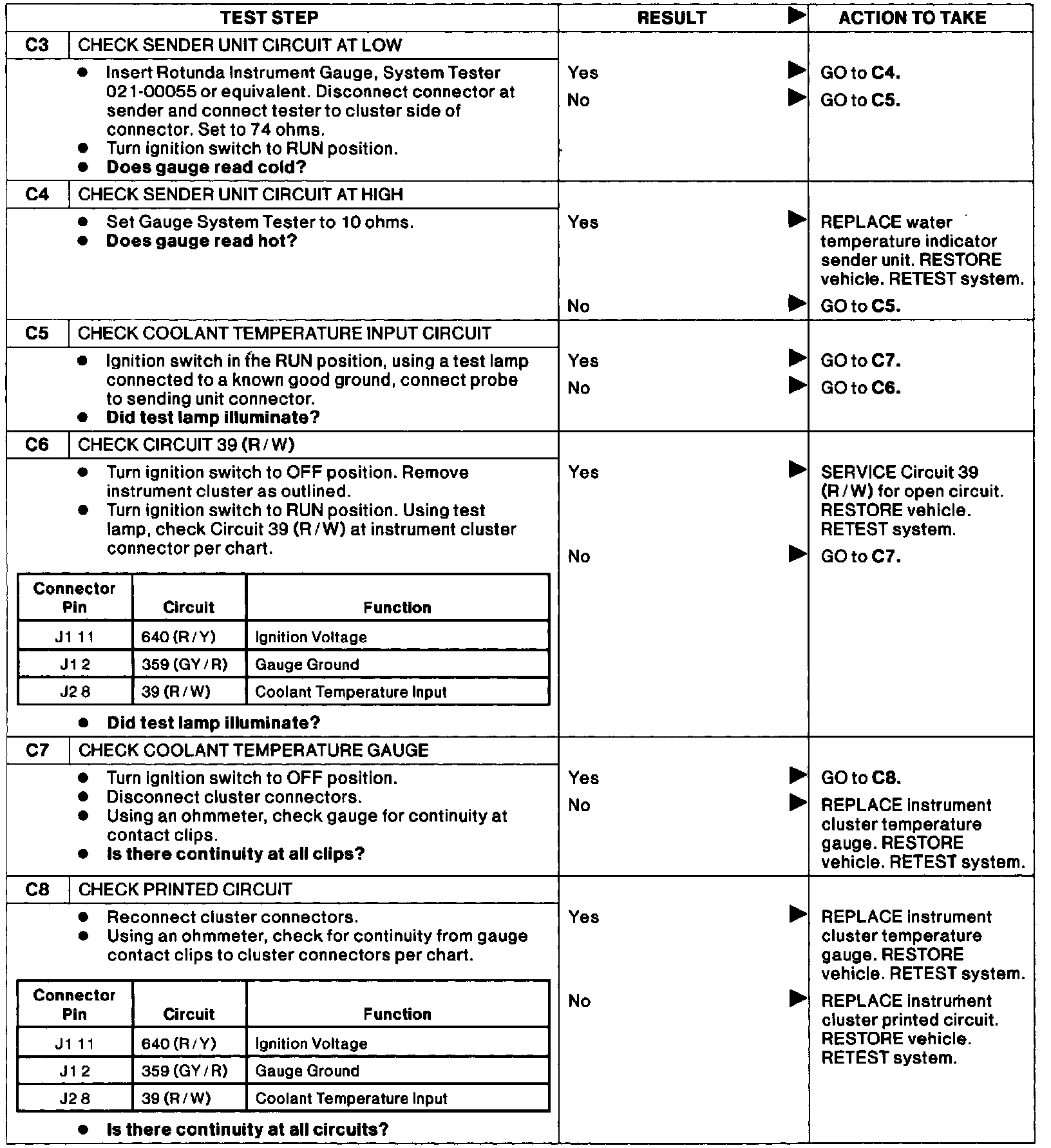

Test C: Coolant Temperature Always Reads Inaccurately.:
Test C3-C8
