Home >> Mercury >> 1994 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic )

Suspension Control ( Automatic - Electronic )

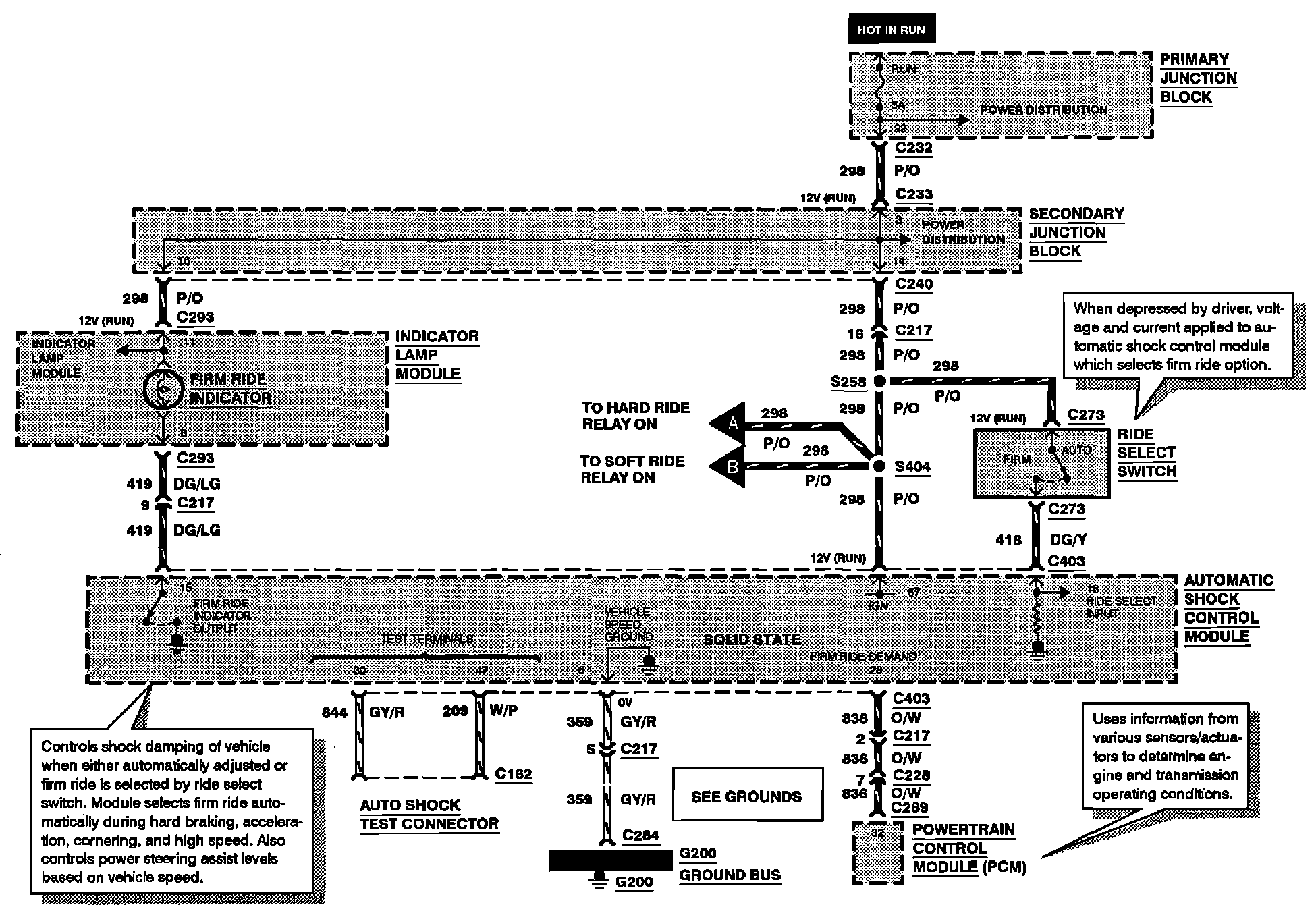

Programmable Ride Control:

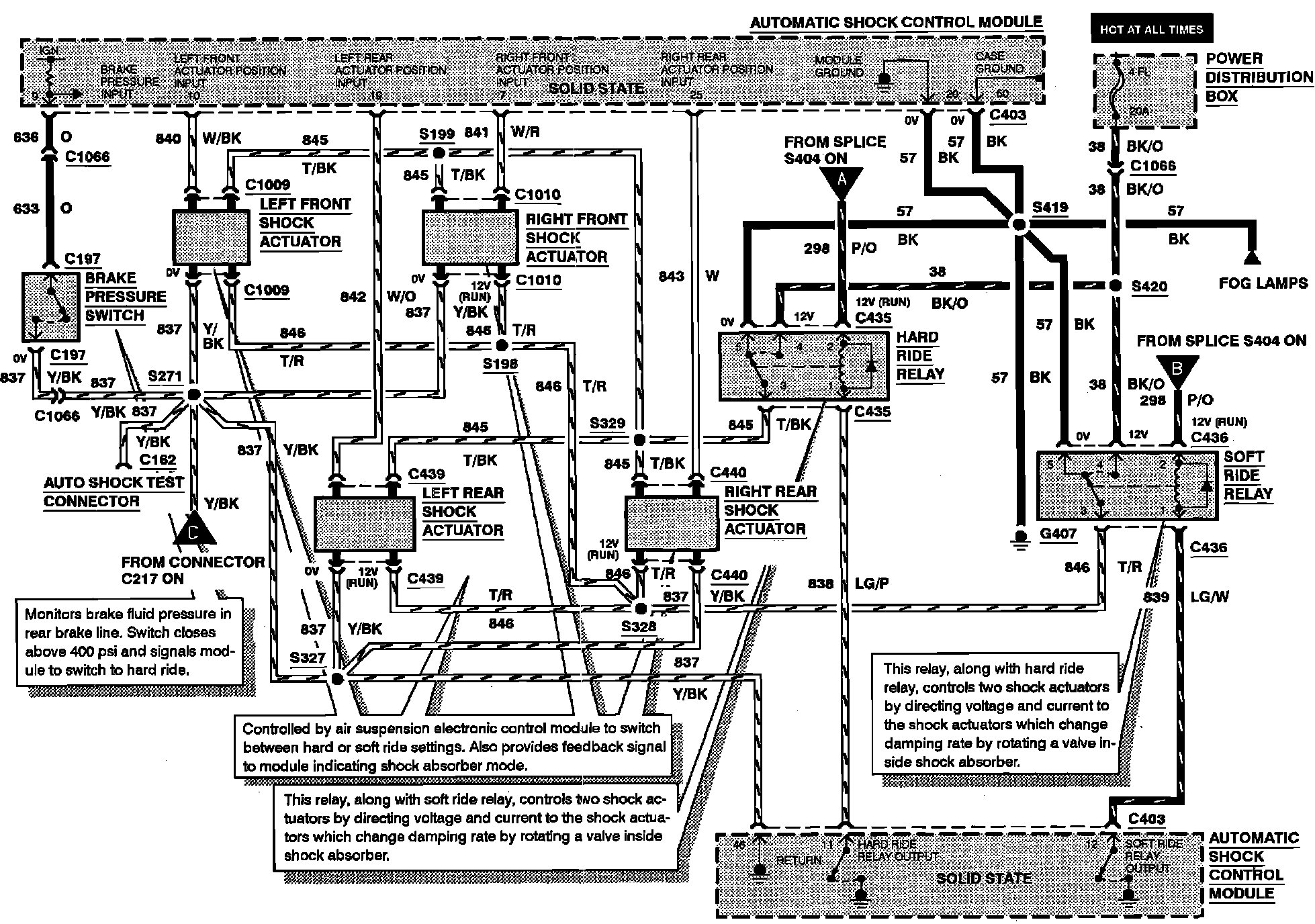

Programmable Ride Control:




Programmable Ride Control:
