Home >> Mercury >> 1994 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> With Programmable Ride Control

With Programmable Ride Control

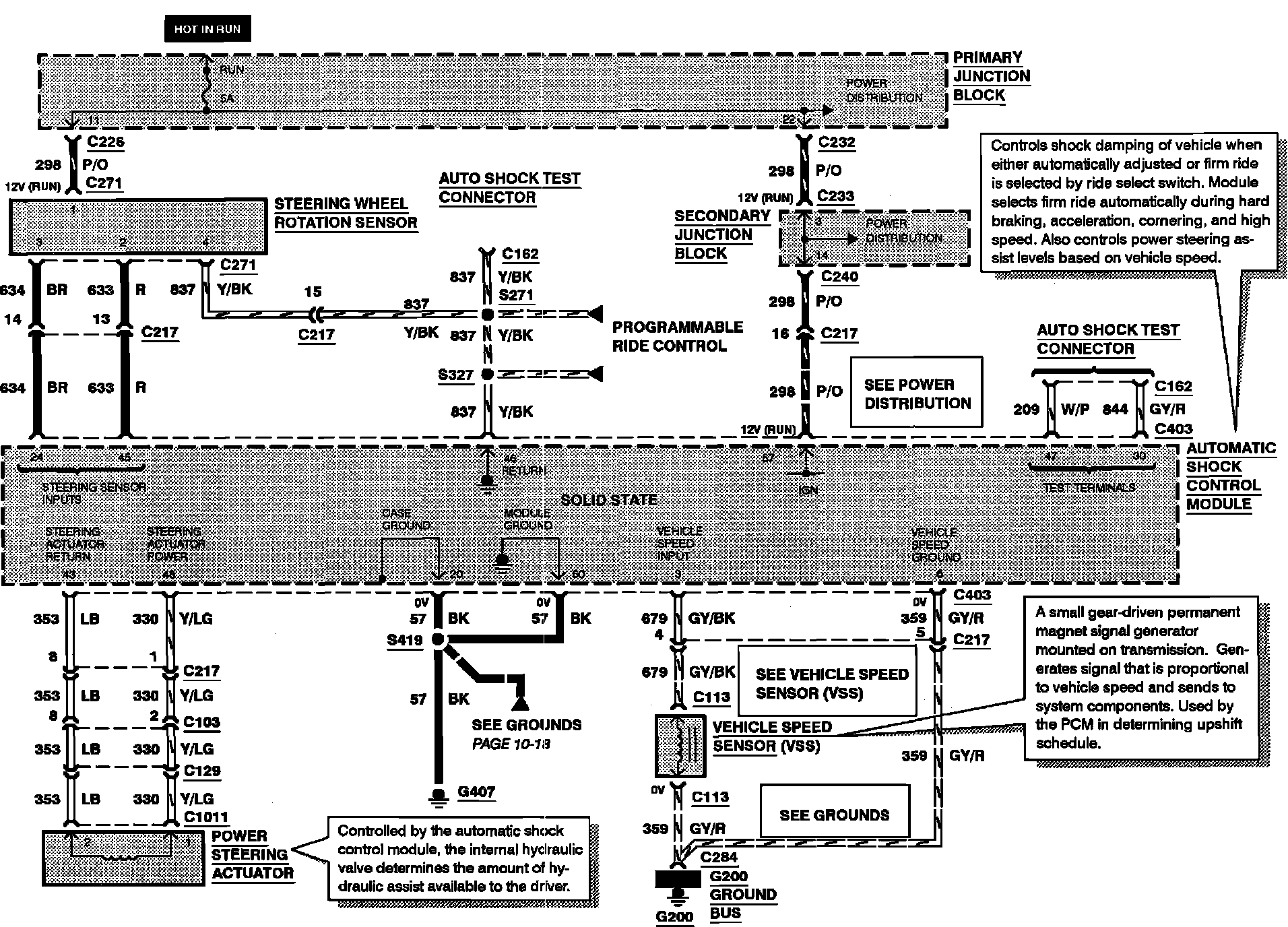

Electric Variable Orifice (EVO) Power Steering System:
