Home >> Mercury >> 1994 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio AM/FM Stereo Without Premium Sound

Radio AM/FM Stereo Without Premium Sound

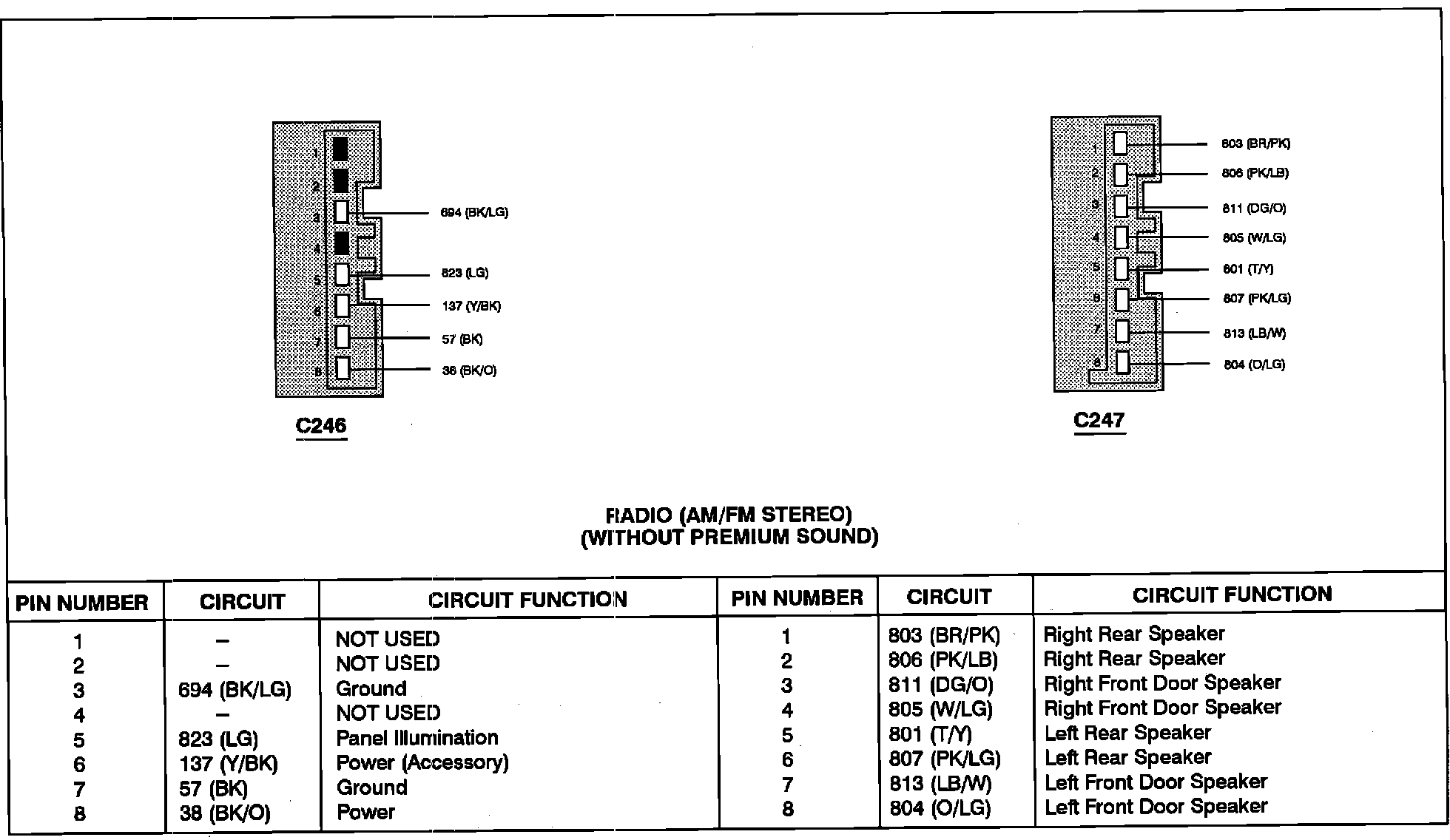

Radio (AM/FM Stereo Without Premium Sound):
