Ignition Control Module (ICM)

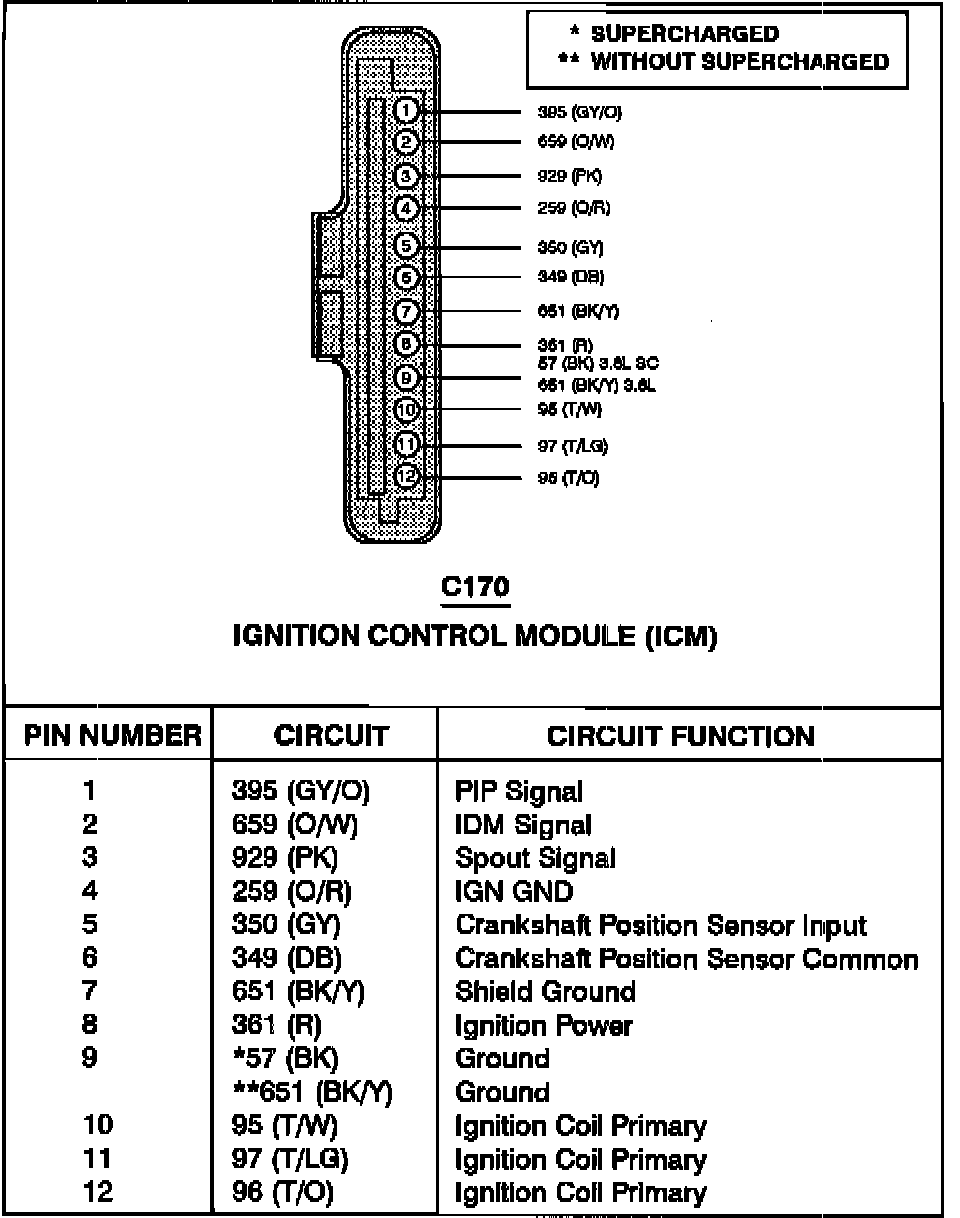

CALIFORNIA


Ignition Control Module (ICM):

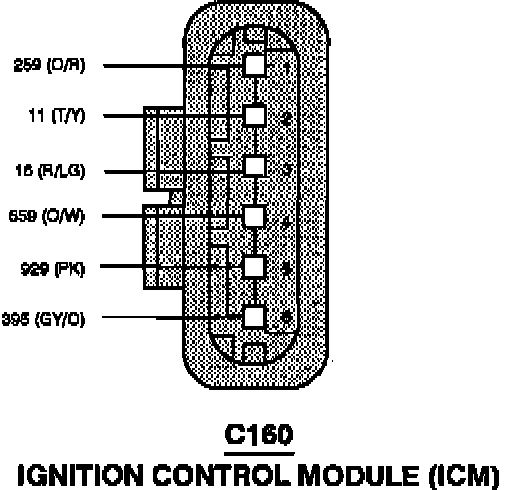

FEDERAL


Ignition Control Module (ICM):
