F Brake Warning Indicator ON
>>
F3 Check For Ground Concern
F3 Check For Ground Concern

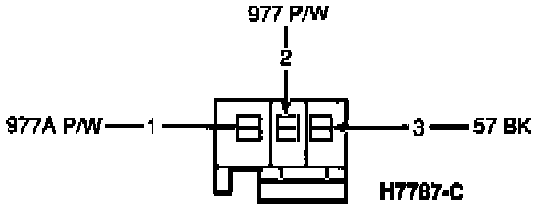

Connector:
-
Check for grounded wire harness, circuit 977.
-
Is wire harness grounded?
YES --
Service or replace cable harness circuit 977.
NO --
Reverify
BRAKE warning indicator
ON.
