Home >> Mercury >> 1994 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats

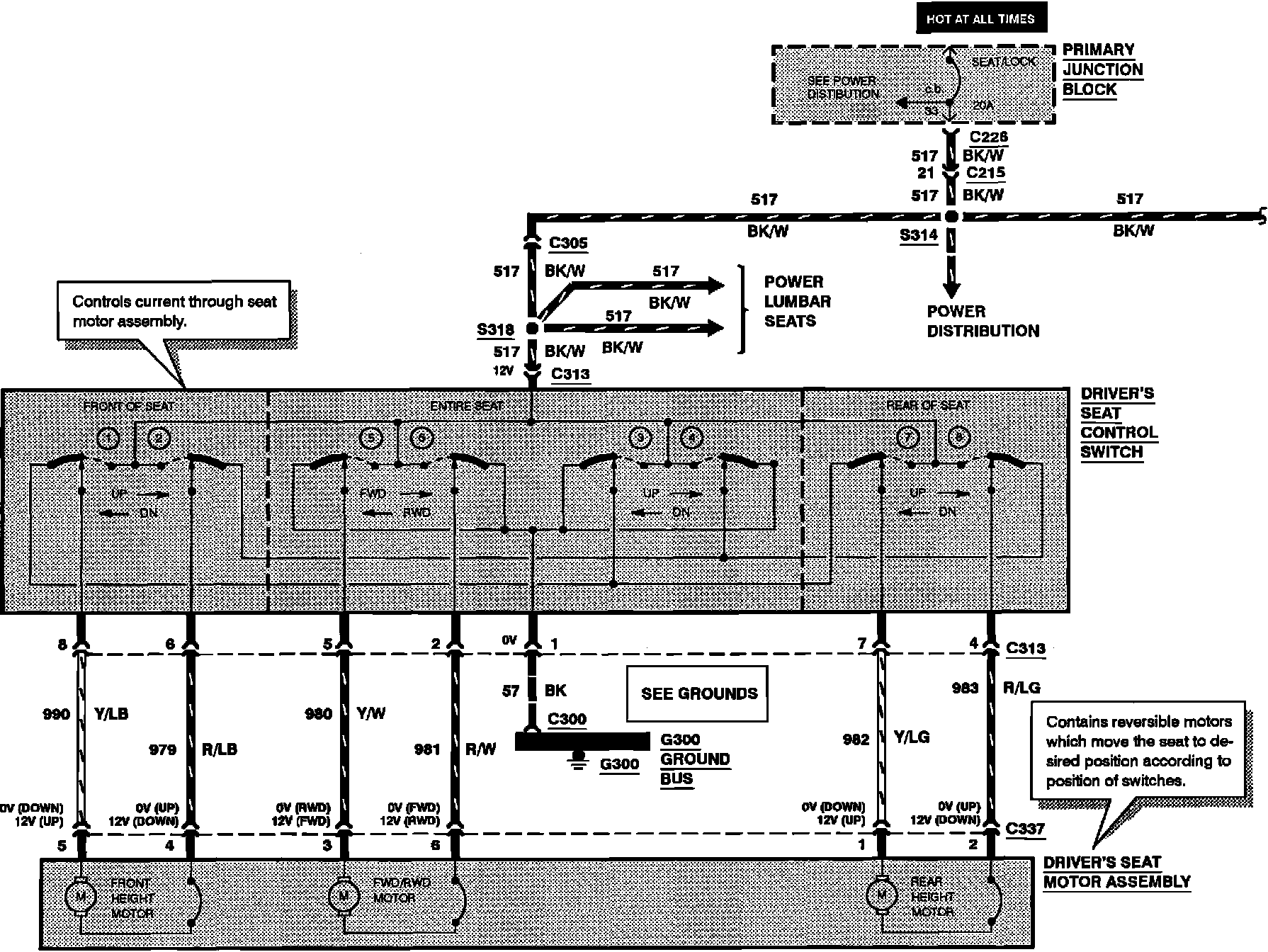

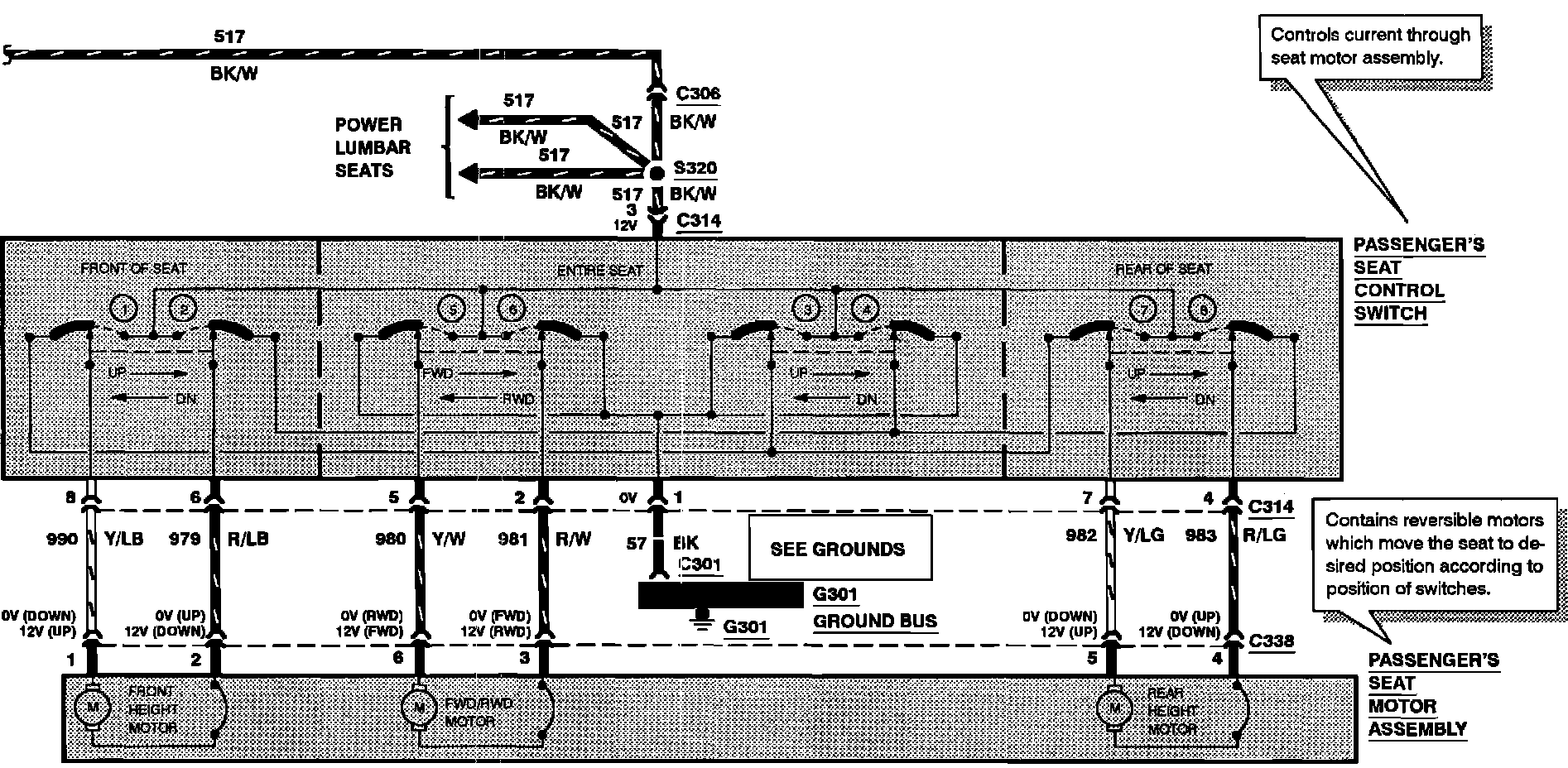

Power Seats

Power Seats:



Power Seats:
