Diagrams
>>
Electrical Diagrams
>>
With Remote/Keyless Entry
With Remote/Keyless Entry

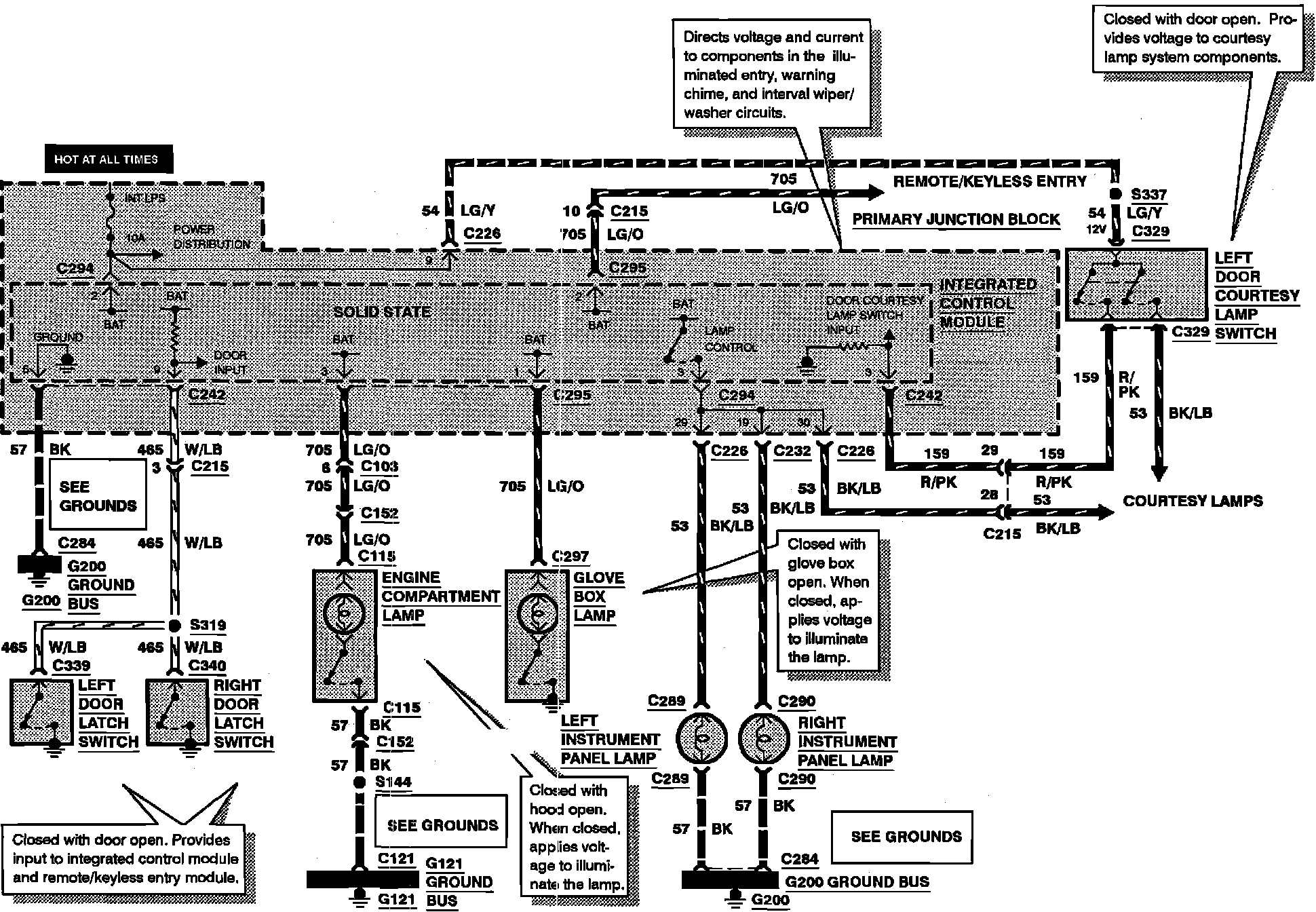

Illuminated Entry (With Remote/Keyless Entry):
