Keyless Entry Module: Diagrams

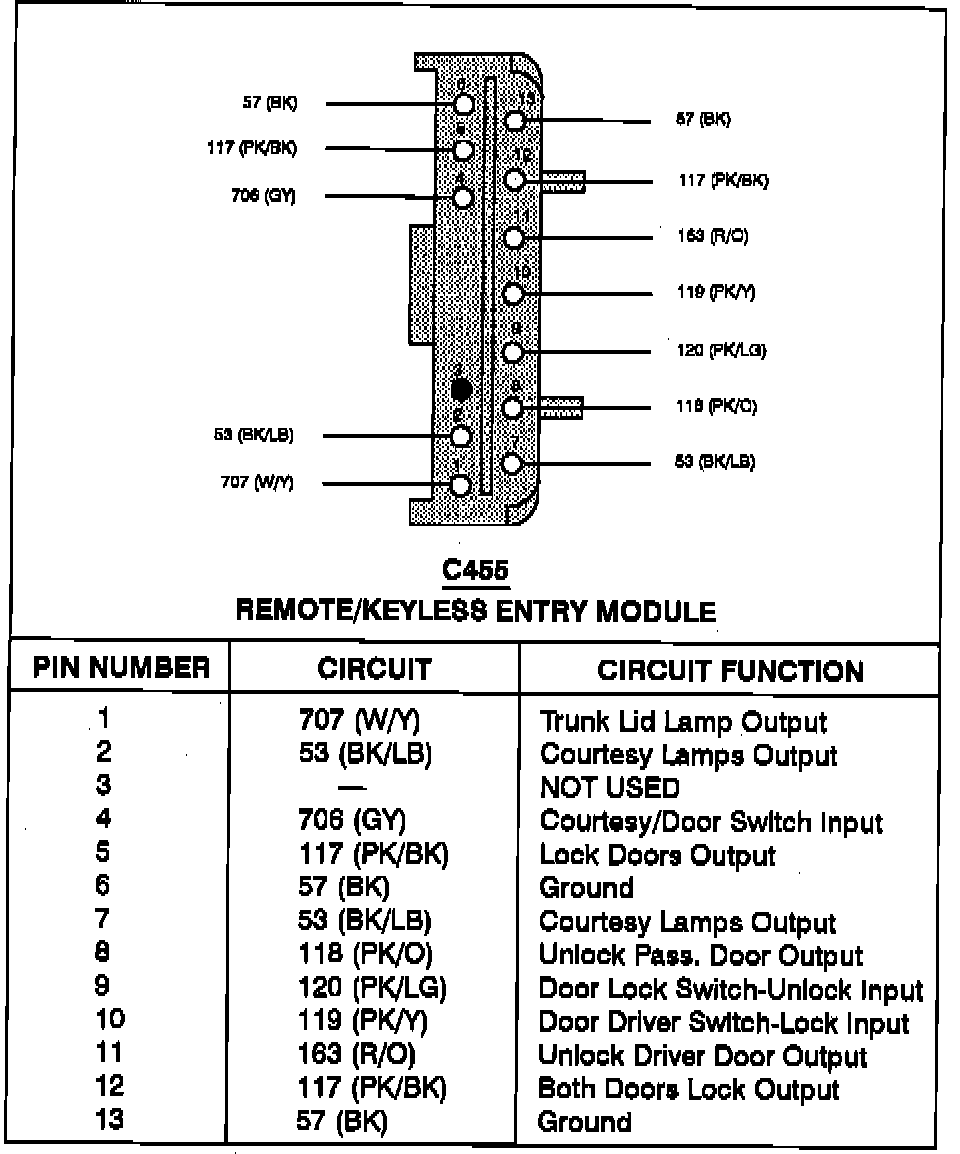

Remote/Keyless Entry Module:

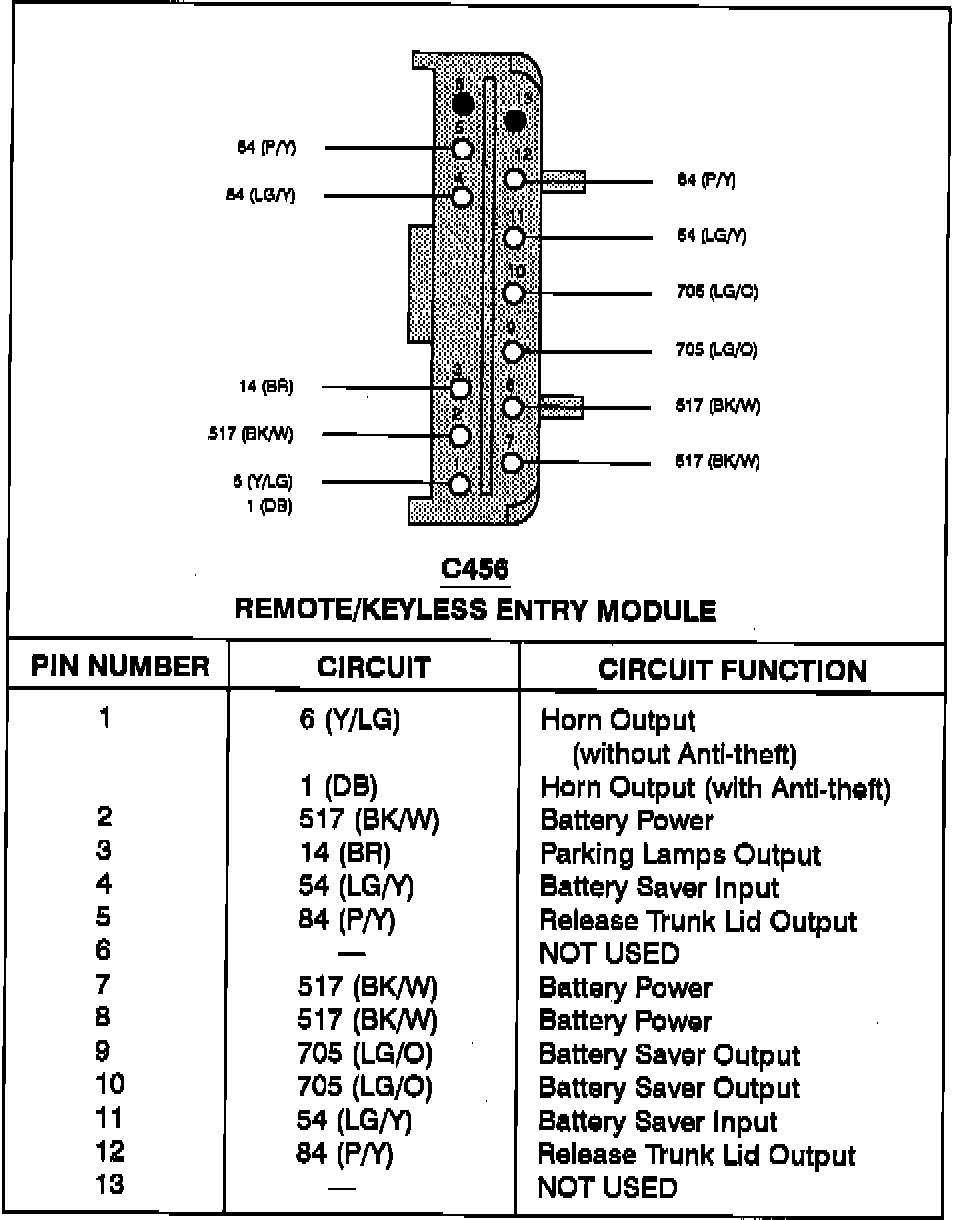

Remote/Keyless Entry Module:

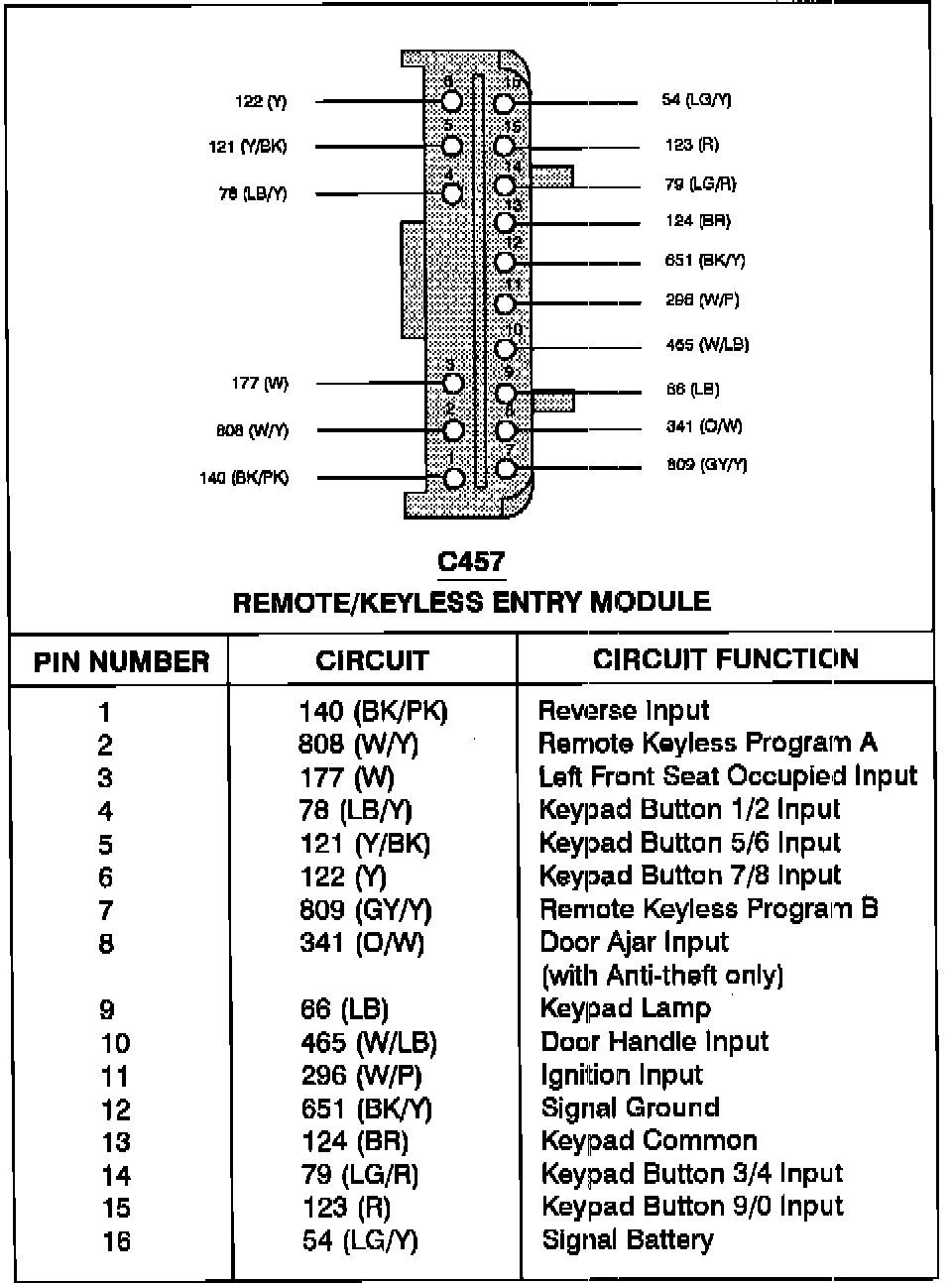

Remote/Keyless Entry Module:
