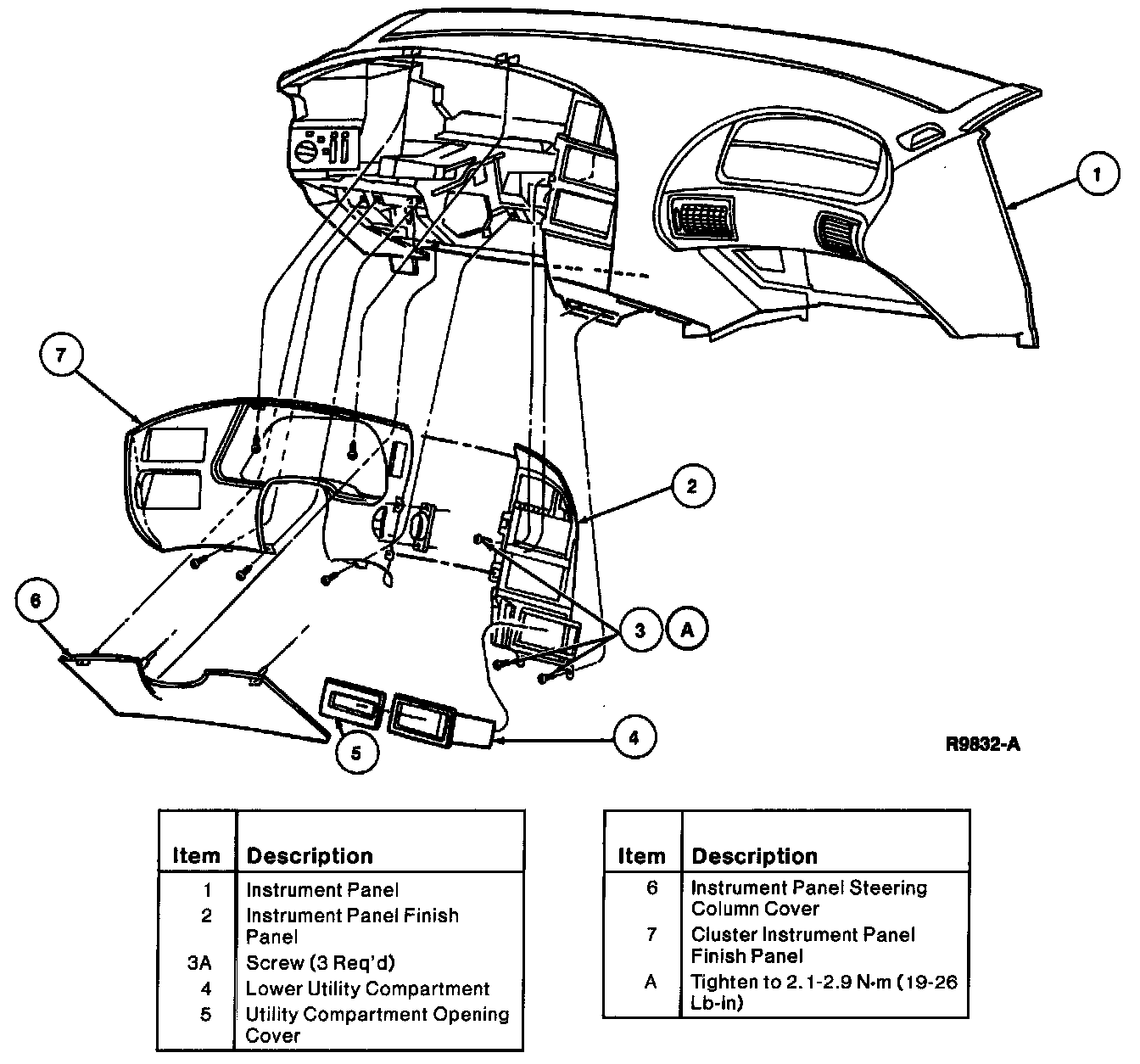

Instrument Panel - Finish Panel

REMOVAL and INSTALLATION
1. Remove cluster instrument panel finish panel.
2. Remove console finish panel from the top of the console panel.
3. Remove two screws retaining bottom of instrument panel finish panel to instrument panel.
4. Remove one screw retaining the left side of the instrument panel finish panel.
5. Pull instrument panel finish panel to unsnap one clip to the right of the air conditioner control and one clip above the A/C register.
6. Pull instrument panel finish panel away from instrument panel and disconnect the wiring and automatic temperature control sensor hose and elbow.
7. To install, reverse Removal procedure.
