Home >> Mercury >> 1994 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> C1 - Powertrain Function (Stall Test)

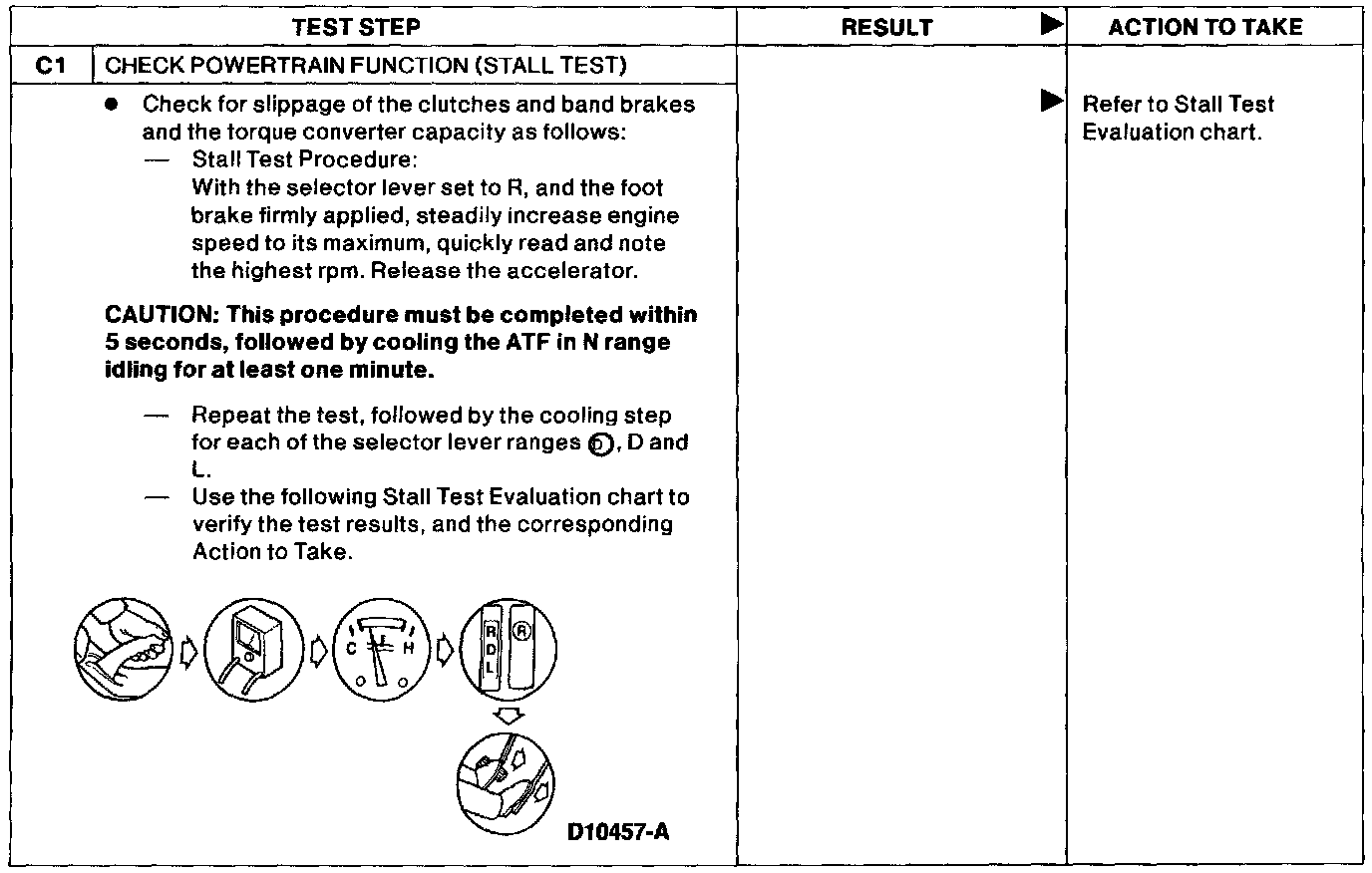

C1 - Powertrain Function (Stall Test)

Test C - Operational Test:

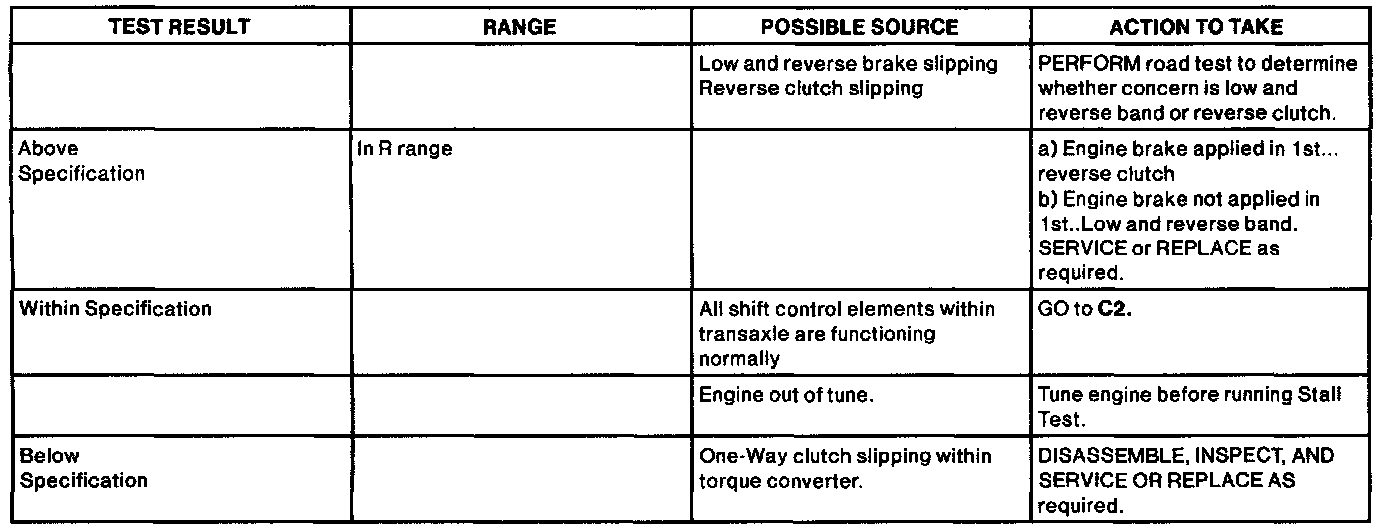

Stall Test Evaluation Chart.:

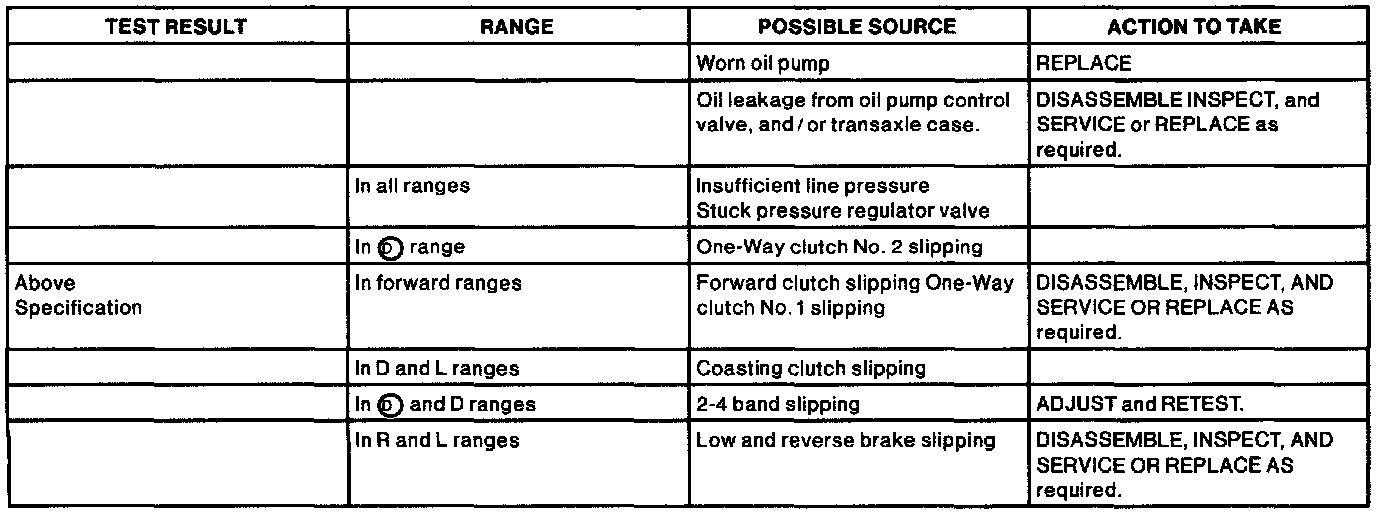

Stall Test Evaluation Chart.:






STALL SPEED
2200-2500 RPM
