Home >> Mercury >> 1994 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> D >> D2

D2

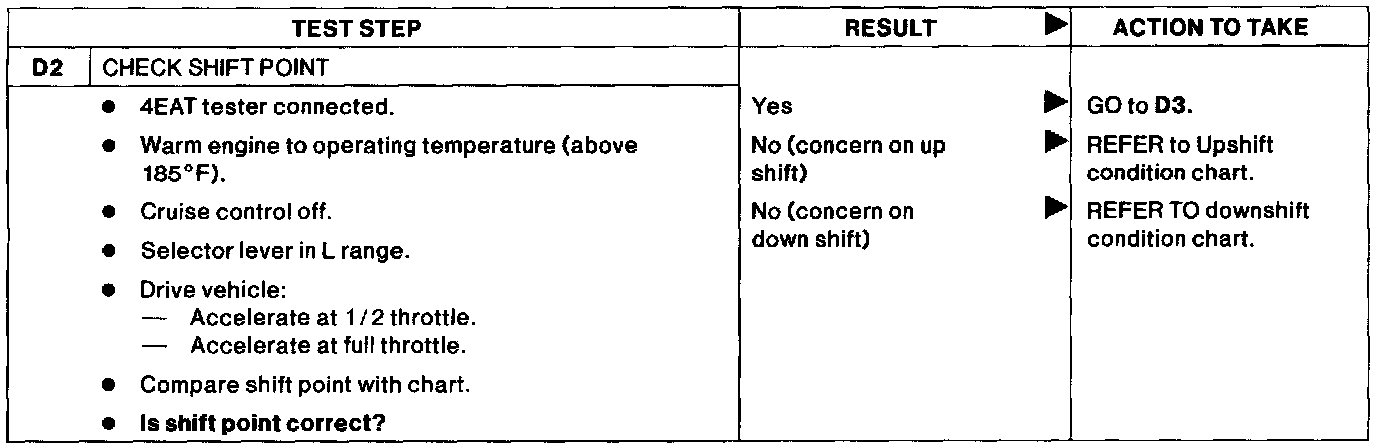

Test D2 - Shift Points:

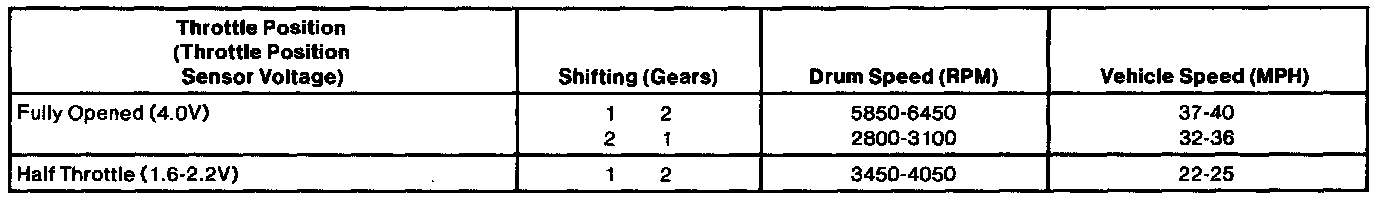

Shift Point Chart:
