Mercury
>>
1994
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Fuel Delivery and Air Induction
>>
Inertia Fuel Shutoff Switch
>>
Locations
Inertia Fuel Shutoff Switch: Locations

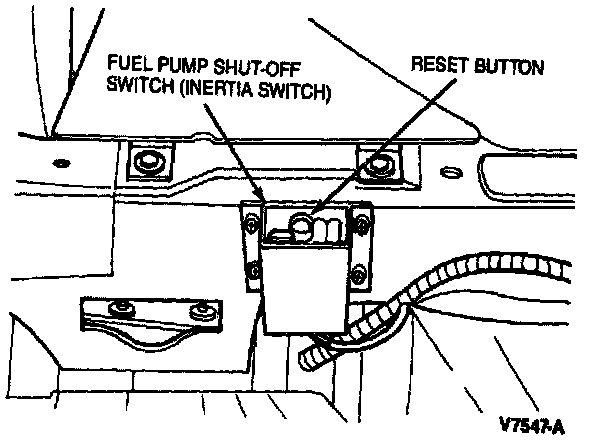

Fuel Inertia Shutoff Switch:
The Inertia Fuel Shut-off Switch is mounted to the LH side of the spare tire well.
