Power Steering Pressure Switch: Description and Operation

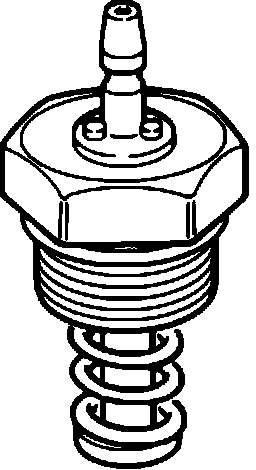

Power Steering Pressure Switch (PSPS):

PURPOSE
The Power Steering Pressure (PSP) switch signals the Powertrain Control Module (PCM) when high system pressure causes an extra load on the engine.

OPERATION
When the PCM receives the input signal, it compensates by adjusting idle speed and initiating A/C cutoff when necessary. This is an ON/OFF switch that closes when hydraulic pressure reaches approximately 400-600 psi.
