Rear Seat Belt Buckle

Removal
1. Remove rear seat cushion.

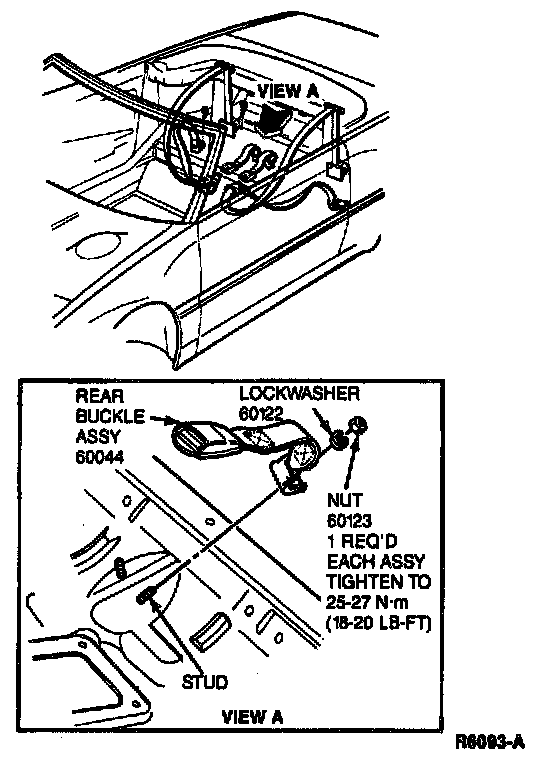

2. Remove nut and lockwasher securing rear seat buckle. Remove rear seat buckle from stud.

Installation
1. Position rear seat buckle onto stud.
2. Install lockwasher and nut. Tighten nut to 25-27 N.m (18-20 lb-ft).
3. Install rear seat cushion.
4. Verify proper operation of harness assembly.
