IA2 - Check Vane Air Flow (VAF) Meter Function

^ Visually check the Volume Air Flow (VAF) meter for cracks, loose mounting and damage to the electrical connector or the sealed plastic cover.

^ Remove the VAF meter and inspect the bottom plate for cracks or loose fasteners.

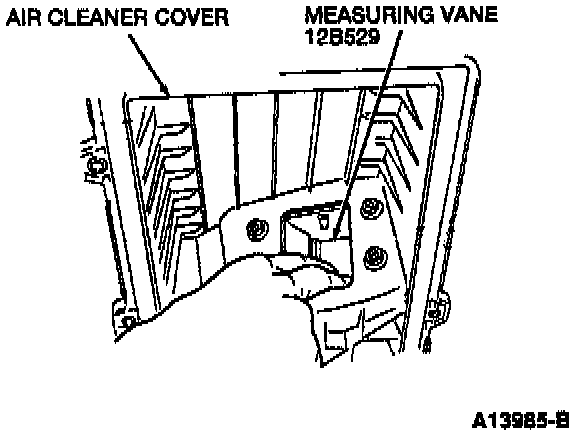

^ Verify that the measuring vane moves smoothly, and the vane springs shut when pushed forward and then released.





^ Is the VAF meter free of cracks, damage, restrictions, and measuring vane binding?

YES -- Go to IA5. IA5 - Resonance Chamber Condition

NO -- Replace the VAF meter.
