Wide Open Throttle Adjustment

Wide-Open Throttle Position adjustment

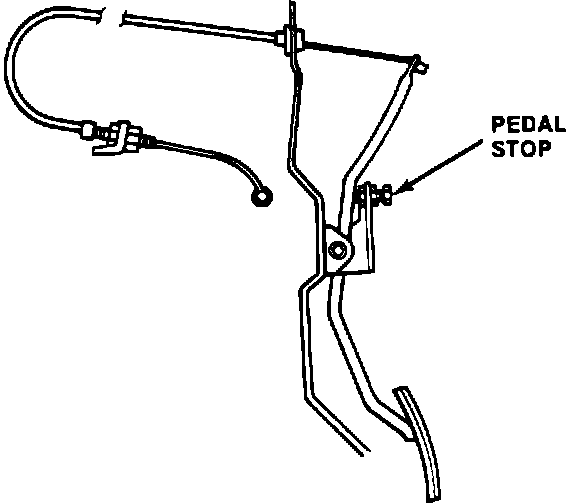

Pedal Stop (Wide Open Throttle):

1. Adjust accelerator pedal tree play. Refer to Ajustments/ Free Play Adjustments. Free Play Adjustments

2. Press the accelerator all the way to the floor.

3. Make sure that the throttle plate in the throttle body is in the wide-open position.

4. If necessary, loosen the locknut and adjust at the pedal stop on the pedal bracket.

5. Tighten locknut after adjustment is completed.
