Diagnostic Flowchart

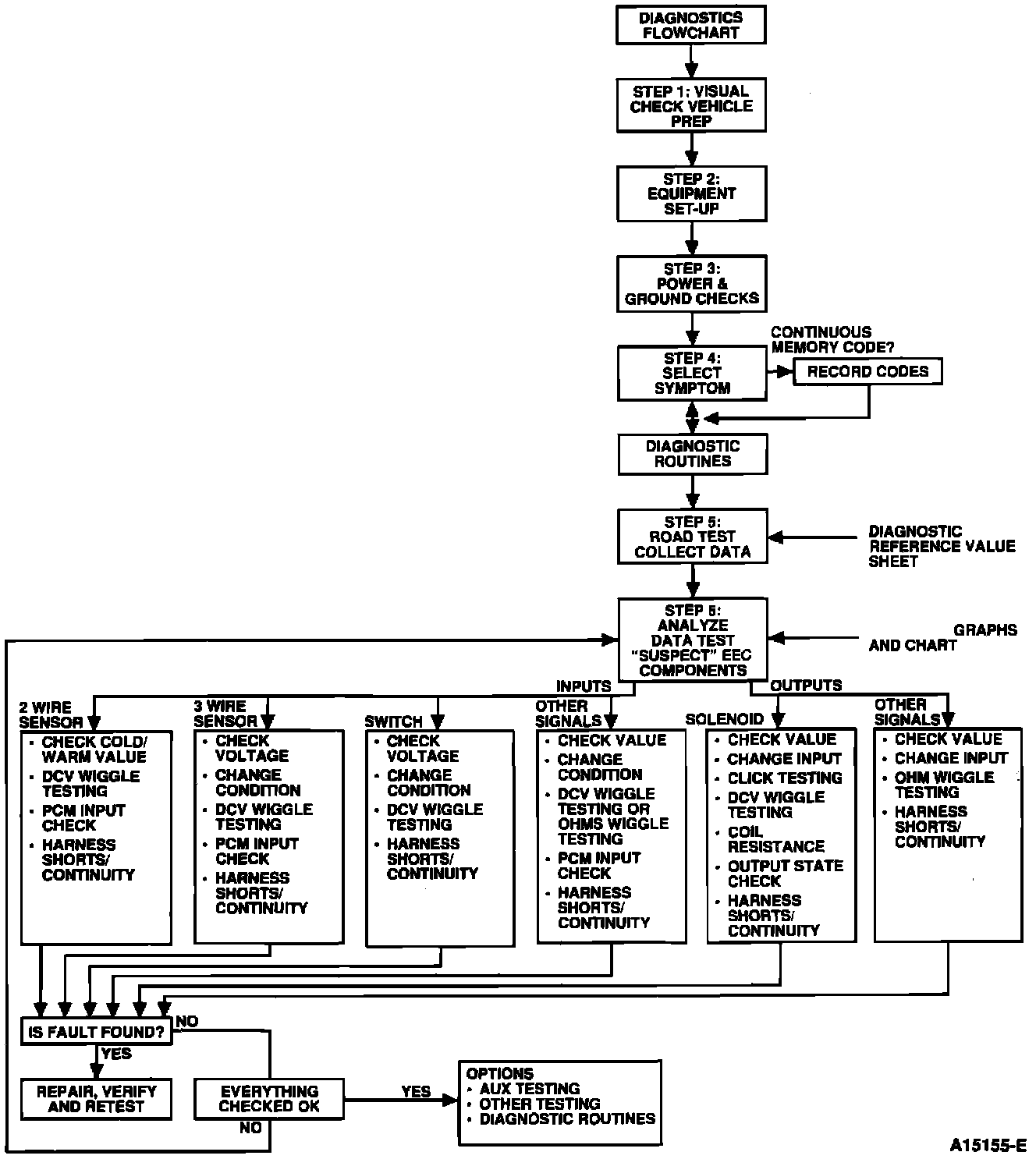

Diagnostic Summary Flowchart:

The flowchart gives and overview of the steps involved in Electronic Engine Control (EEC) Intermittent Fault Diagnosis. The flowchart is meant as a guide and is not meant as a substitute for the procedures it lists.
