Breakout Box Connection

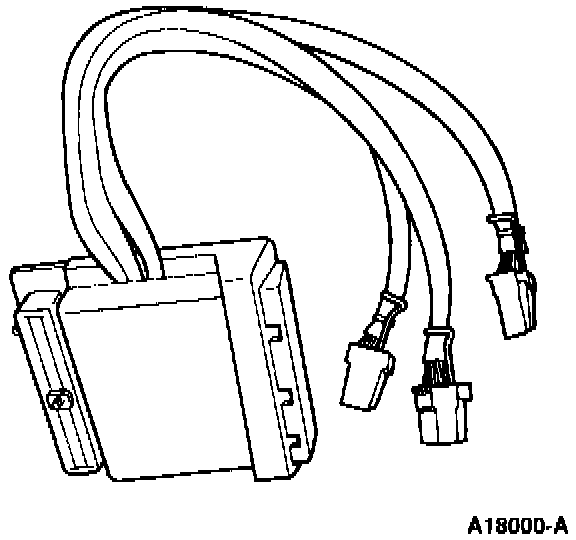

Breakout Box Adapter:






The Breakout Box is connected to the Powertrain Control Module (PCM)harness to pinpoint faults in the Electronic Engine Control (EEC) system. To connect the Breakout Box, disconnect the PCM connectors and attach Breakout Box 014-00322, with adapter 007-00038, to the harness connectors and to the PCM.
