Temperature Gauge: Testing and Inspection

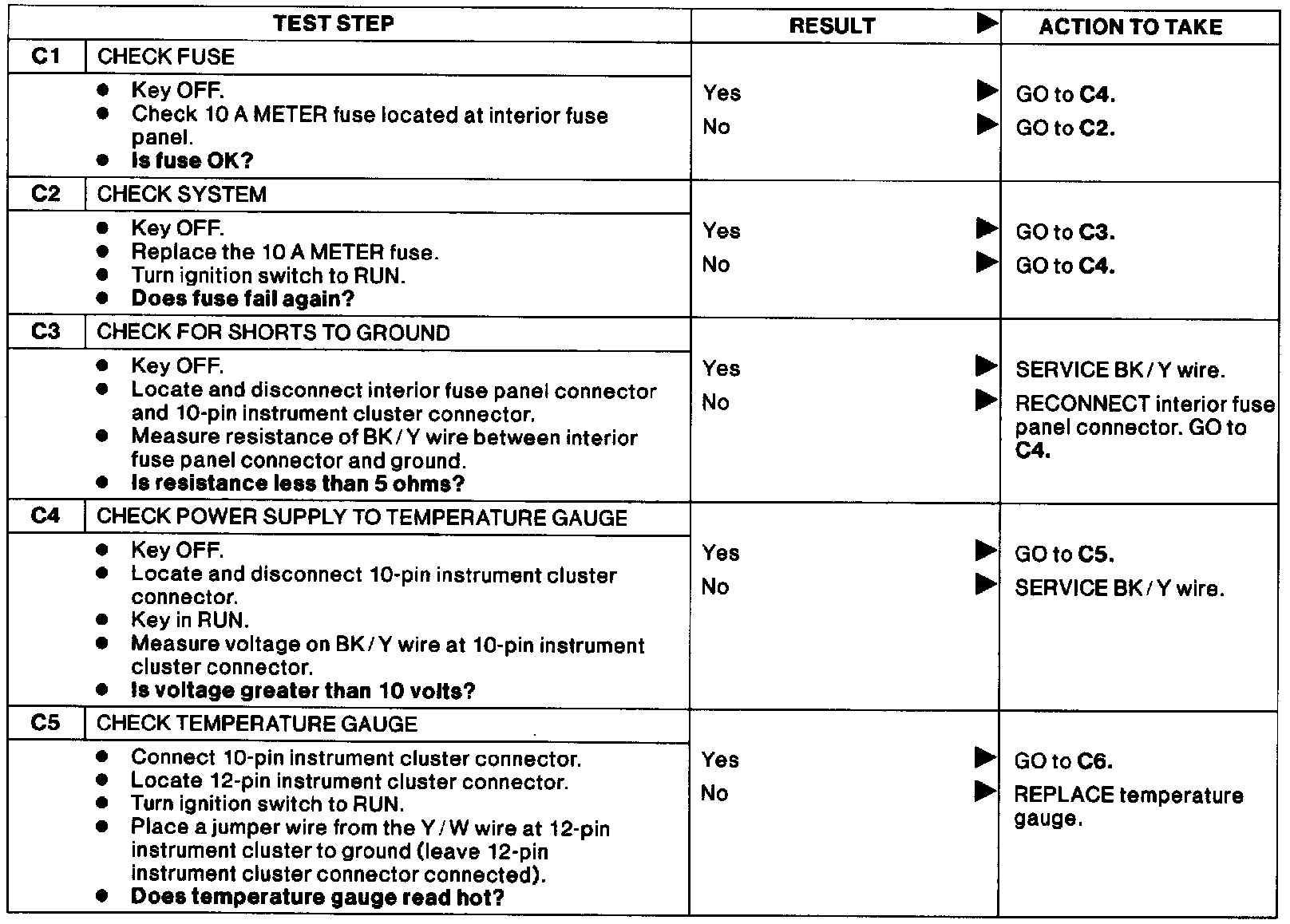

Test C: Coolant Gauge Diagnosis.:
Test C1-C5

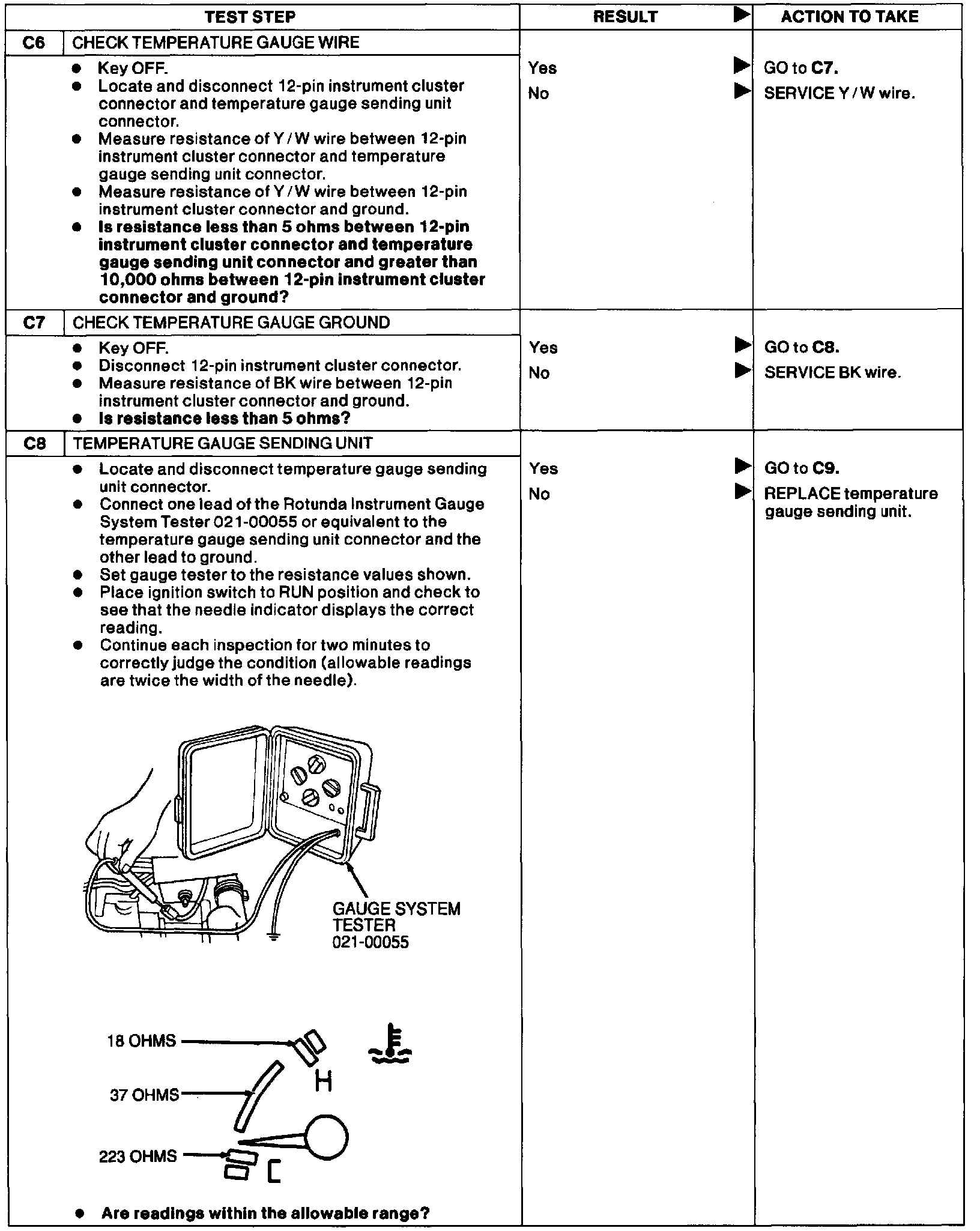

Test C: Coolant Gauge Diagnosis.:
Test C6-C8

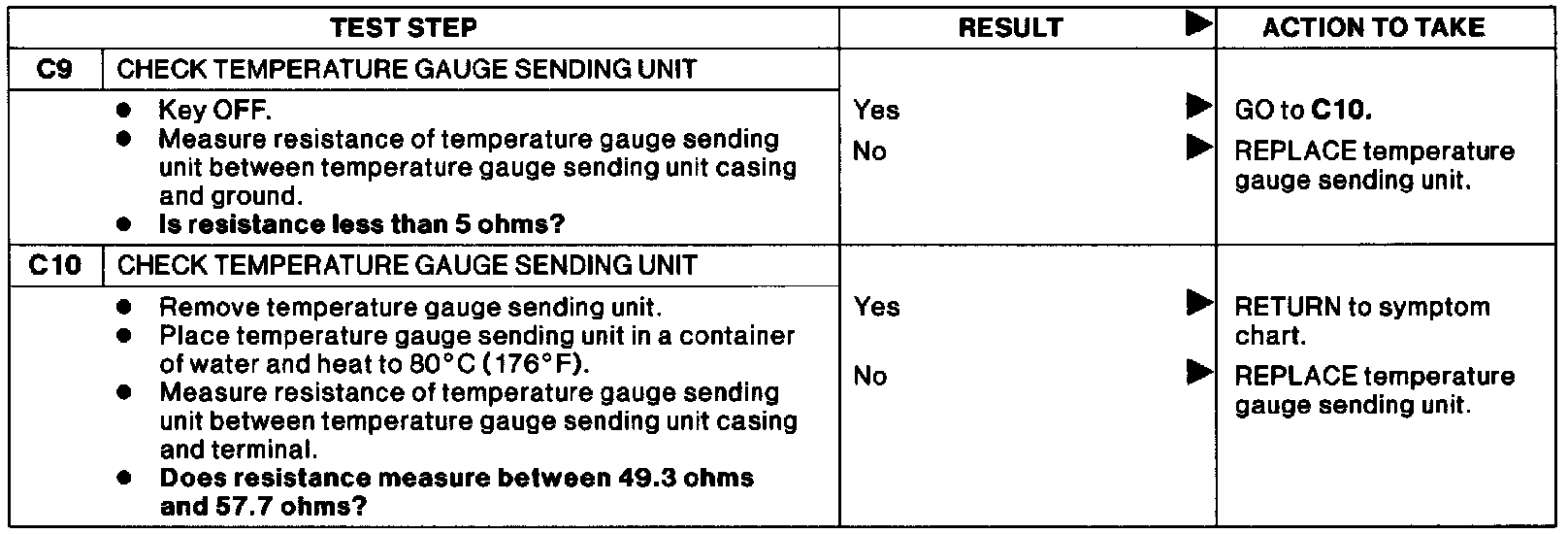

Test C: Coolant Gauge Diagnosis.:
Test C9-C10
