Cruise Control Servo Cable: Adjustments

CABLE AT THROTTLE BODY

Fig. 90 Description Of Tool Fabrication For Cable Adjustments:

NOTE: A setting tool must be fabricated as shown to adjust speed control cables.

1. Disconnect cable from cruise control actuator.
2. Slightly loosen cable retaining nuts at bracket on cylinder head cover.

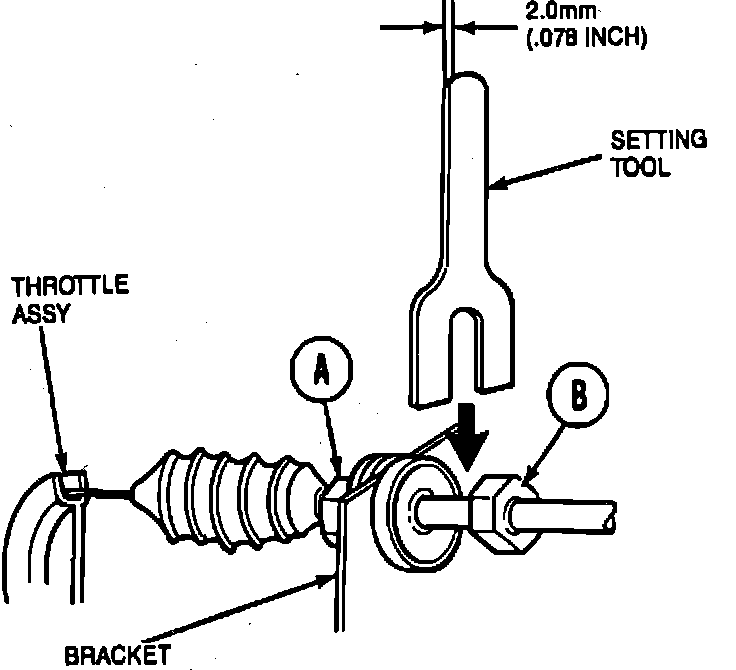

Fig. 91 Location Of Nut ``B'':

3. Insert setting tool between nut "B" and bracket.
4. Tighten both nuts to eliminate all cable slack.
5. Loosen nut "A" only enough to remove tool. Do not adjust nut "B."
6. Tighten nut "A" without moving nut "B".

CABLE AT ACTUATOR

NOTE: This step to be performed after throttle body end adjustment.

1. Slightly loosen cable retaining nuts at bracket.

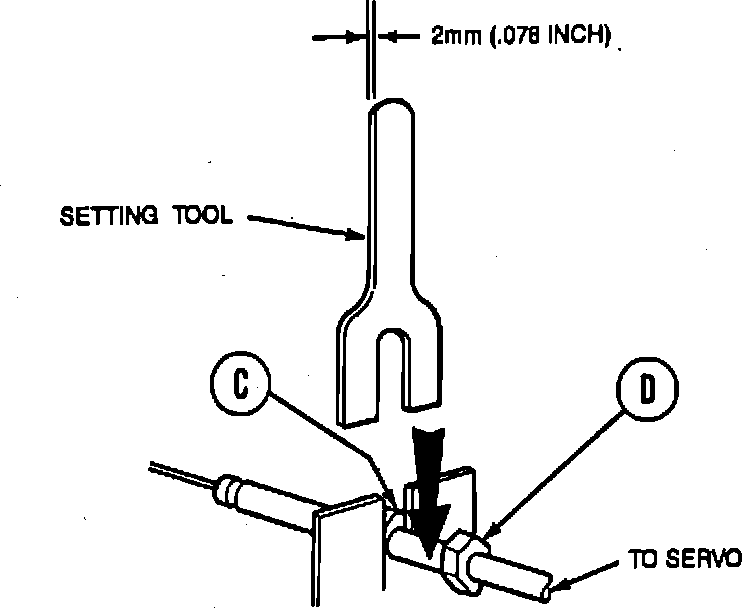

Fig. 92 Location Of Nut ``D'':

2. Insert setting tool between bracket and nut "D."
3. Tighten both nuts to eliminate all slack at throttle body end of cable.
4. Loosen nut "C" only enough to remove setting tool. Do not adjust nut "D."
5. Tighten nut "C" without moving nut "D".
