One-Way Clutch and Small Sun Gear - With 4EAT

DISASSEMBLE

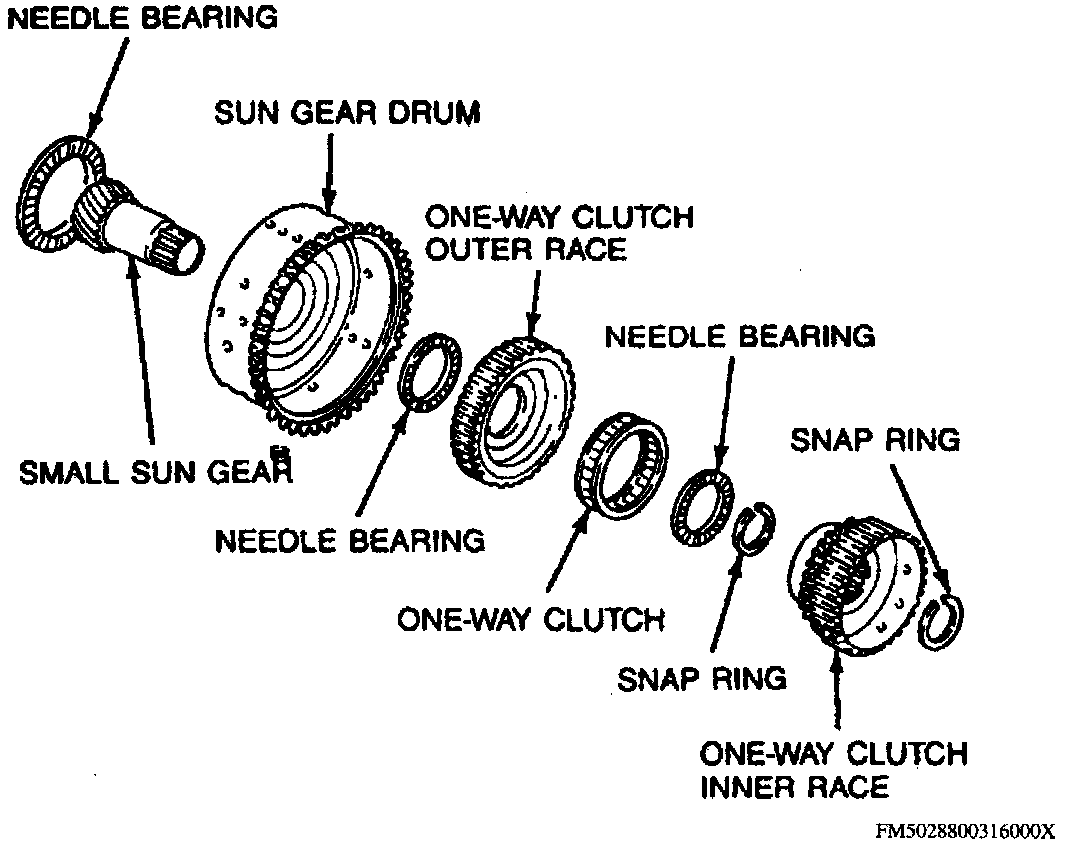

Small Sun Gear And One-way Clutch Assembly:

NOTE: Refer to the Small Sun Gear And One-way Clutch Assembly when disassembling small sun gear and one-way clutch.

1. Inspect sun gear drum and small sun gear for damage or wear.
2. Disassemble one-way clutch, noting the following:
a. Remove inner race, one-way clutch, and thrust bearing.
b. Inspect inner and outer race and replace as required.
c. Lubricate thrust bearing, then install to one-way clutch inner race.
d. Install one-way clutch into one-way clutch outer race.

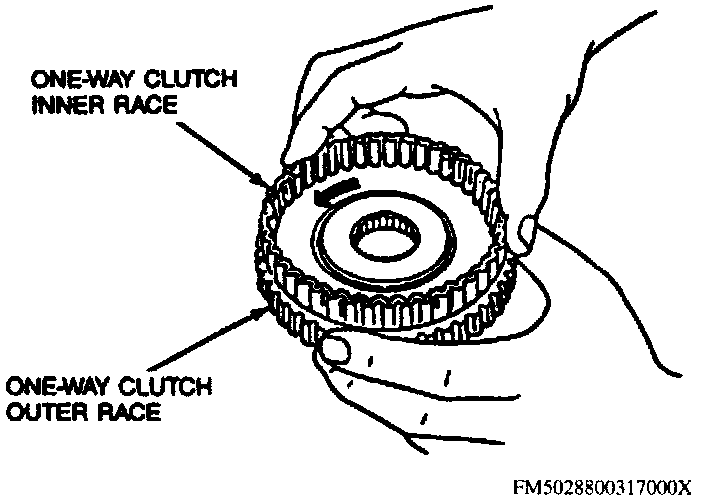

One-way Clutch Inner Race Into Outer Race Installtion:

NOTE: Ensure spring cage of one-way clutch faces outer race.

e. Install one-way clutch inner race into clutch outer race turning inner race counterclockwise.

NOTE: Ensure inner race turns counterclockwise only.


ASSEMBLE
1. Install small sun gear into sun gear drum with snap ring. Align splines of one-way clutch inner race with small sun gear clutch hub.
2. Install one-way clutch inner and outer race to sun gear drum.
3. Install snap ring. Ensure one-way clutch outer race turns smoothly clockwise when small sun gear is held.
4. Lubricate thrust bearing, then install to sun gear drum.
