One-Way Clutch and Planetary Carrier - With 4EAT

DISASSEMBLE

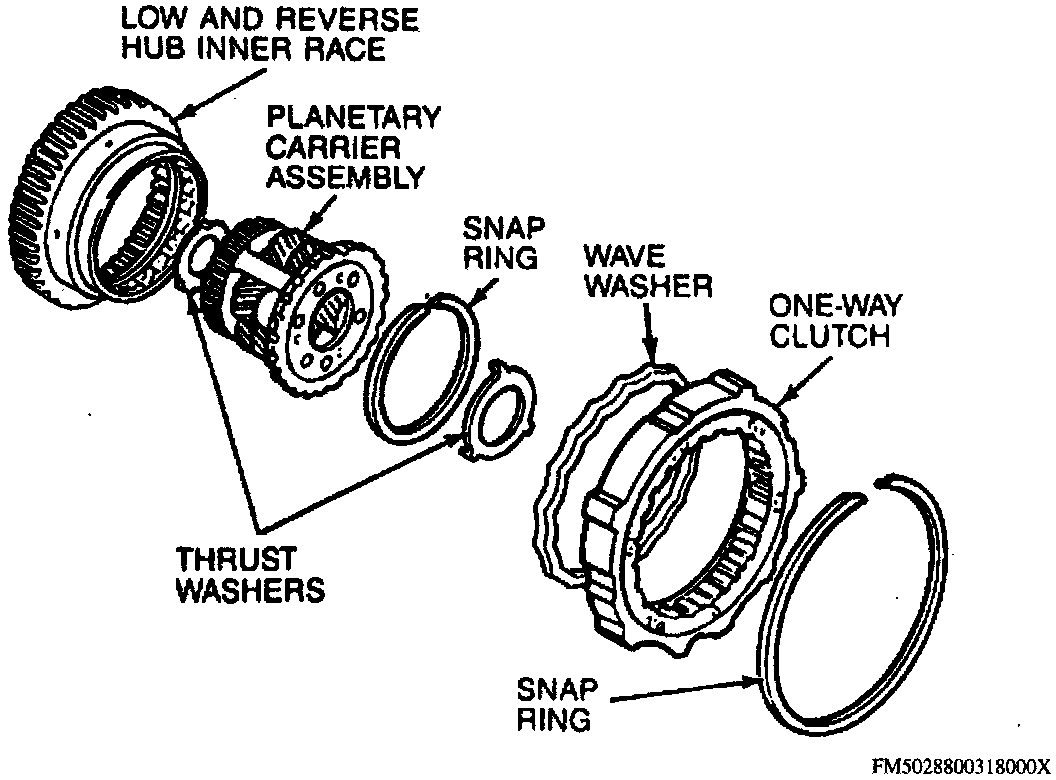

Exploded View Of One-way Clutch And Planetary Carrier Assembly:

NOTE: Refer to the Exploded View Of One-way Clutch And Planetary Carrier Assembly image when disassembling and assembling the one-way clutch and planetary carrier.

1. Check carrier hub assembly for worn gear and operation.
2. Check clearance between pinion washer and planetary carrier. Clearance should be 0.008-0.028 inch.
3. Check for damage or worn inner race, snap ring, and bearing race.
4. Check one-way clutch for damage or wear and check operation.
5. Check for detached roller.
6. Ensure one-way clutch rotates smoothly and only clockwise.

ASSEMBLE
1. Lubricate bearing races, then install t0 both sides of one-way clutch and carrier hub assembly.
2. Install bearing race tabs into alignment holes.
