No-Load Test

Load Test:

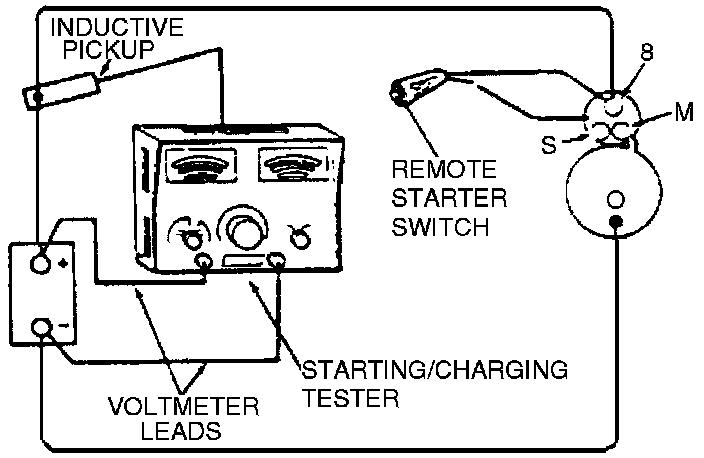

1. Connect test equipment as shown.
2. Connect remote starter switch, ensure starter turns smoothly.
3. Voltmeter should read no less than 11.5 volts and ammeter should read no more than 60 amps.
5. If voltage is lower or amperage is higher, check battery or repair starter as necessary.
