Home >> Mercury >> 1994 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Fuel Delivery and Air Induction >> Overboost Switch >> Locations

Overboost Switch: Locations

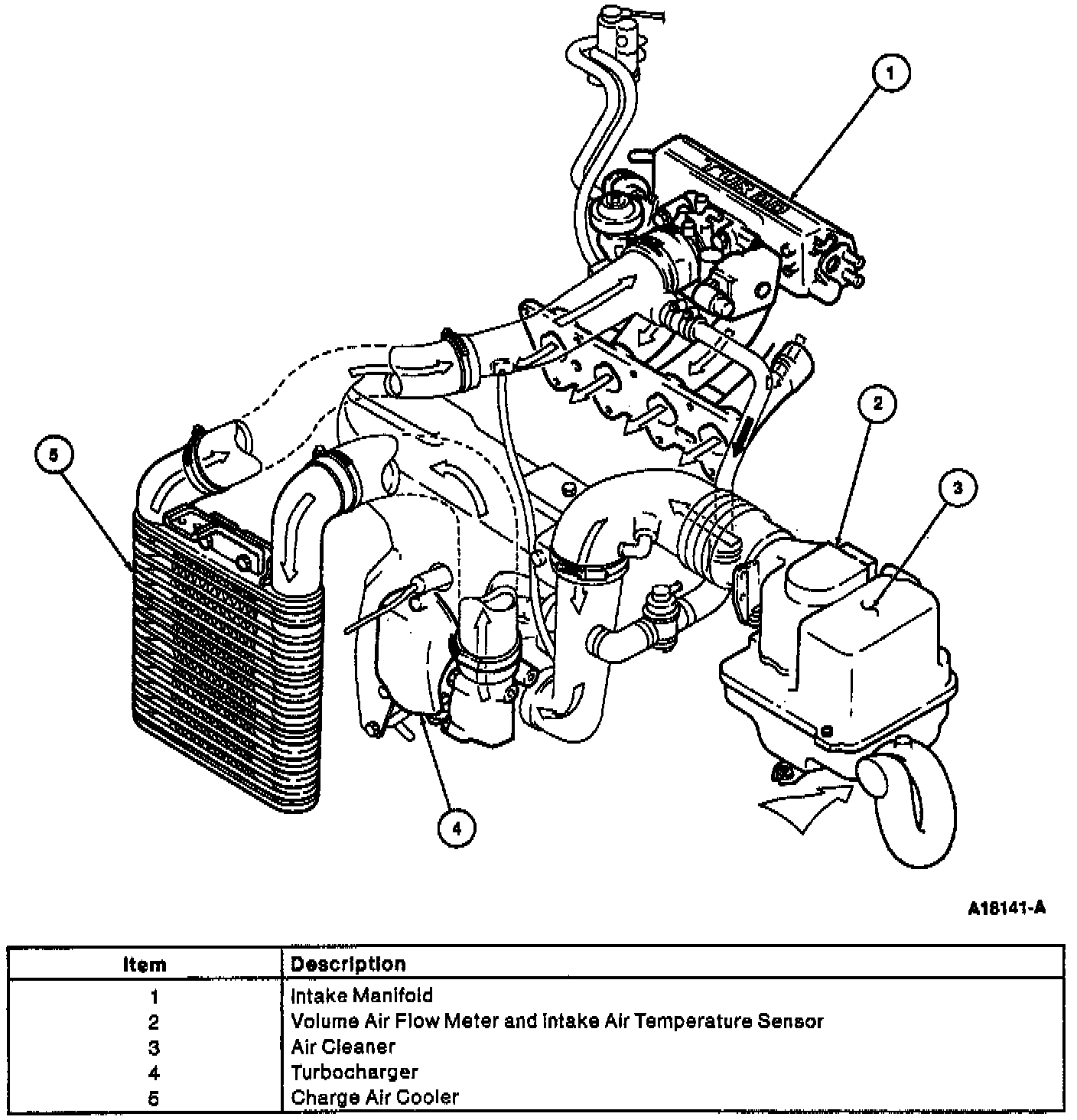

The boost pressure switch is located behind the intake manifold.
