Capri L4-1597cc 1.6L DOHC Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Manufacturer Code Charts
>>
41 - Crash Sensor Circuit High Resistance or Open
>>

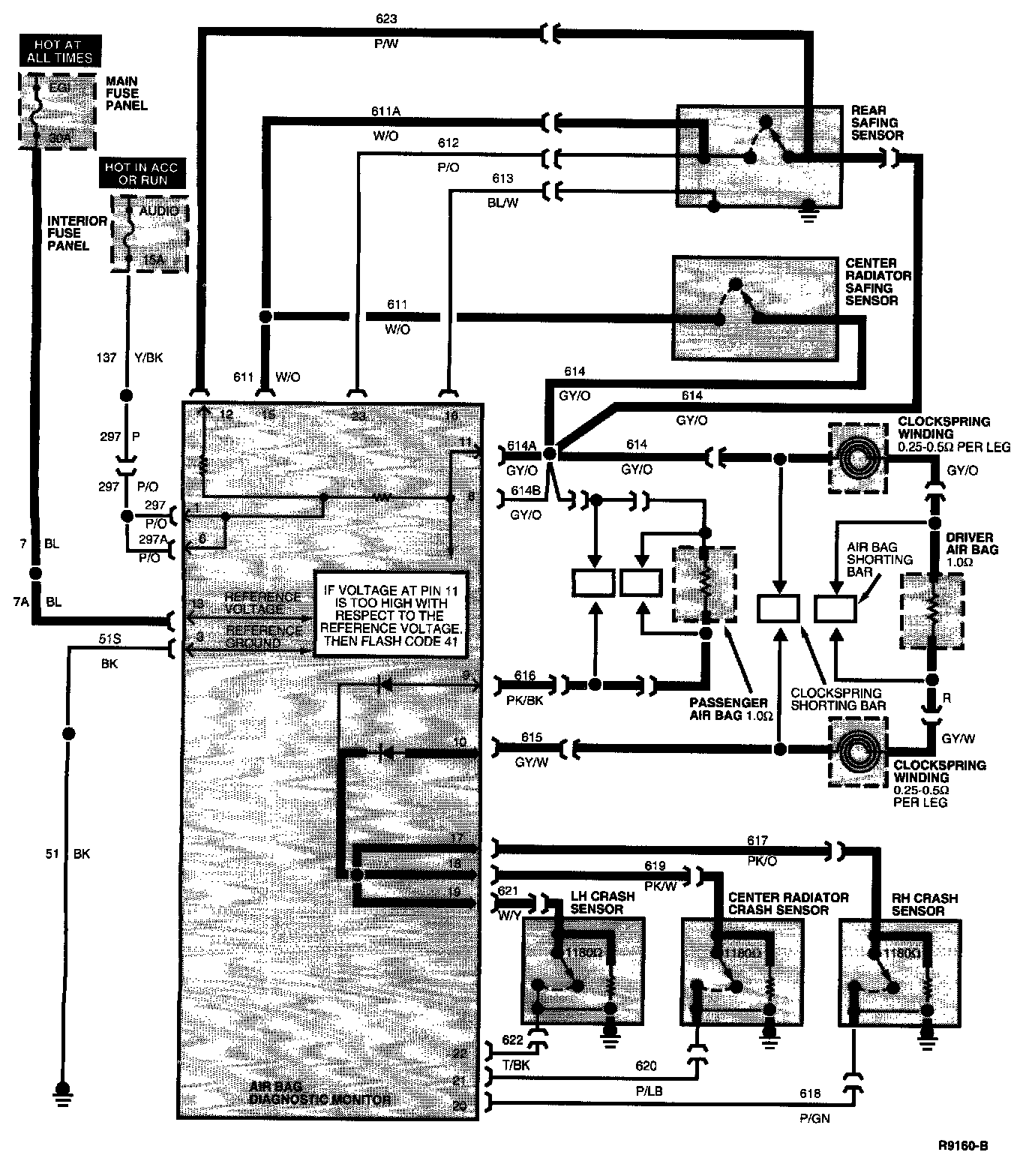

Schematic
Schematic
