Intercooler: Service and Repair
REMOVE1. Raise vehicle on a hoist and remove the bumper assembly.
2. Loosen the retaining clamps and disconnect the intercooler hose from the intercooler.
3. Remove two nuts retaining intercooler to core support.

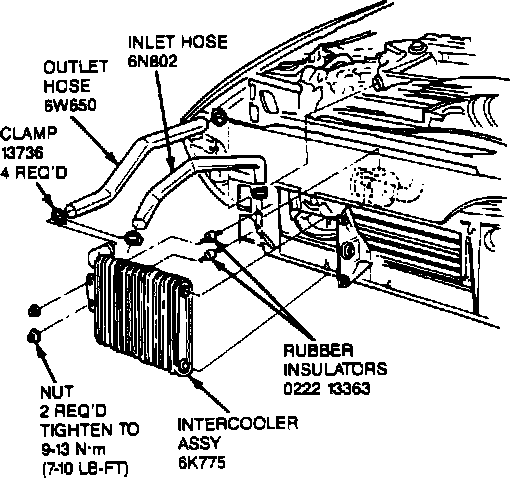

Intercooler Removal/Installation:
4. Remove intercooler.
INSTALL
1. Position intercooler and align rubber grommets.
2. Install two retaining nuts on intercooler and tighten securely.
3. Connect intercooler hoses and tighten clamps securely.
4. Install bumper assembly.
5 Lower vehicle and check operation.
