BARO - Barometric Pressure Sensor
>>
BARO Data Sheet
BARO Data Sheet

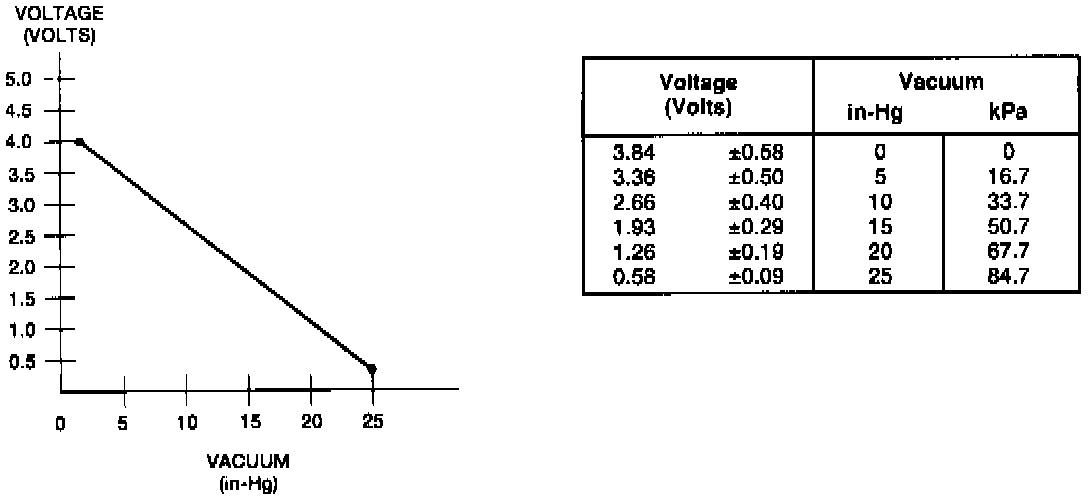

BARO Sensor Voltage Data Sheet:
