Home >> Mercury >> 1994 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Volt Meter Gauge >> Testing and Inspection

Volt Meter Gauge: Testing and Inspection

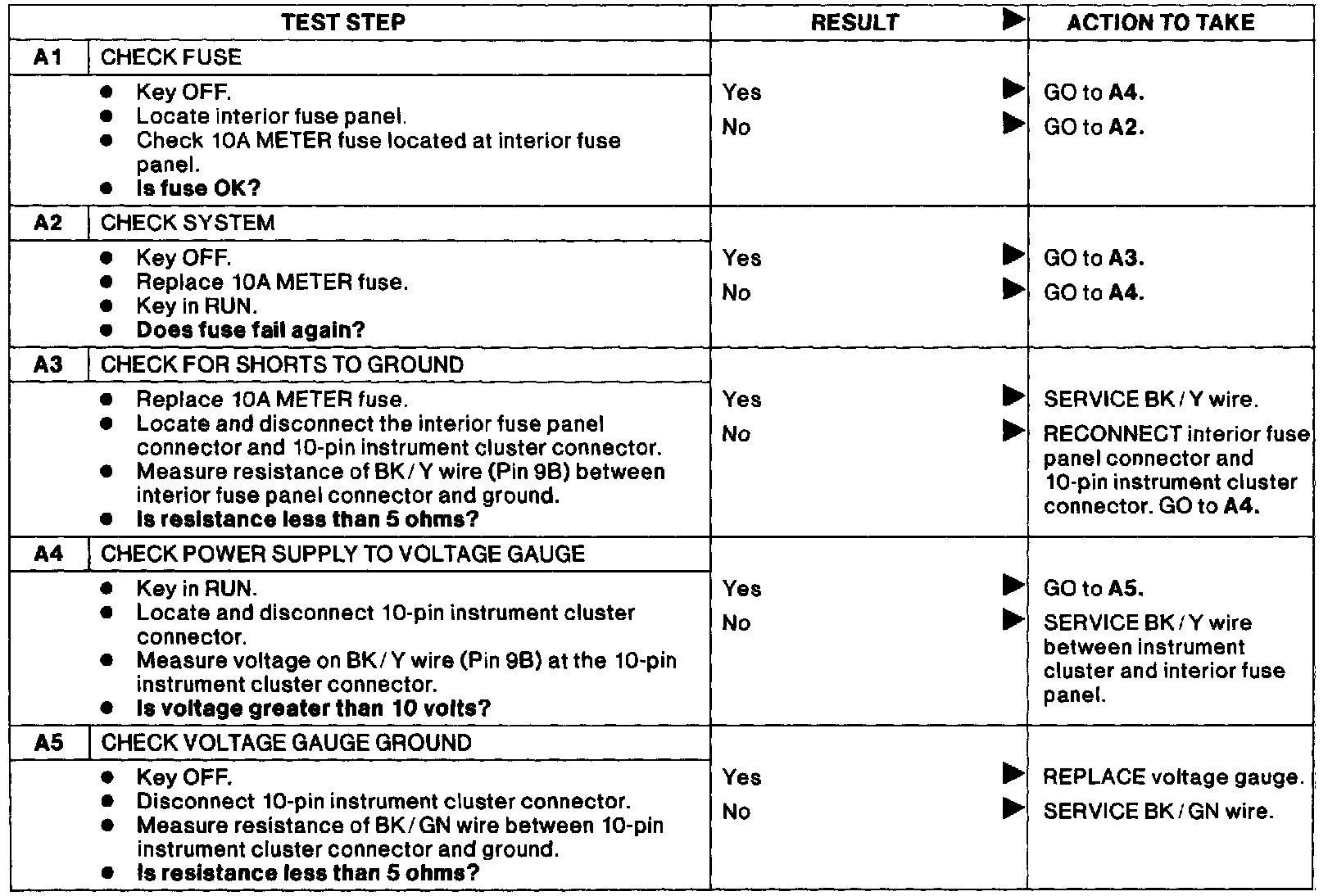

Test A: Voltmeter Diagnosis.:





Test A1-A5
