Oil Pressure Gauge: Testing and Inspection
Test B: Oil Pressure Gauge Diagnosis.:

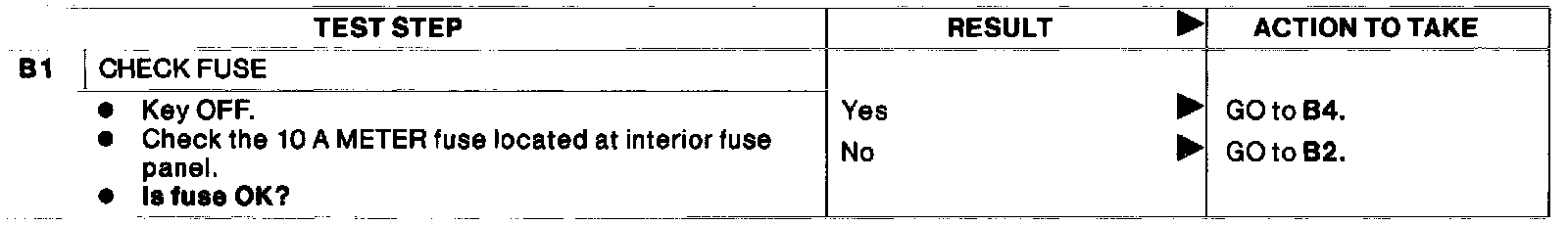

Test B1
Test B: Oil Pressure Gauge Diagnosis.:
Test B2-B7
Test B: Oil Pressure Gauge Diagnosis.:

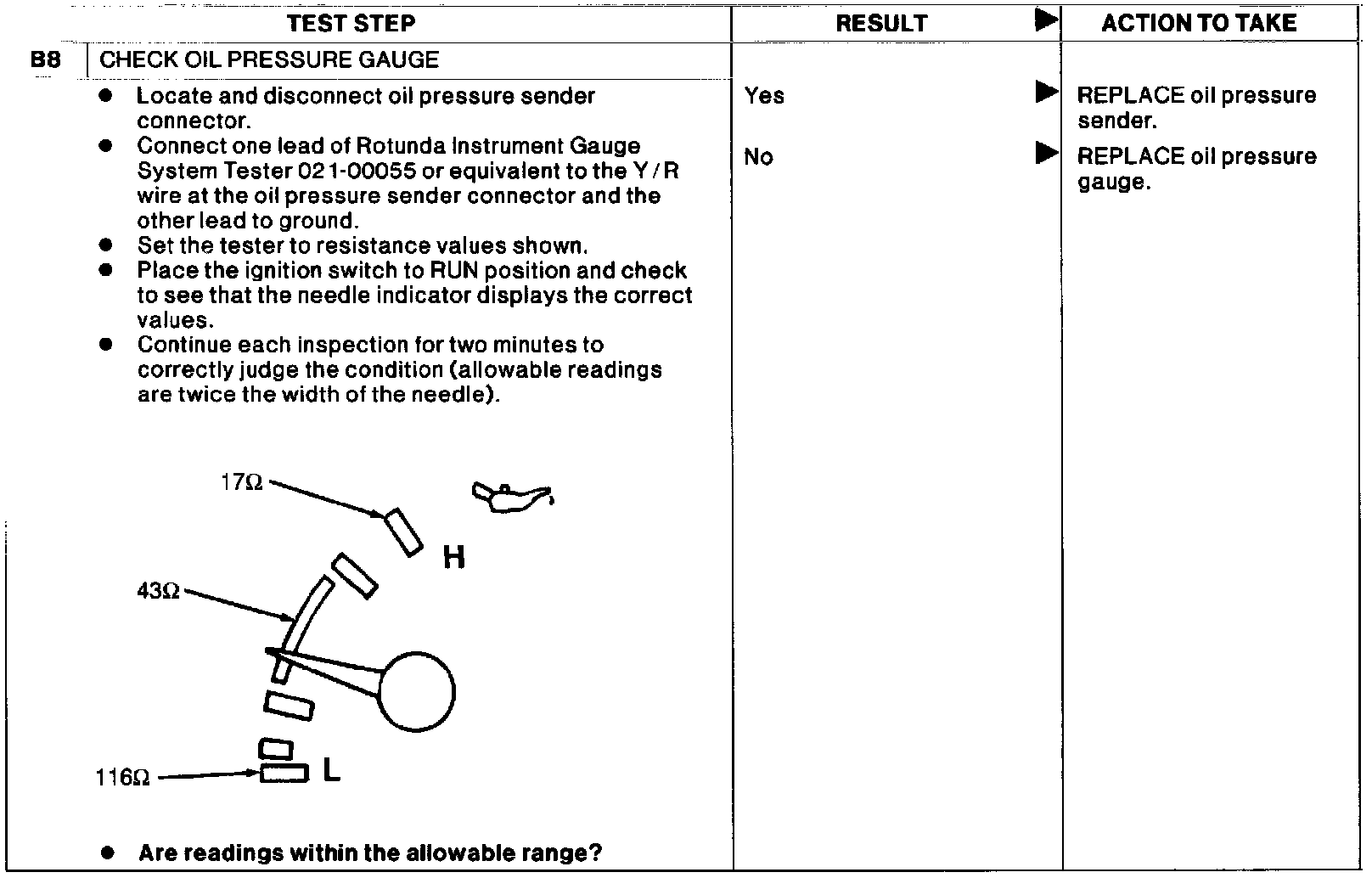

Test B8
