Rear

1. Remove approximately 2/3 of brake fluid from master cylinder.
2. Raise and support vehicle.
3. Remove wheel and tire assembly.

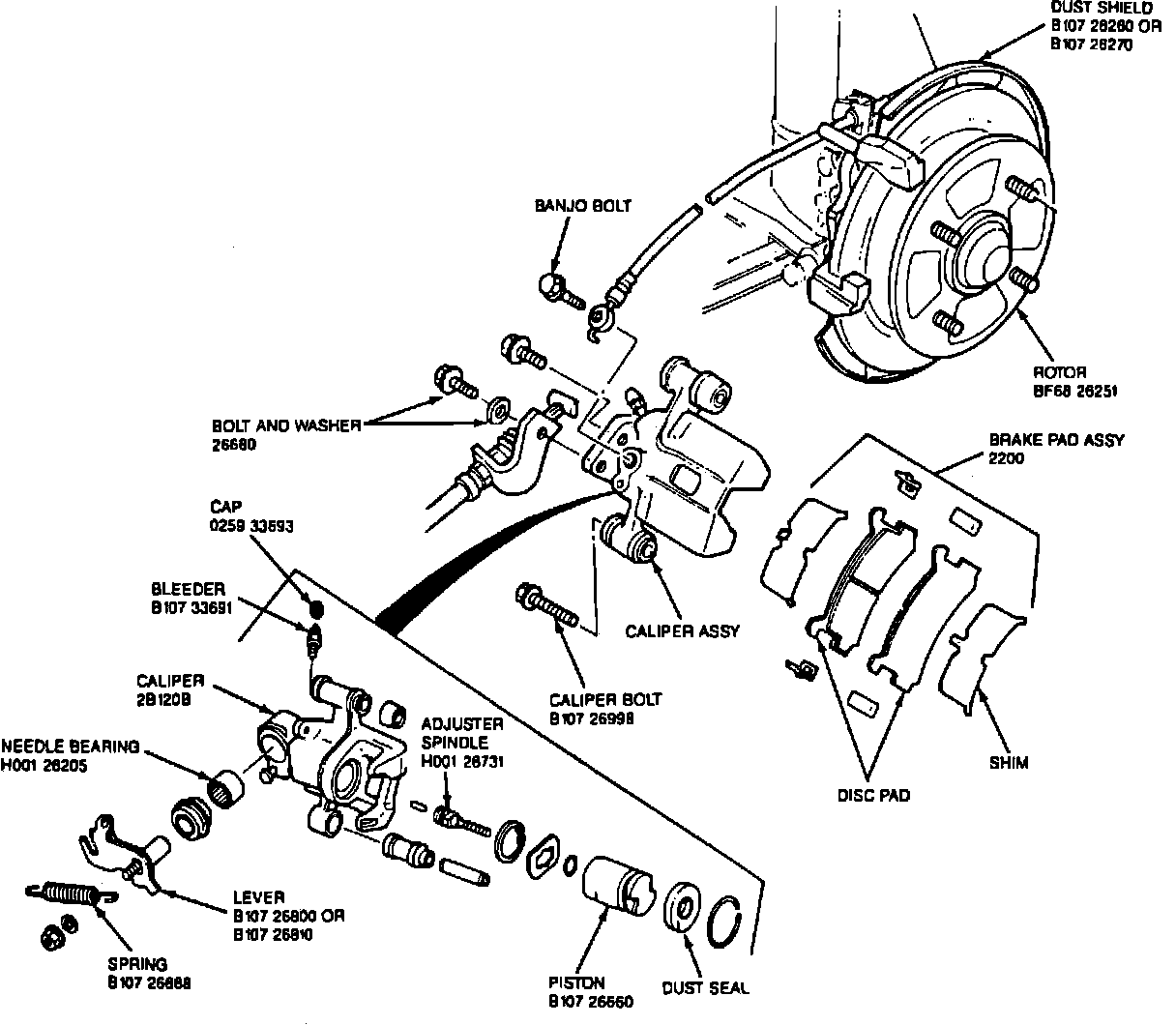

Rear Disc Brake Assembly:

4. Using needle nose pliers, remove parking brake return springs at back of caliper.
5. Loosen parking brake cable housing adjusting nut, then remove cable housing from bracket on rear lower control arm.
6. Loosen attaching bolt connecting parking brake cable bracket to rear caliper.
7. Remove parking brake cable from rear caliper, then loosen lower caliper bolt.
8. Pivot caliper upward on upper caliper guide pin.
9. Remove disc pad retaining spring, then the disc pad and shims.
10. Remove anchor plate clips from caliper anchor plate.
11. Remove and resurface rotor if necessary.
