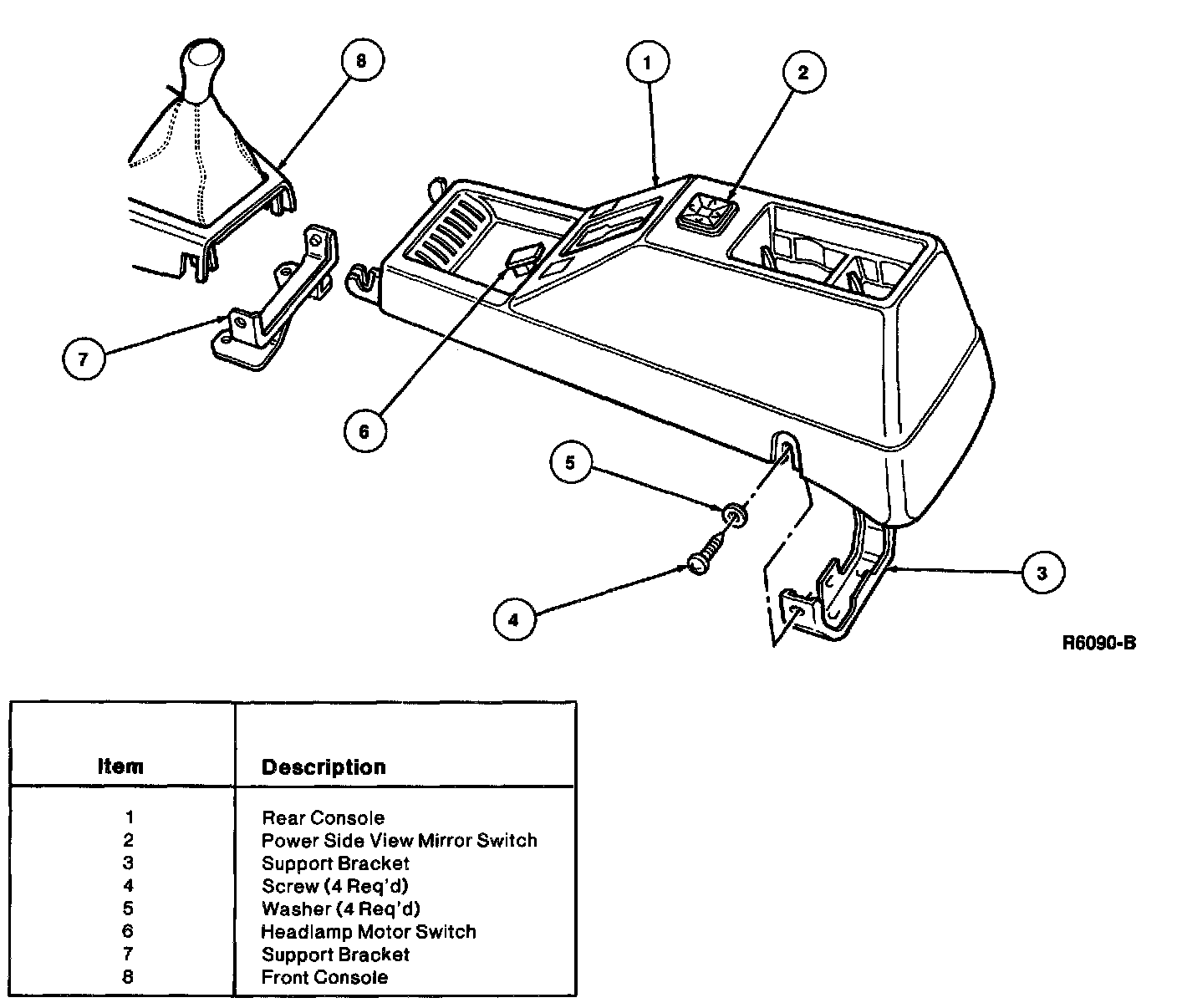

Rear

Removal
1. Slide front seat completely forward.
2. Remove screws retaining the rear of the console
3. Slide front seat completely rearward.
4. Remove the screws retaining the rear console the front console
5. Raise parking lever as far as it will go.





6. Raise the rear of the console and pull backward to remove.

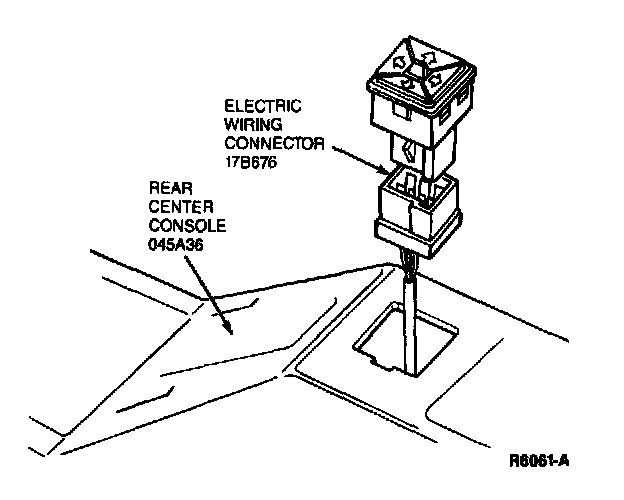

7. Disconnect wiring harness from mirror switch and headlamp motor switch.

Installation
1. Connect wiring harness and position rear console in front console opening.
2. Install front screws in rear console.
3. Slide front seats completely forward.
4. Install screws in the back of the rear console.
5. Release parking brake lever.
