Home >> Mercury >> 1993 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations >> Full Body View

Full Body View


SEDAN

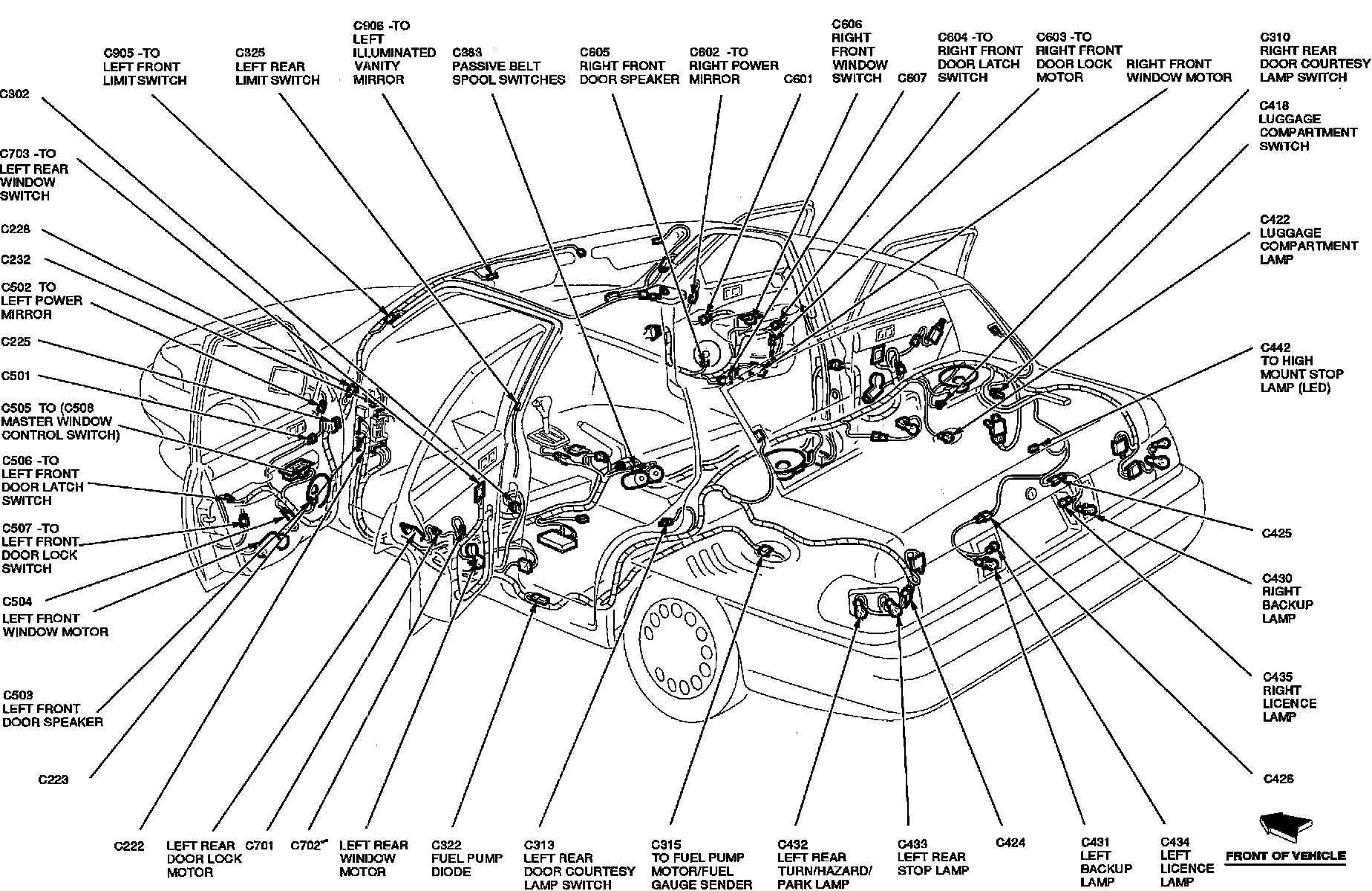

Full Body View:

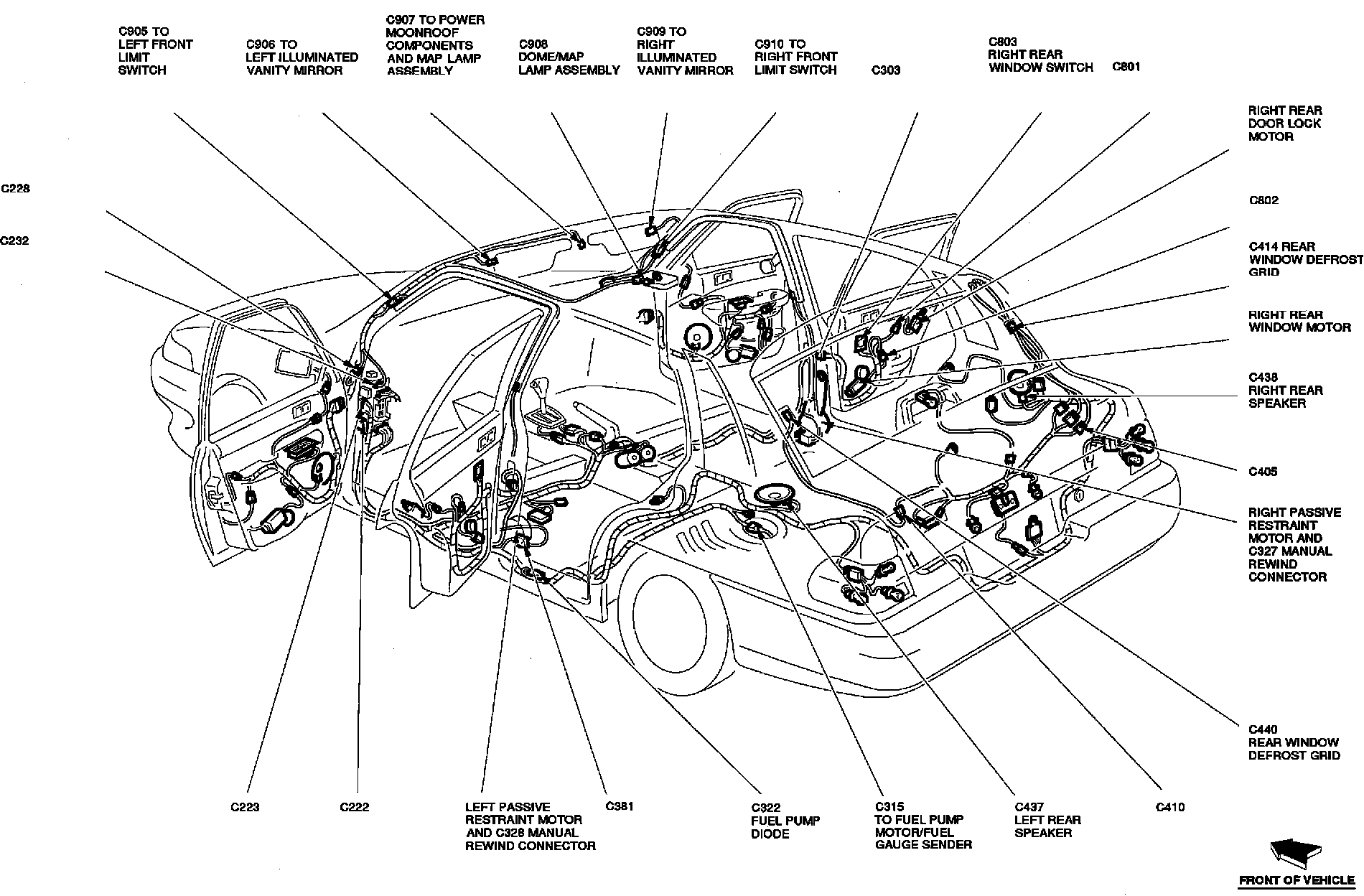

Full Body View:







STATION WAGON

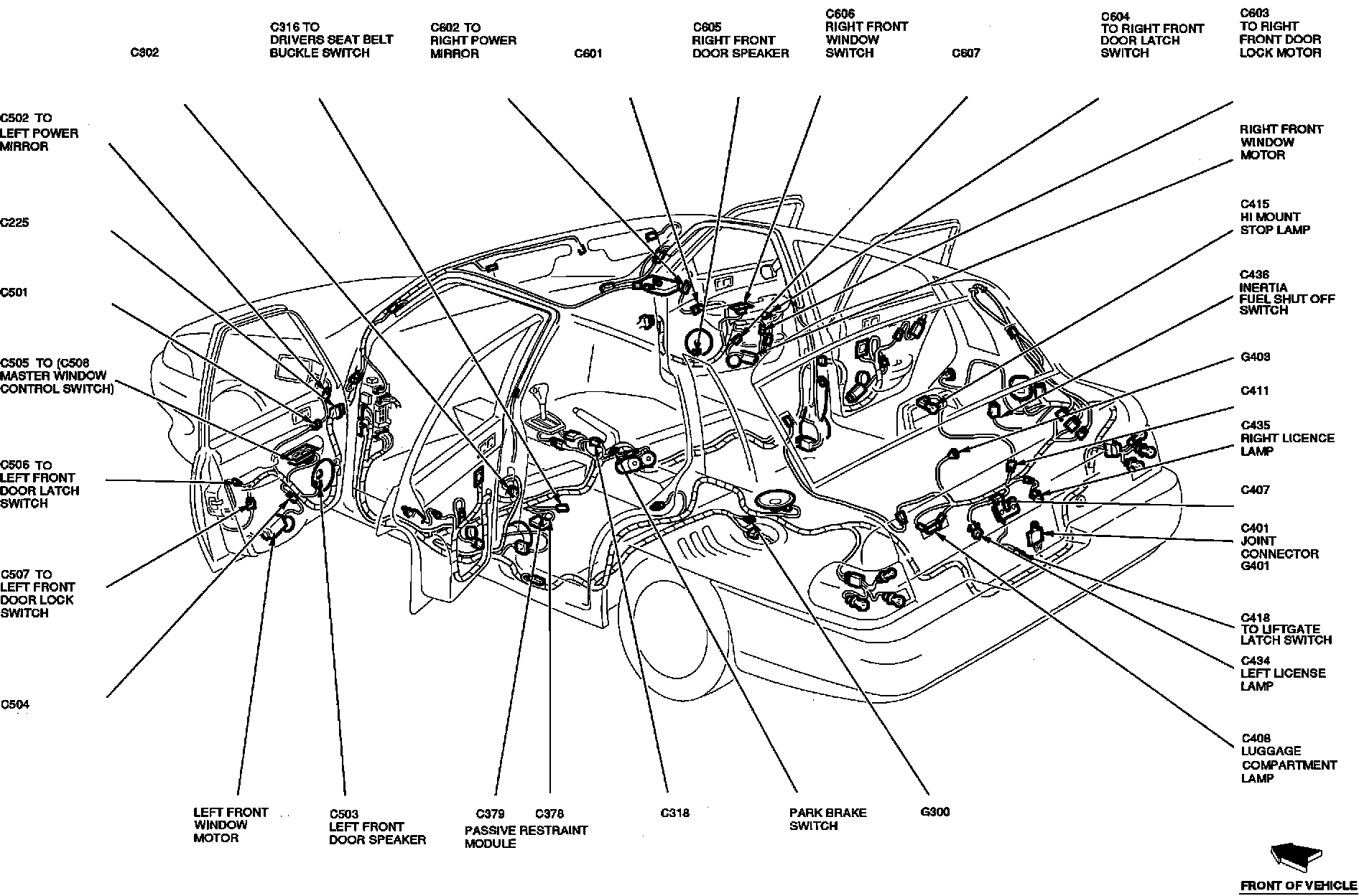

Full Body View:

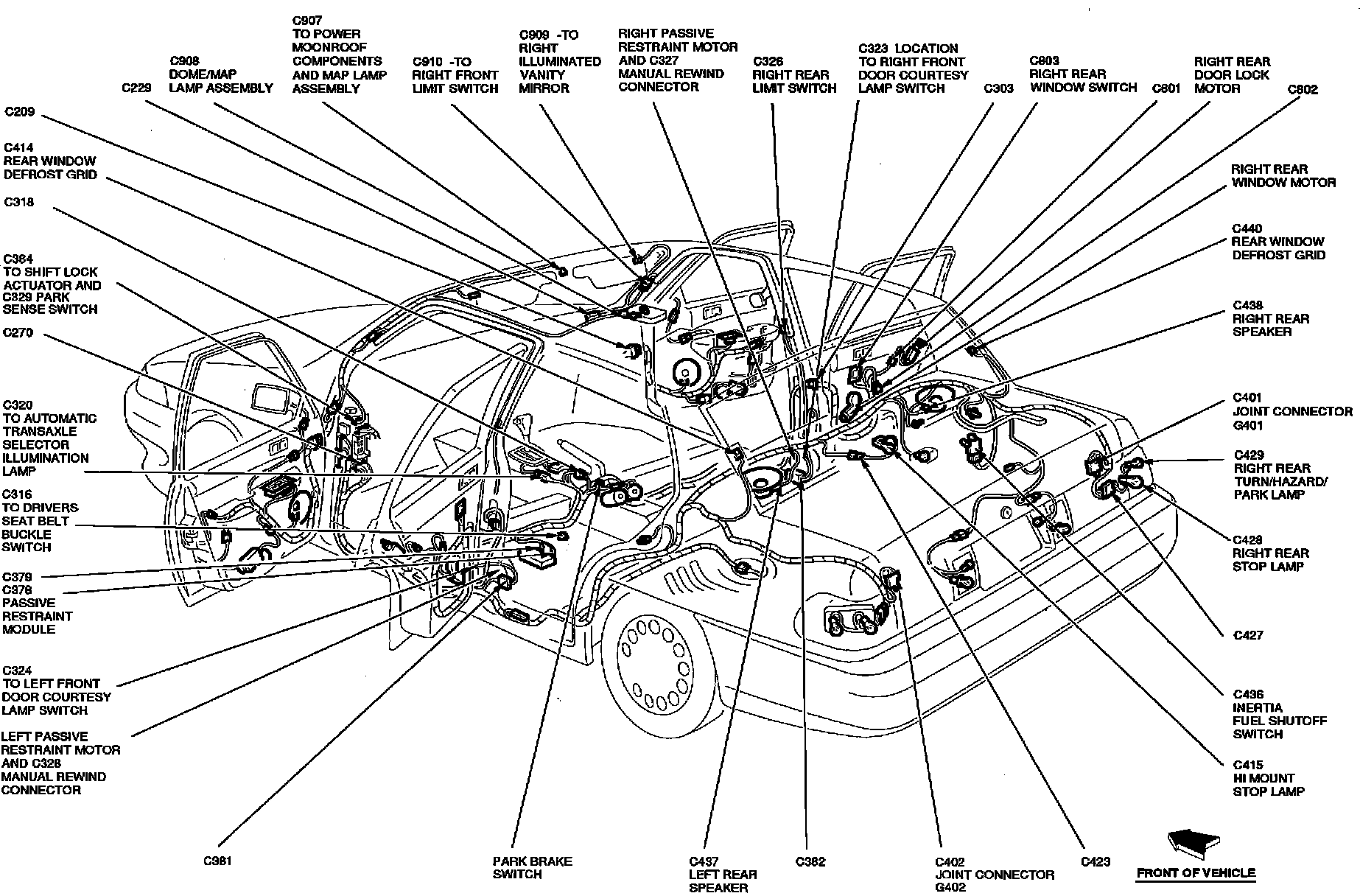

Full Body View:







HATCHBACK

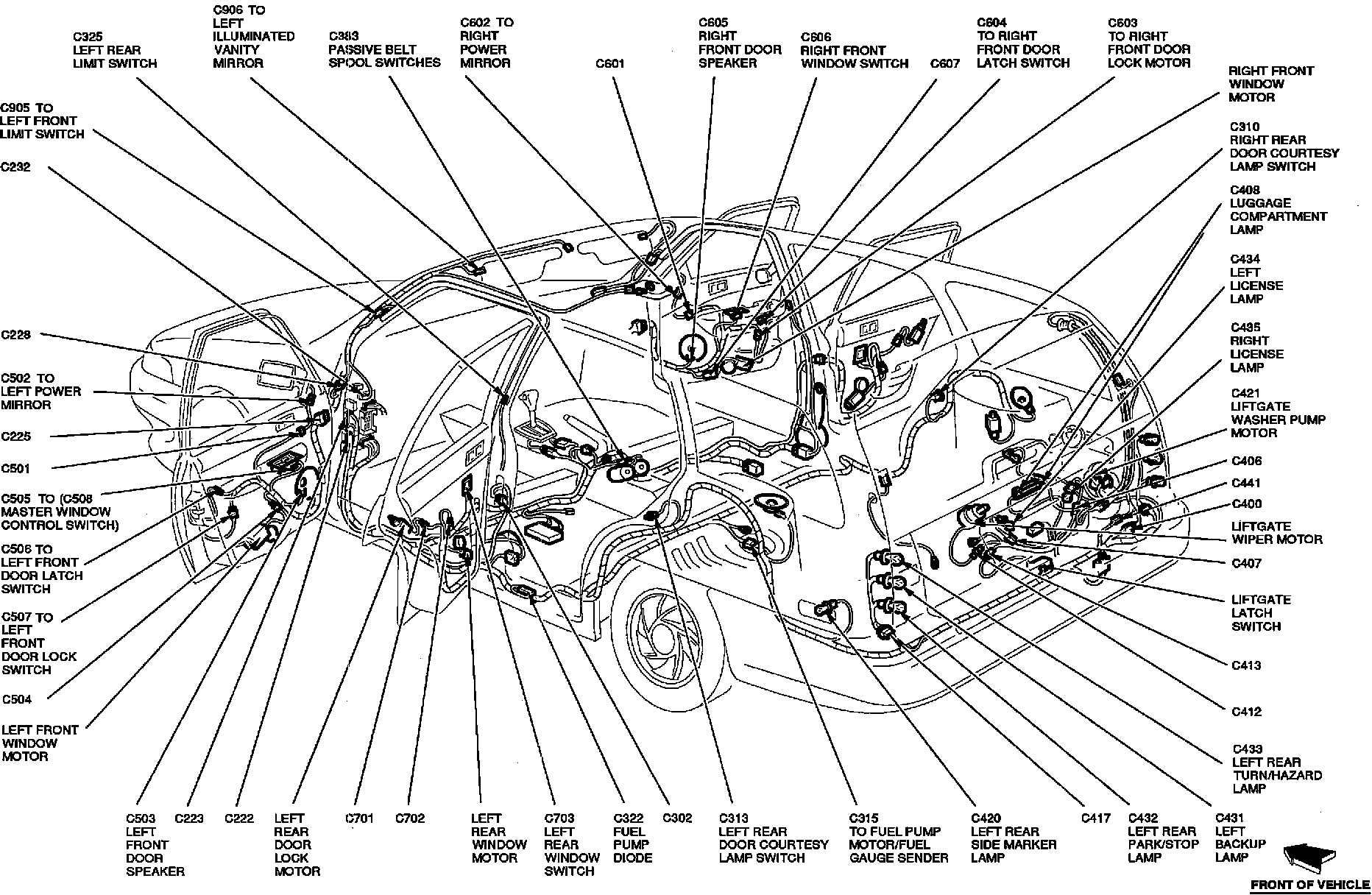

Full Body View:

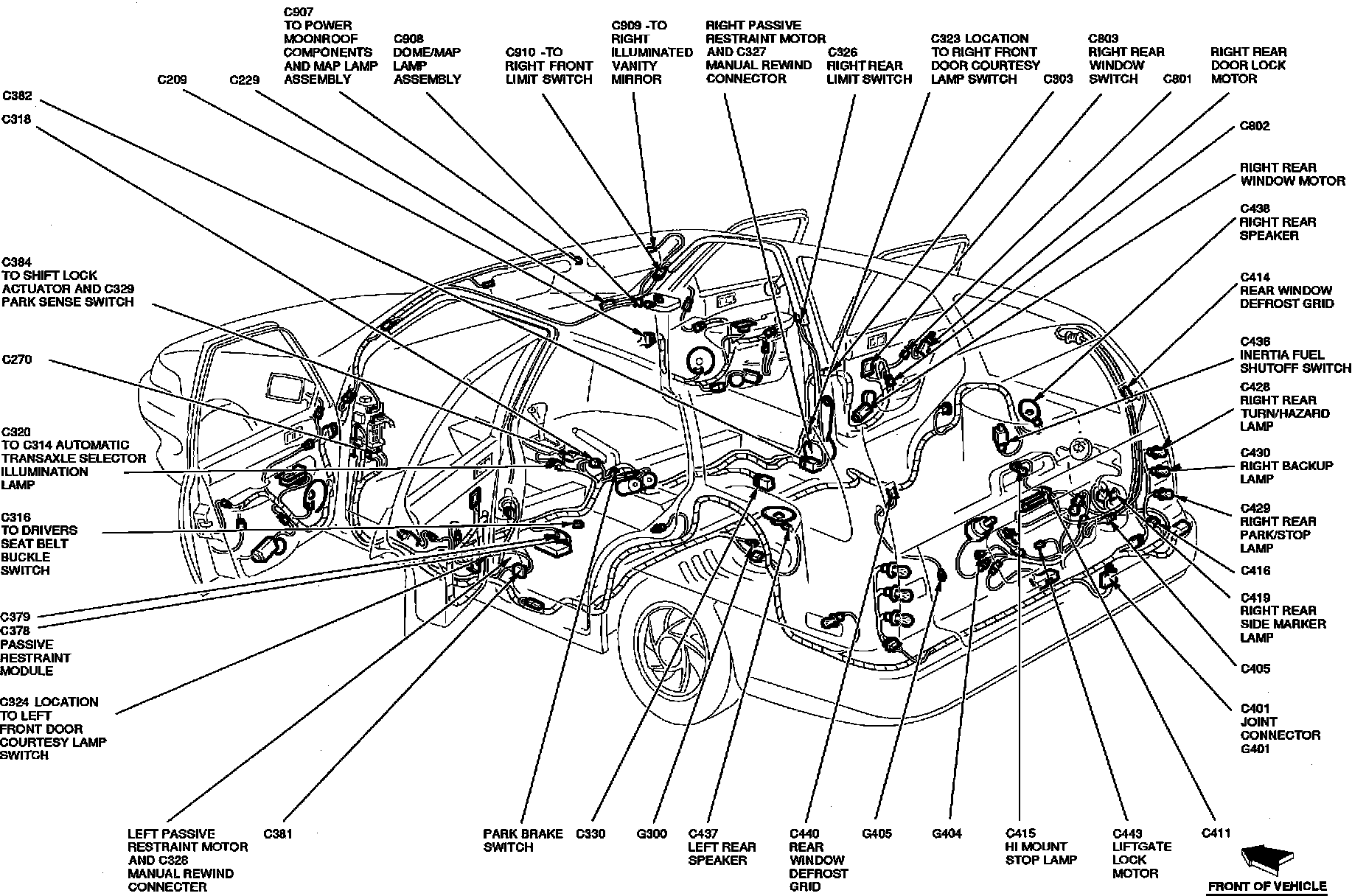

Full Body View:

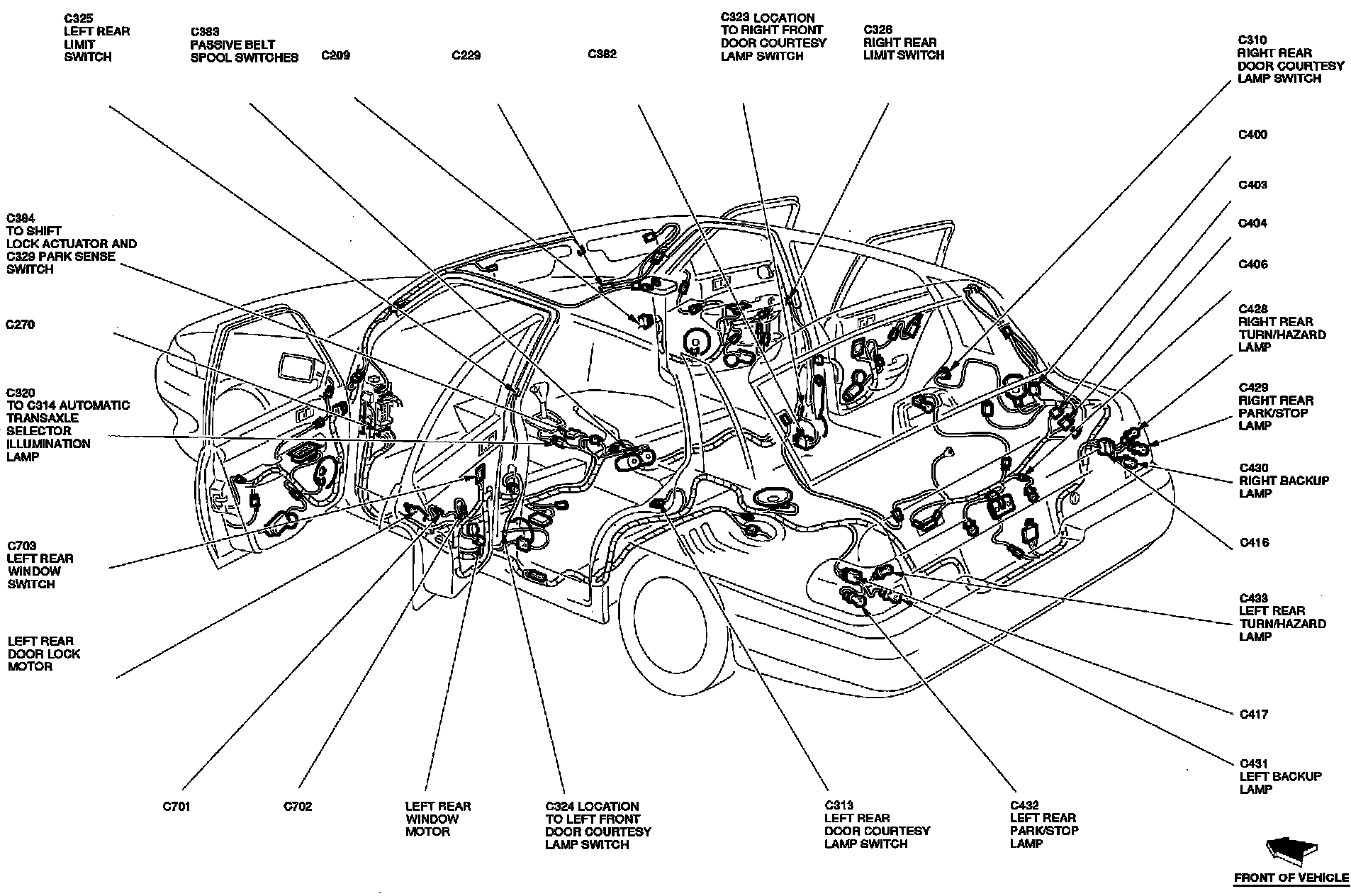

Full Body View:
