FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1993
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
PC - Spark Timing Check - EDIS
>>
PC4 - Check Spout Circuit For Short to VREF, Ground and PIP

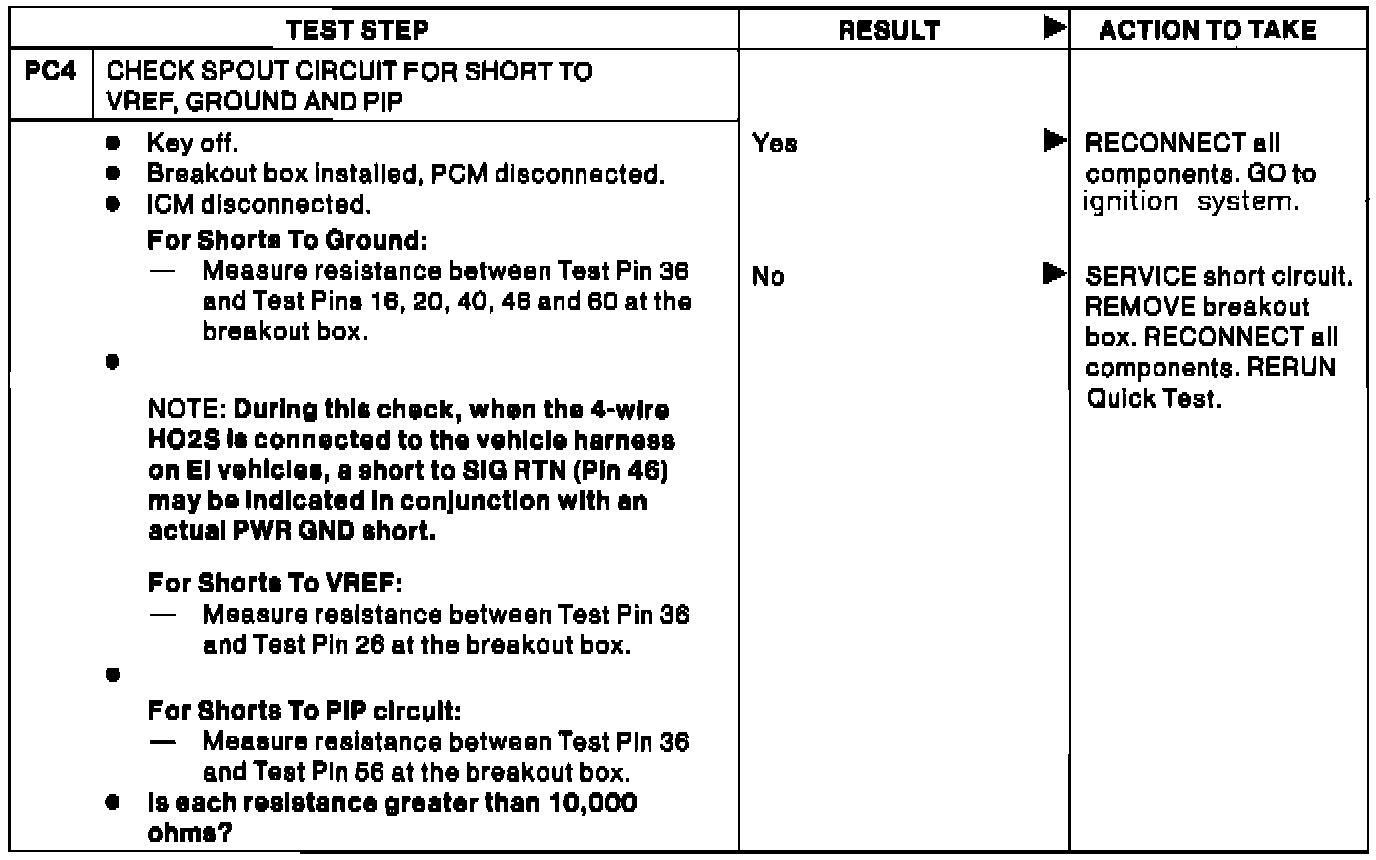

PC4 - Check Spout Circuit For Short to VREF, Ground and PIP
Pinpoint Test PC4:
