Home >> Mercury >> 1993 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> NC - EDIS Ignition Diagnostic Monitor >> NC10 - Check Processor and Harness Connectors

NC10 - Check Processor and Harness Connectors

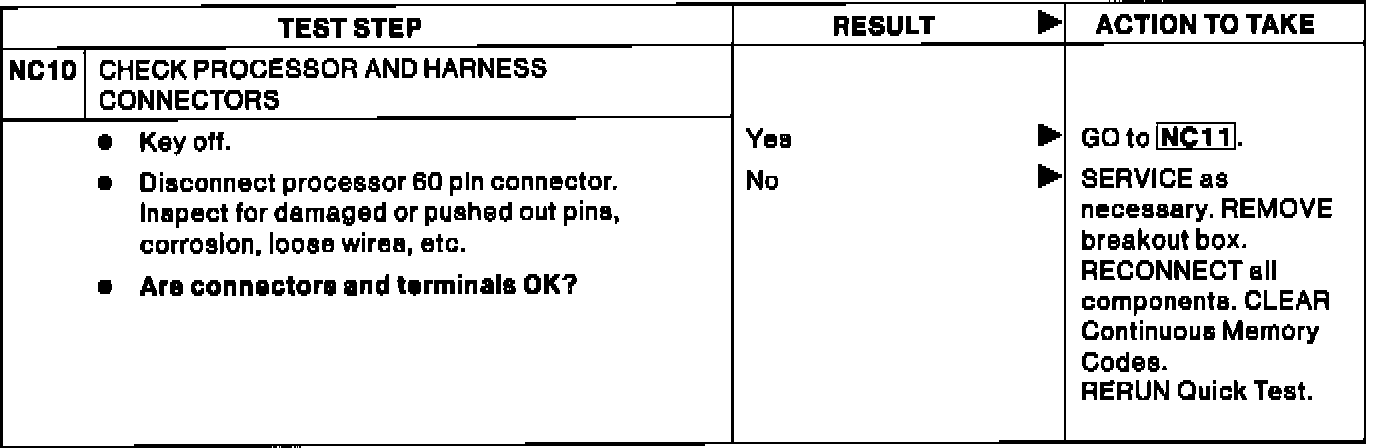

Pinpoint Test NC10:
