FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1993
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KF - Electro Drive Fan (EDF)/High Electro Drive Fan (HEDF)
>>

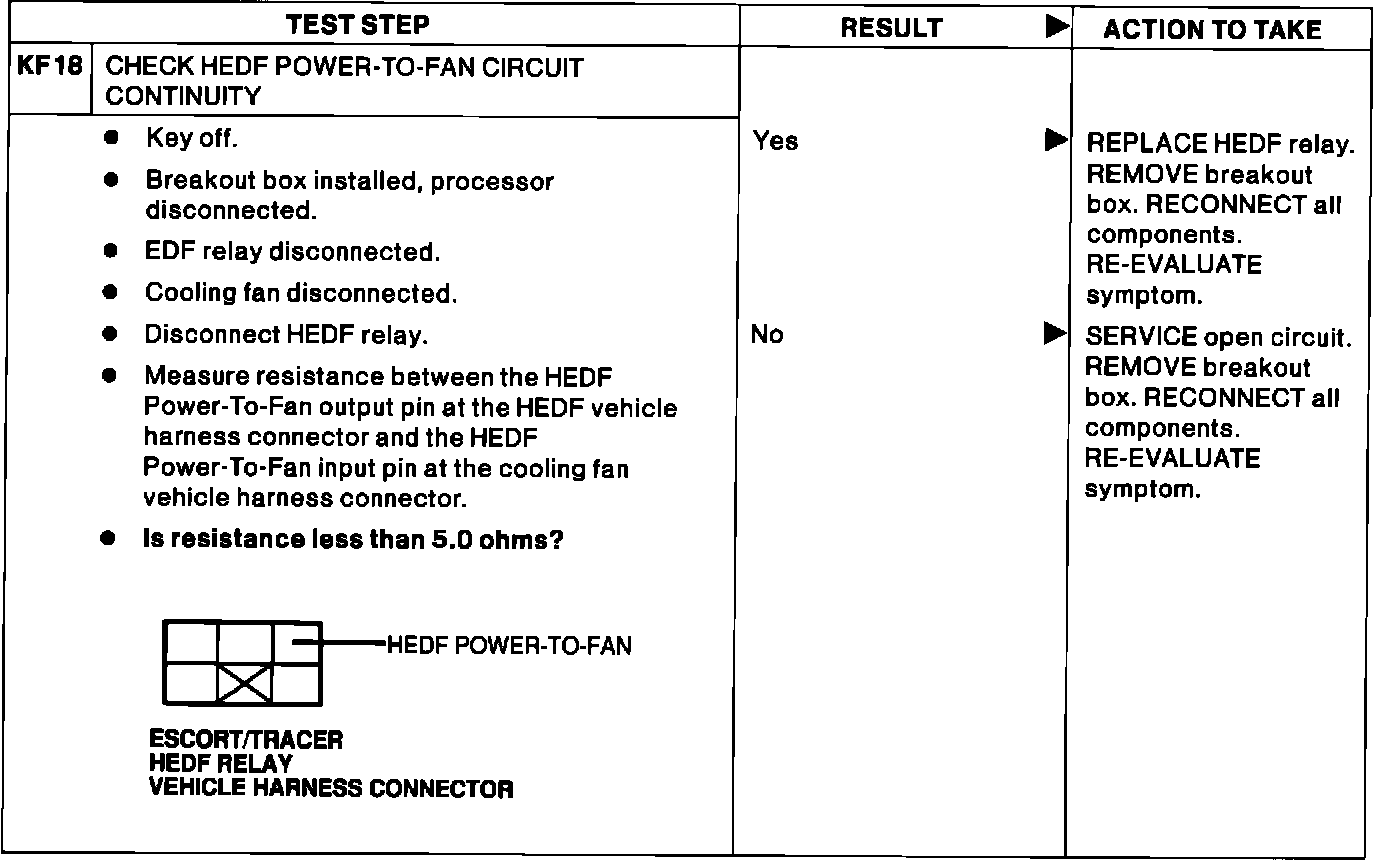

KF18 - Check HEDF Power-to-Fan Circuit Continuity
KF18 - Check HEDF Power-to-Fan Circuit Continuity
Pinpoint Test KF18:
