Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KF - Electro Drive Fan (EDF)/High Electro Drive Fan (HEDF)
>>
KF1 - Service Code 563 or 564
KF1 - Service Code 563 or 564

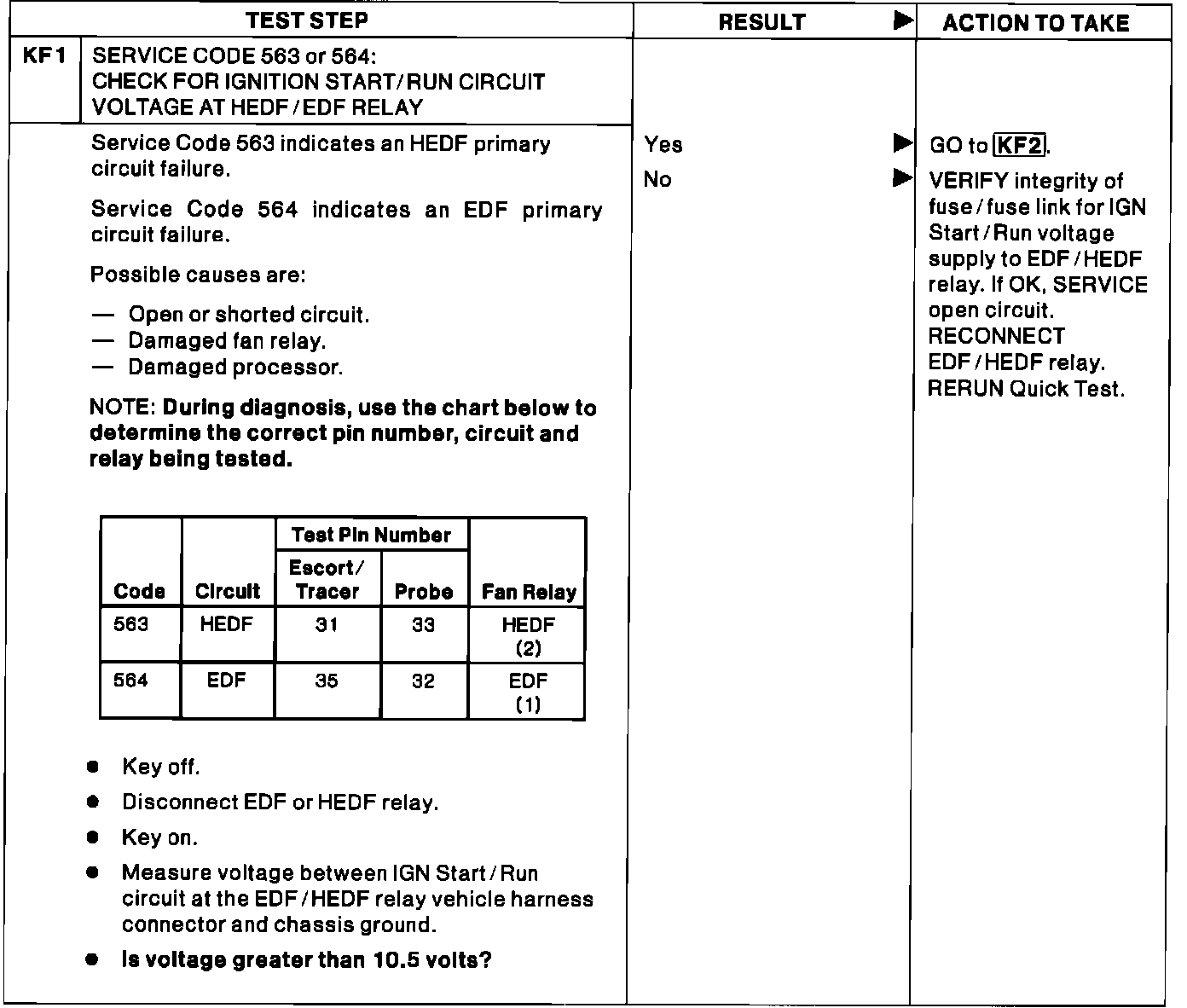

Pinpoint Test KF1:
