AC - EEC-IV No Start (Electronic Ignition-High Data Rate)
>>

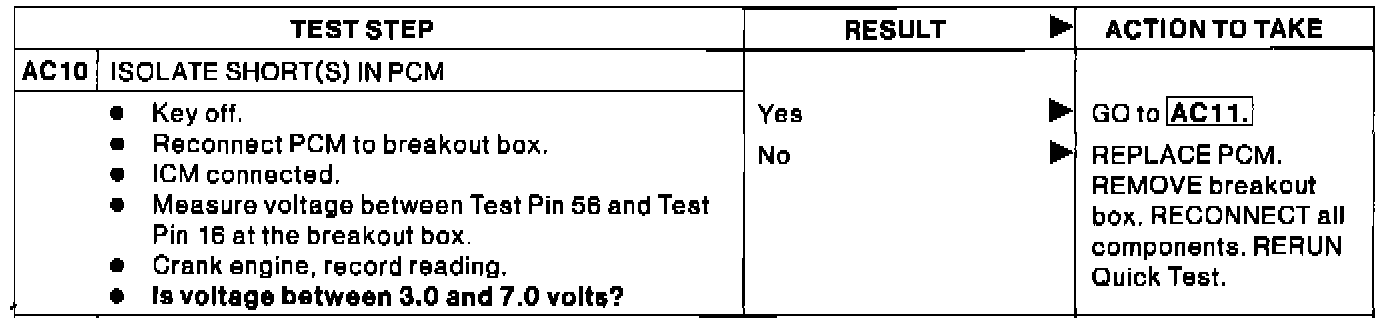

AC10 - Isolate Shorts In PCM
AC10 - Isolate Shorts In PCM
Pinpoint Test AC10:
