Symptom Chart and Pinpoint Tests

Symptom Chart:

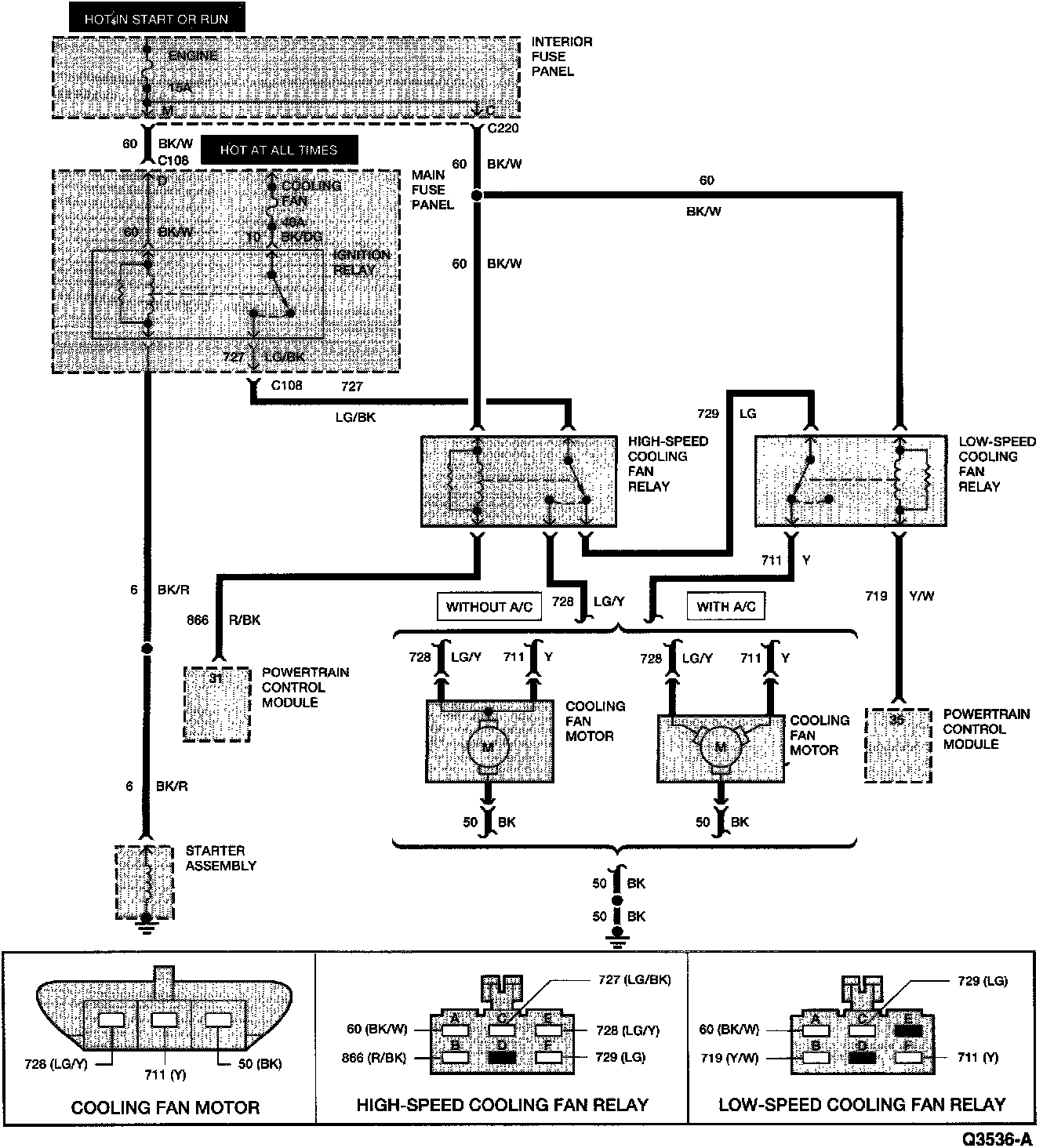

Electrical Schematic - Engine Cooling Fan (1.9L):





Component Locations:





Pinpoint Tests EC1 - EC2:





Pinpoint Tests EC3 - EC4:





Pinpoint Tests EC5 - EC7:





Pinpoint Tests EC8 - EC10:
