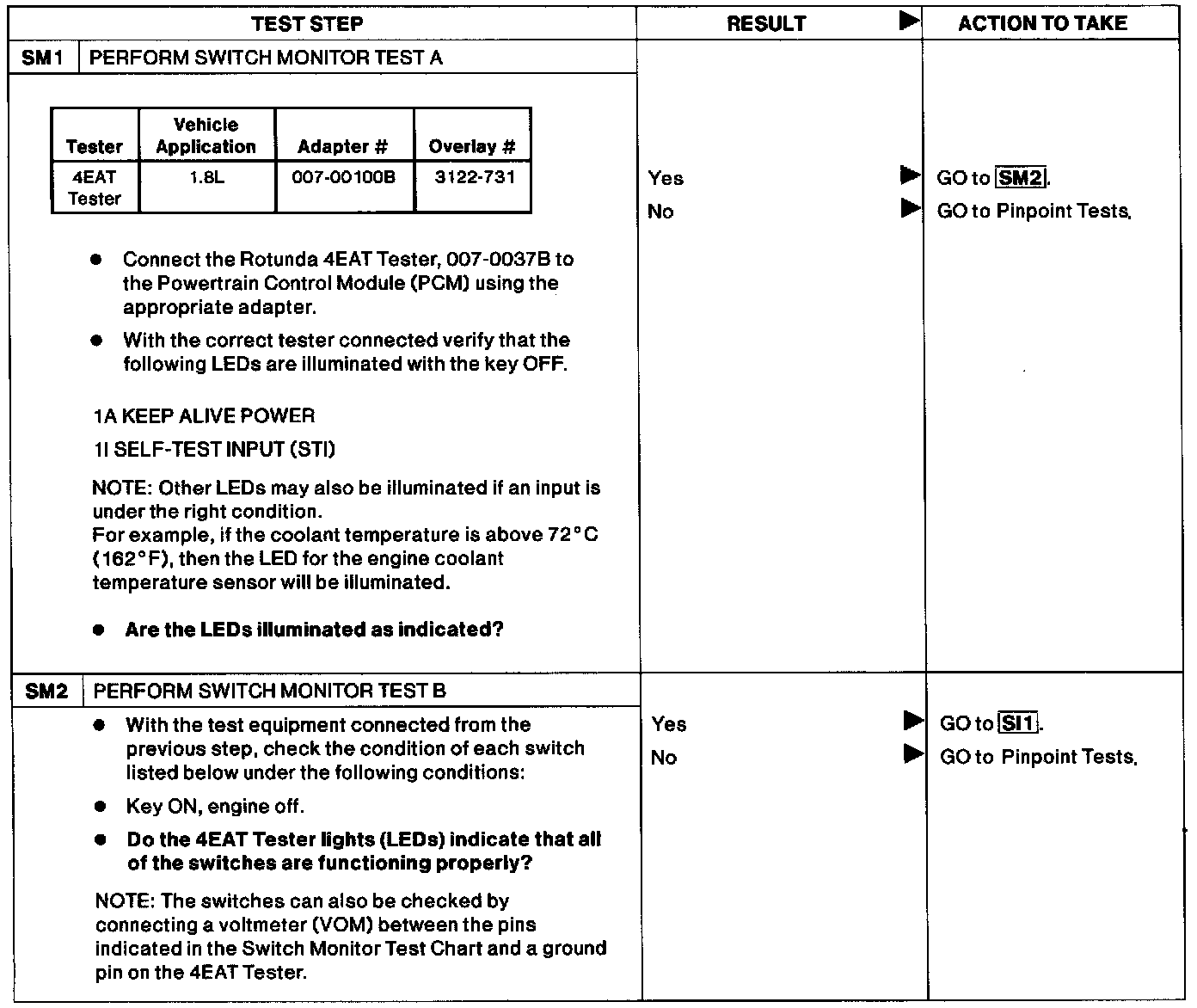

SM1-SM2

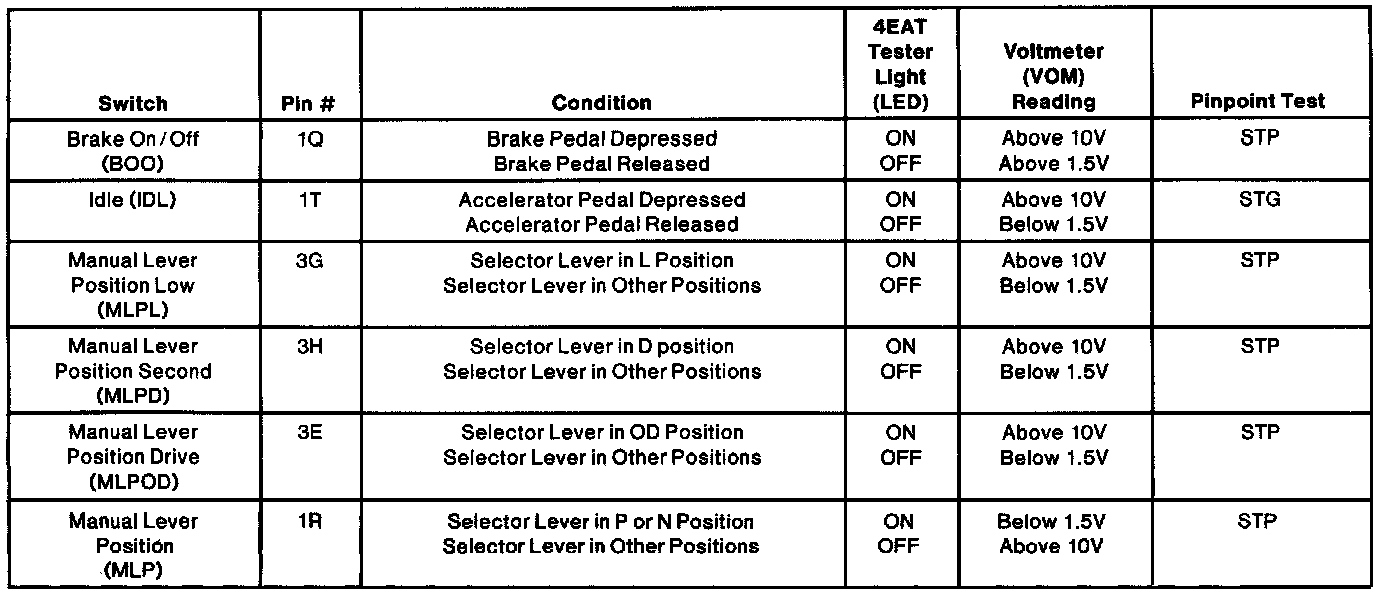

Switch Monitor Test Chart.:

NOTE: Any 4EAT diagnostic trouble codes will be erased when the PCM is disconnected from the vehicle wiring harness. Perform the Quick Test before performing the Switch Monitor Test.
