Initial Inspection and Diagnostic Overview

1. Visually inspect the components of the system.

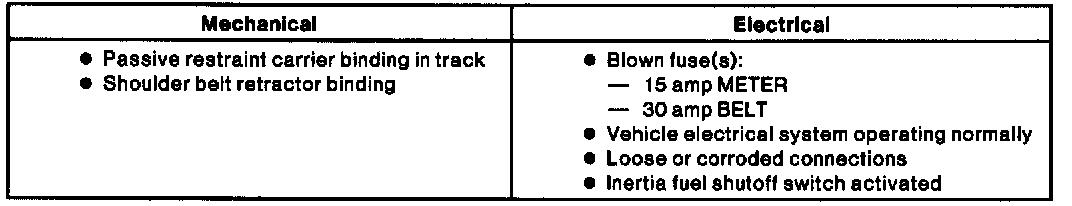

VISUAL INSPECTION CHART






2. If the passive restraint carrier will not return to the A-pillar, verify that the inertia fuel shutoff switch has not been activated.
3. Check the wiring harness and connectors for signs of obvious damage.
4. If the problem is not visually evident, determine the symptom observed and proceed to the symptom chart. Symptom Related Diagnostic Procedures
