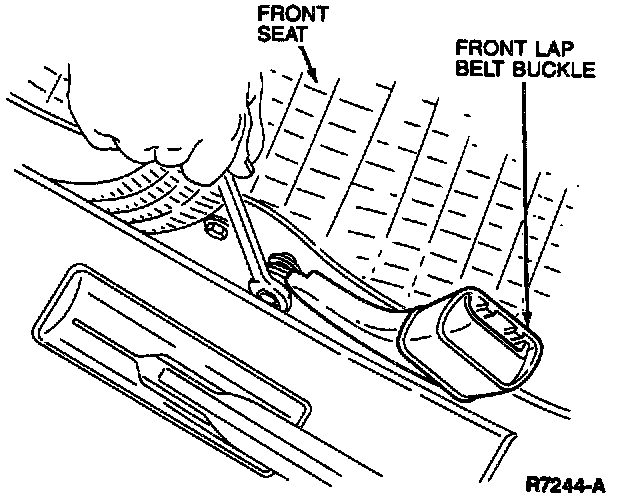

Front Lap Belt Buckle

REMOVAL






1. Remove the front lap belt buckle bolt.
2. Disconnect the warning chime electrical connector (driver's side only).
3. Remove the front lap belt buckle.

INSTALLATION
1. To install, reverse the removal procedure.
2. Tighten the front lap belt buckle bolt to 38-78 Nm (28-58 ft lbs).
