Seat Belt Control Module: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

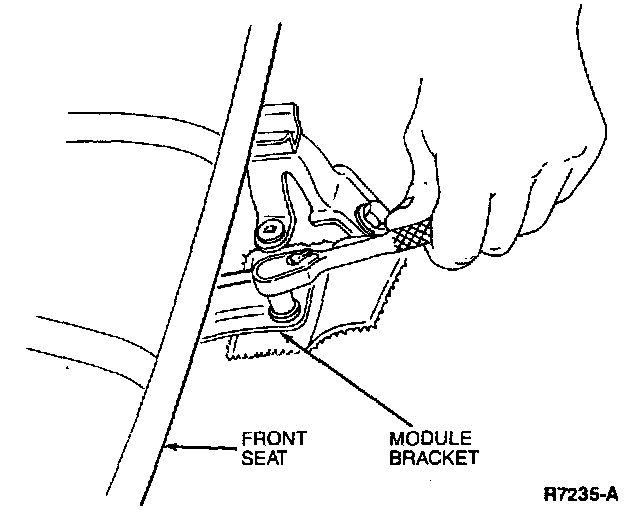

2. Remove the two mounting bolts from the module bracket.

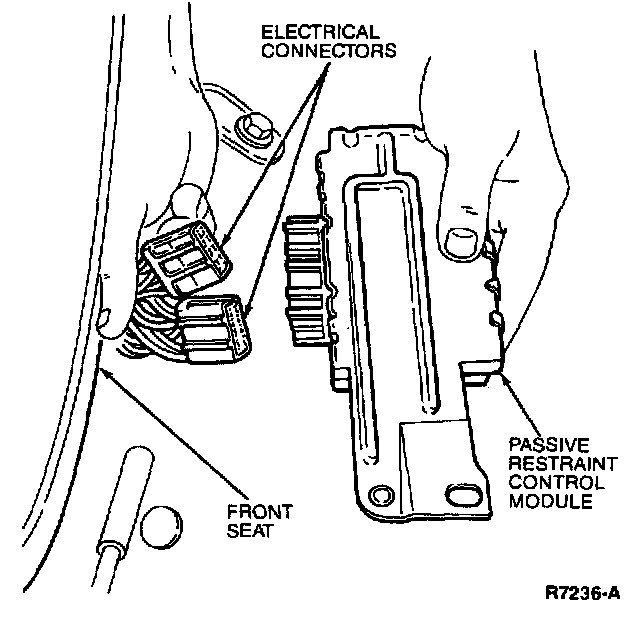

3. Disconnect the two electrical connectors from the passive restraint control module and remove the module.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the passive restraint system for proper operation.
