Seat Belt Control Module: Locations

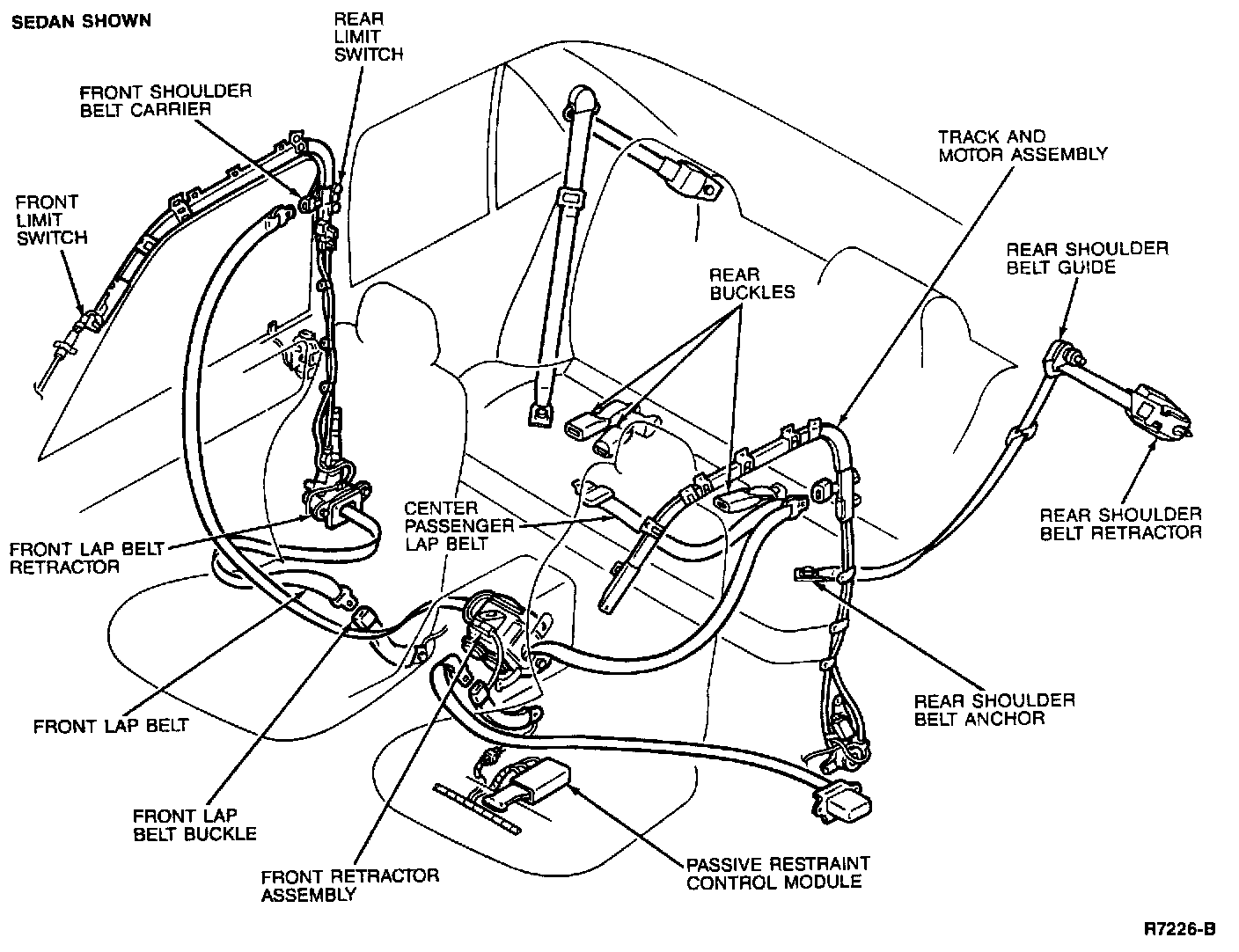

The passive restraint system control module is mounted under the driver's seat.
