Home >> Mercury >> 1993 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> IA - Inlet Air Control System >> IA10 - Shutter Valve Function

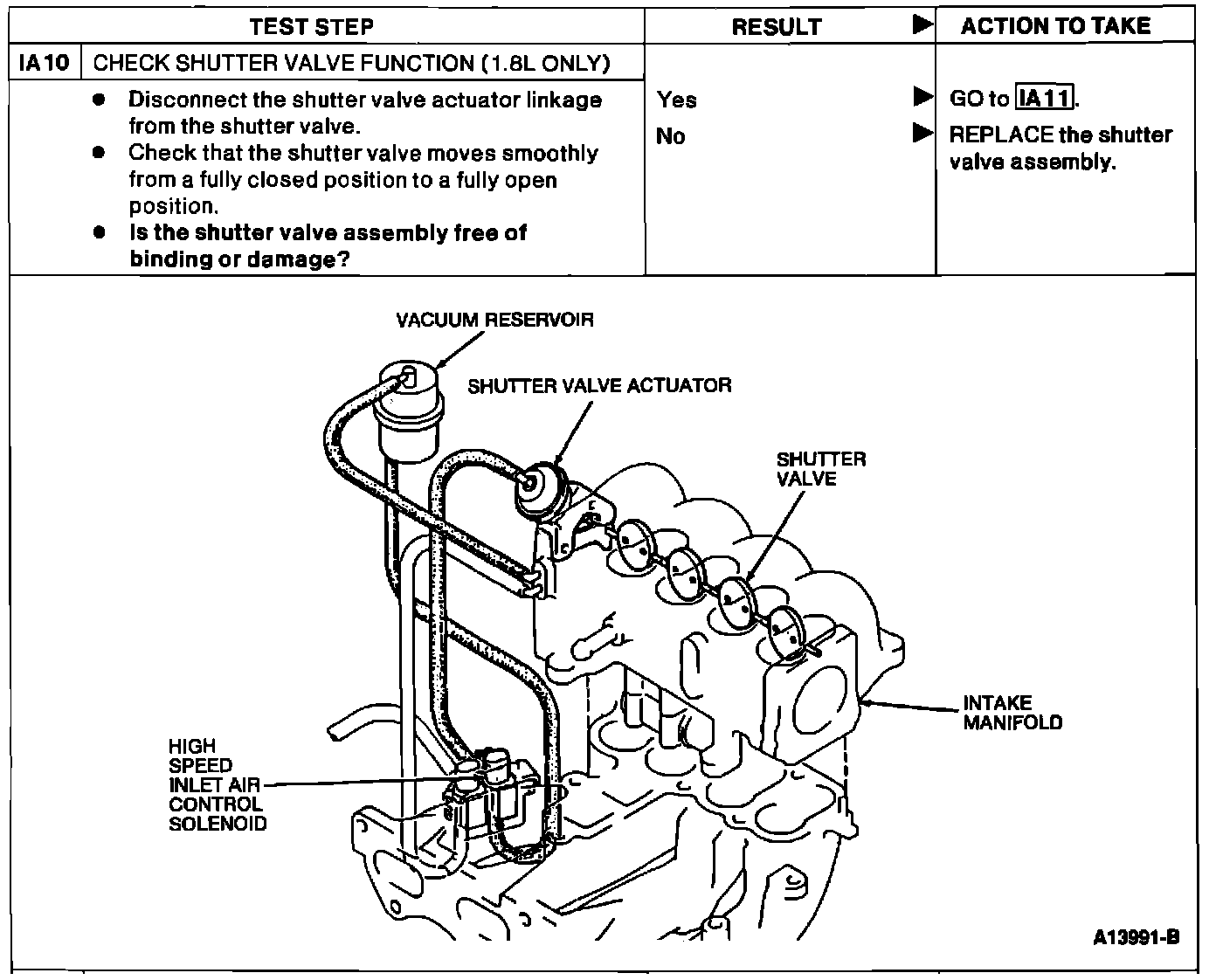

IA10 - Shutter Valve Function

Pinpoint Test IA10:
