Home >> Mercury >> 1993 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> CKP - Crankshaft Position Sensor >> CKP1 - VPWR to Distributor

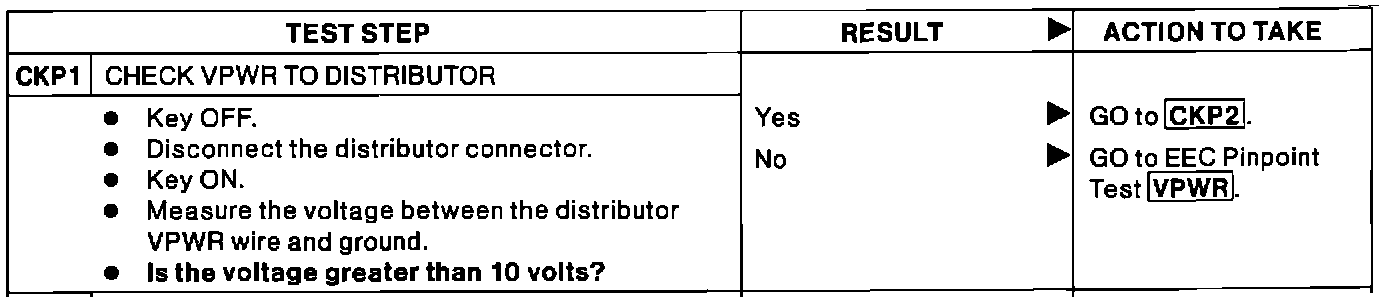

CKP1 - VPWR to Distributor

Pinpoint Test CKP1:
