Engine Views

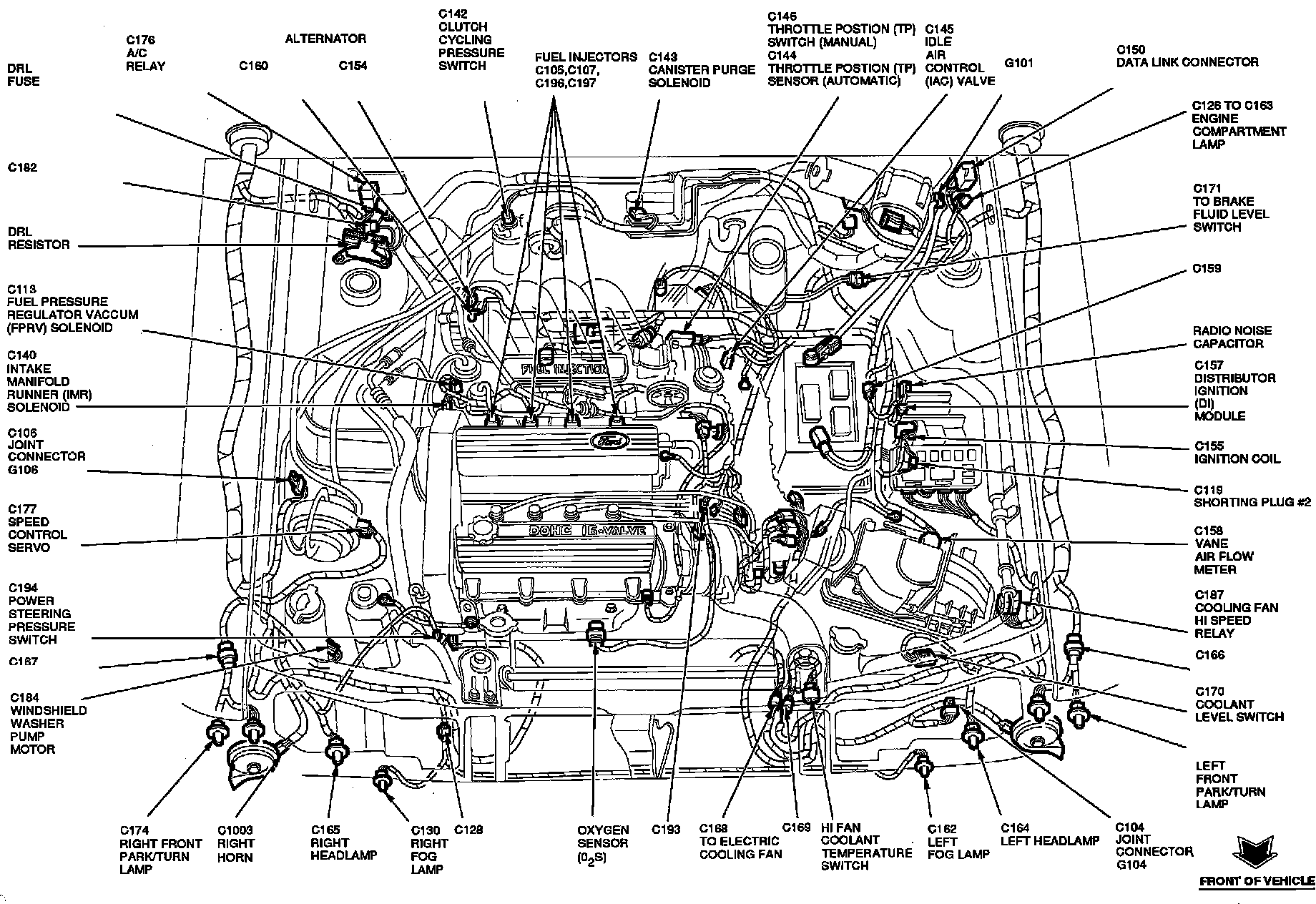

Engine View:

A/C RELAY
ALTERNATOR
BRAKE FLUID LEVEL SWITCH
CANISTER PURGE SOLENOID RESISTOR
CLUTCH CYCLING PRESSURE SWITCH
COOLANT LEVEL SWITCH
COOLING FAN HI SPEED RELAY
DATA LINK CONNECTOR
DISTRIBUTOR
ELECTRIC COOLING FAN
ENGINE COMPARTMENT LAMP
FUEL INJECTORS
FUEL PRESSURE REGULATOR VACUUM (FPRV) SOLENOID
HI FAN COOLANT TEMPERATURE SWITCH
IDLE AIR CONTROL (IAC) VALVE
IGNITION COIL
IGNITION MODULE
INTAKE MANIFOLD RUNNER (IMR) SOLENOID
JOINT CONNECTOR
LEFT FOG LAMP
LEFT FRONT PARKLAMP
LEFT HEADLAMP
OXYGEN SENSOR (02S)
POWER STEERING PRESSURE SWITCH
RADIO NOISE CAPACITOR
RIGHT FOG LAMP
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
RIGHT HORN
SPEED CONTROL SERVO
THROTTLE POSITION (TP) SENSOR (AUTOMATIC)
THROTTLE POSITION (TP) SWITCH (MANUAL)
VANE FLOW METER SHORTING PLUG
WINDSHIELD WASHER PUMP MOTOR

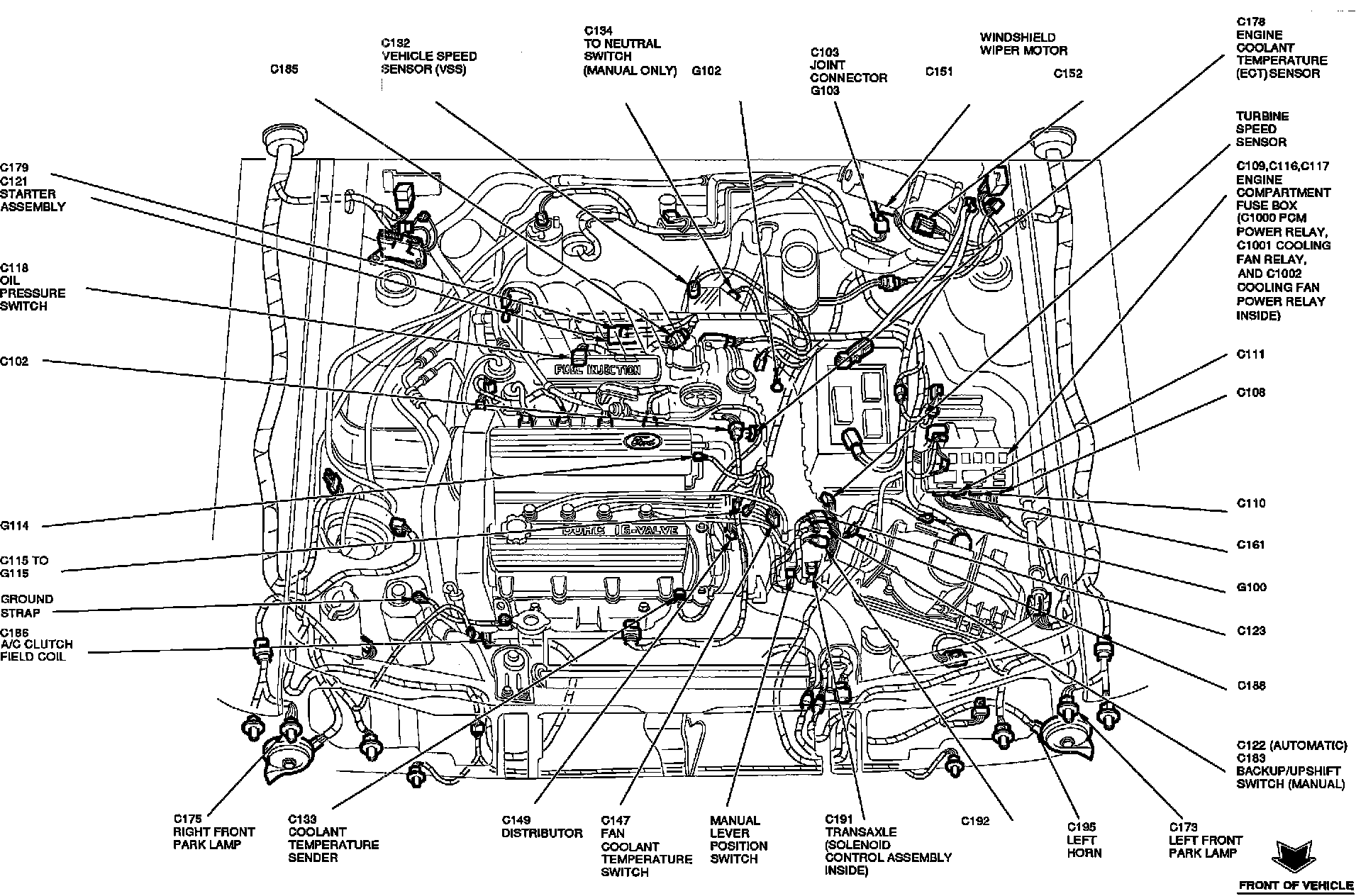

Engine View:

A/C CLUTCH FIELD COIL
COOLANT TEMPERATURE SENDER
DISTRIBUTOR
FAN COOLANT TEMPERATURE SWITCH
GROUND STRAP
LEFT FRONT PARK LAMP
LEFT HORN
MANUAL LEVER POSITION SWITCH
OIL PRESSURE SWITCH
RIGHT FRONT PARK LAMP
STARTER ASSEMBLY
TRANSAXLE (SOLENOID CONTROL ASSEMBLY INSIDE)
