Home >> Mercury >> 1993 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagrams >> Part 1 of 2

Part 1 of 2

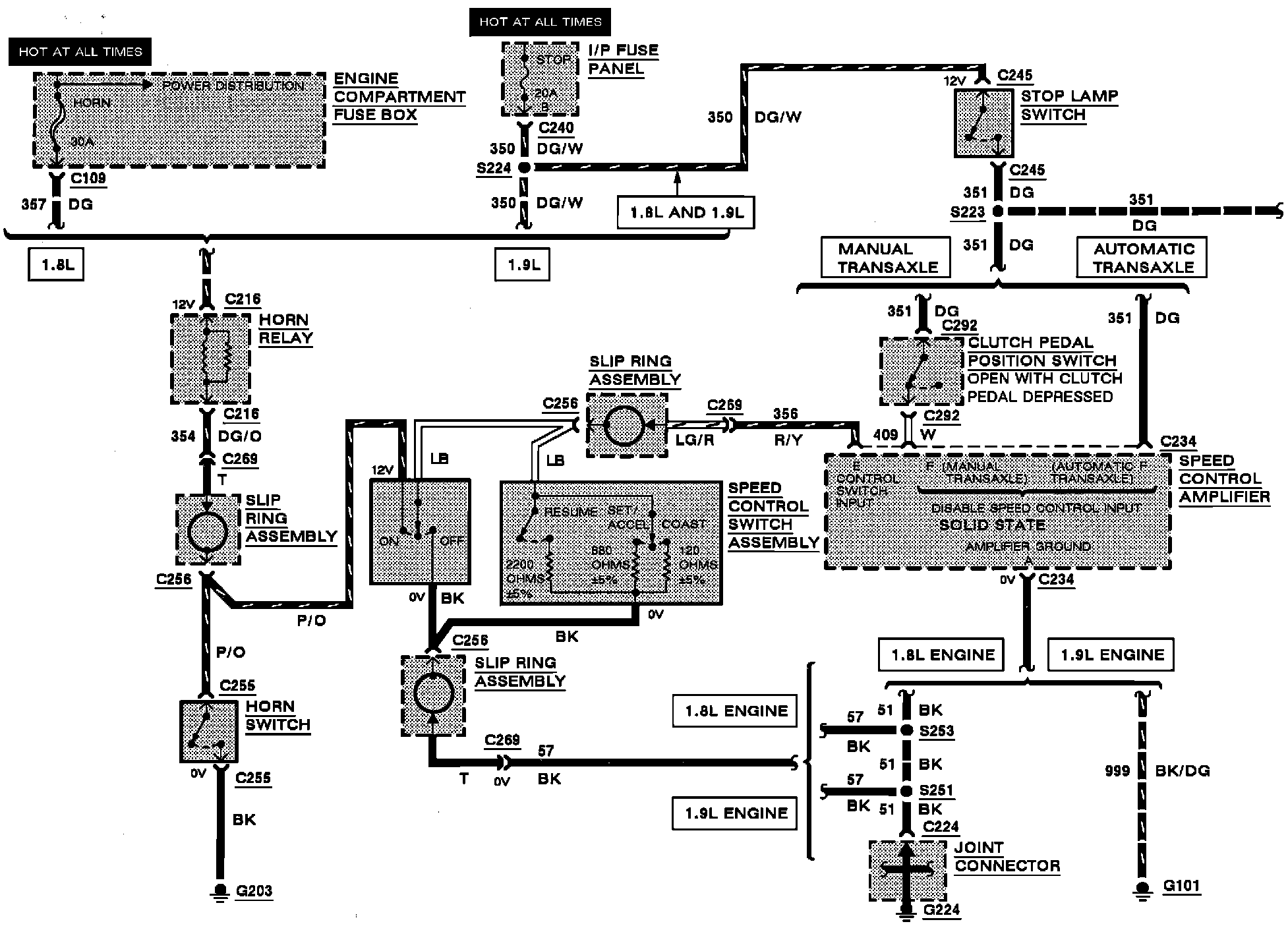

Speed Control:



Horn/Cigar Lighter:
