Home >> Mercury >> 1993 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> E1 - E5

E1 - E5

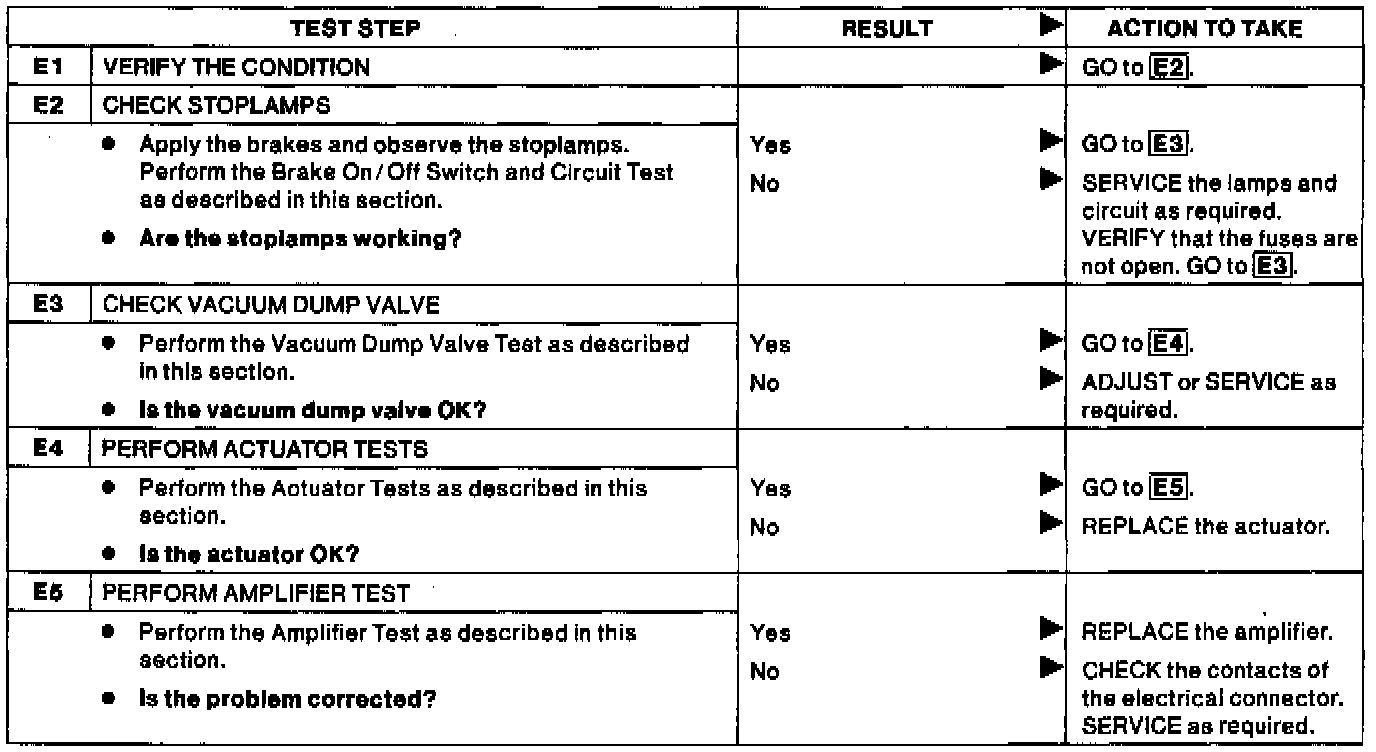

Fig. 14 Pinpoint Test E, Speed Control Does Not Disengage When Brakes Are Applied. Escort/Tracer:
